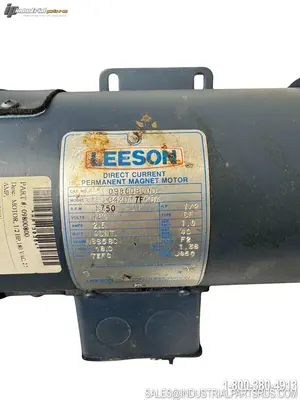

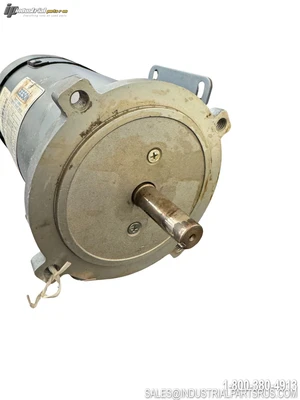

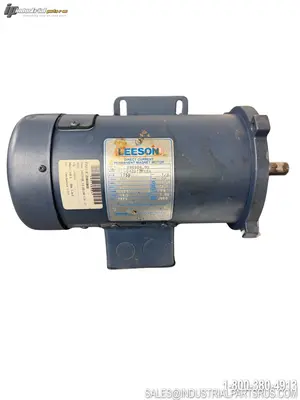

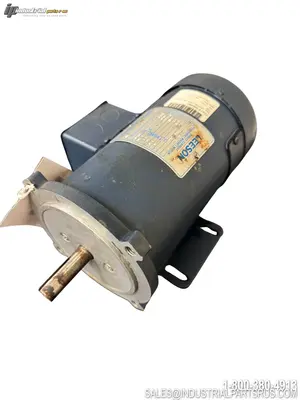

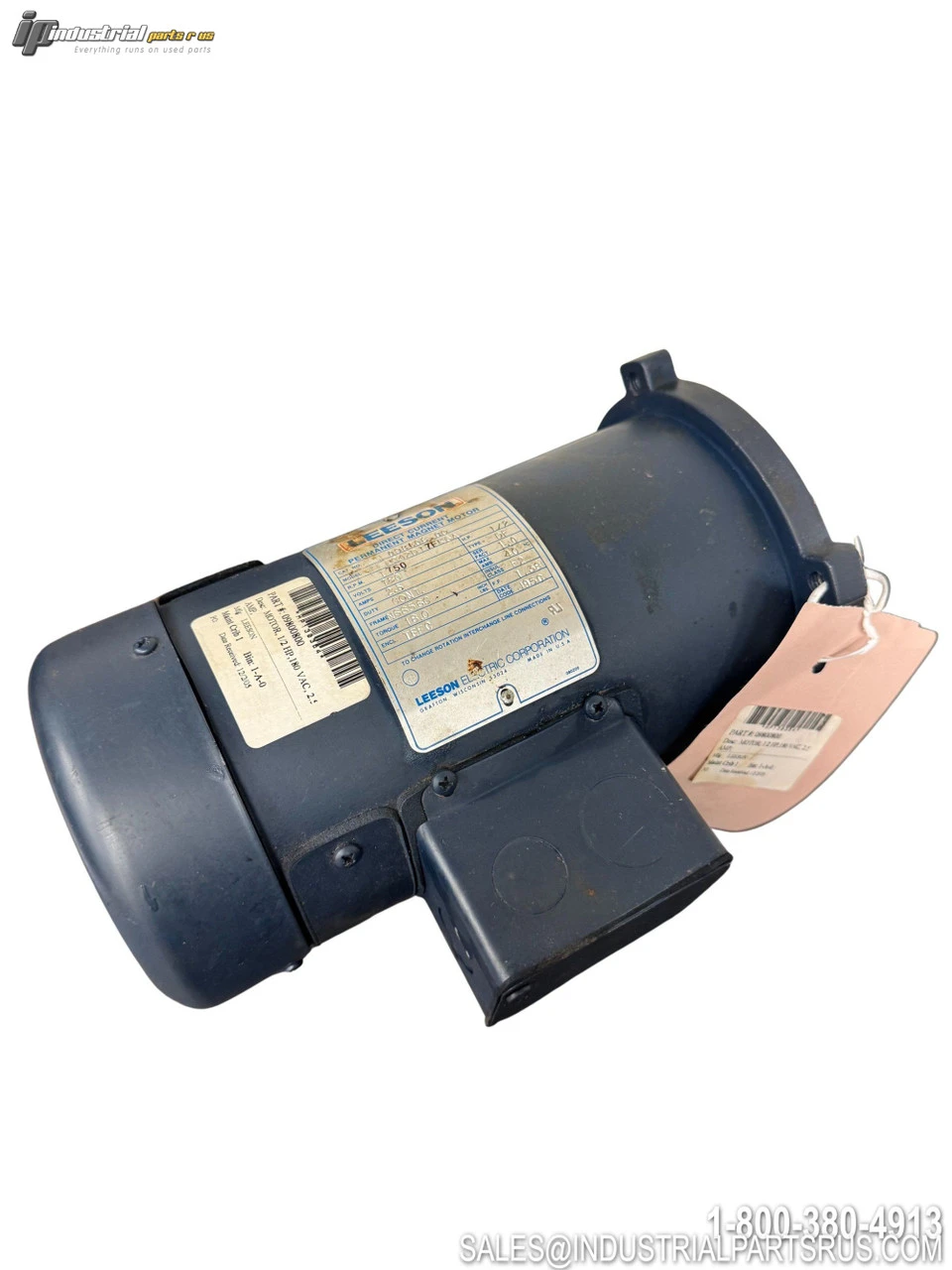

USED LEESON 09800.800

The Leeson 09800800 (098008.00) is a C-Face SCR-Rated Permanent Magnet DC (PMDC) Motor designed for applications requiring adjustable speed, constant torque throughout the speed range, and reversing capability. It features a TEFC (Totally Enclosed Fan Cooled) enclosure rated IP54 (dust and splash protected), an NSS56C NEMA frame, and a removable bolt-on steel base. Typical applications include pumps, conveyors, turntables, textile machinery, treadmills, reeling equipment, sports equipment, and medical equipment.
Specification
Value
Brand
Leeson
Model / Part Number
09800800 (098008.00)
Motor Type
Permanent Magnet DC (PMDC), SCR Rated
Horsepower
1/2 HP
Speed (RPM)
1750 RPM
Voltage
180 VDC
Full Load Amps
2.5 A
Phase
DC
Frame
NSS56C
Enclosure Type
TEFC (Totally Enclosed Fan Cooled)
Mounting Type
C-Face with Removable Base
Shaft Diameter
5/8 in (0.625 in)
Shaft Length
2.06 in
Shaft Type
Keyed
Service Factor
1.0
Insulation Class
Class F
Max Ambient Temperature
40°C
Torque
197 in-lb
Speed Range (Constant Torque)
30:1
Rotation
Reversible
Bearing Type
Permanently Lubricated Sealed Ball Bearings
Housing / Endshield Material
Die Cast Aluminum Endshields with Cast Iron Bearing Inserts
Base Material
Heavy-Duty Stamped Rolled Steel (Removable)
Overall Length
11.81 in
Width
6.5 in
Height
6.32 in
Duty
Continuous
Input Power (with SCR Control)
115 or 230 VAC rectified
Manufacturer
Leeson Electric (Regal Rexnord)
We warranty all items for 30 days from date of purchase.
