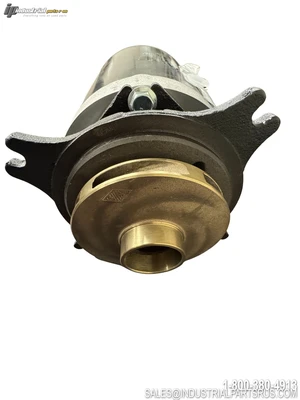

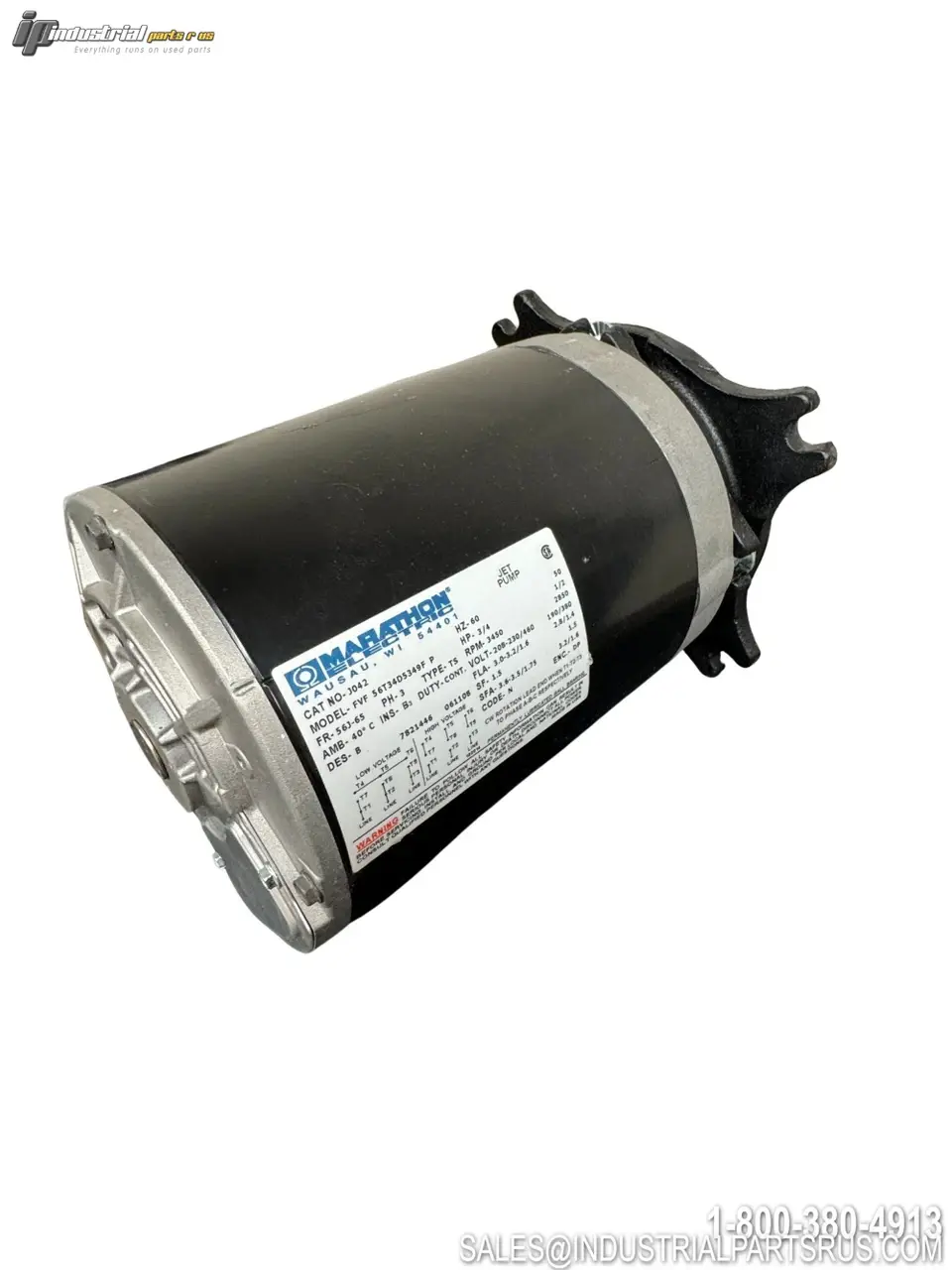

NEW MARATHON FVF-56T34D5349F

The Marathon FVF-56T34D5349F is a 3/4 HP, three-phase AC jet pump motor designed for continuous-duty pump applications. It features an Open Drip Proof (ODP) enclosure with a NEMA 56J frame, a 416 stainless steel threaded shaft suited for direct-drive jet pump installations, and double-sealed ball bearings mechanically locked on the shaft end. This motor is part of Marathon Electric's J042 catalog series and is suitable for industrial, commercial, centrifugal, and hydraulic pump applications. The motor is reversible and rated IP23, offering protection against vertically falling water droplets.
Specification
Value
Brand
Marathon Electric
Model / Part Number
FVF-56T34D5349F
Catalog Number
J042
Base Model
056T34D5349
Horsepower
3/4 HP (0.75 HP)
Phase
3-Phase
Voltage
208-230/460 VAC (60 Hz) / 190/380 V (50 Hz)
Full Load Amps
3.2–3.0 / 1.60 A
Nameplate RPM
3450 RPM (3600 synchronous)
Frequency
60/50 Hz
NEMA Frame
56J
Enclosure Type
ODP (Open Drip Proof)
Motor Type
Three-Phase Squirrel Cage Induction
Application
Jet Pump / Centrifugal Pump
Mounting Type
C-Face with Rigid Base
Shaft Type
416 Stainless Steel Threaded (56J)
Shaft Diameter
5/8 in
Bearing Type
Double-Sealed Ball Bearings
Duty Cycle
Continuous
Service Factor
1.5 (60 Hz)
Insulation Class
Class B
Ambient Temperature
40°C Max
Frame Material
Rolled Steel
NEMA Design
Design B
Current Type
AC
Thermal Protection
None (per date code prefix)
Manufacturer
Marathon Electric (Regal Rexnord)
We warranty all items for 30 days from date of purchase.
