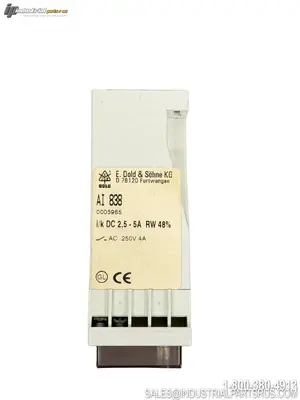

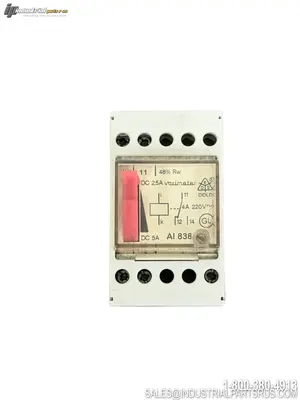

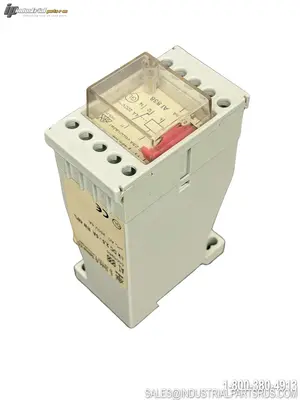

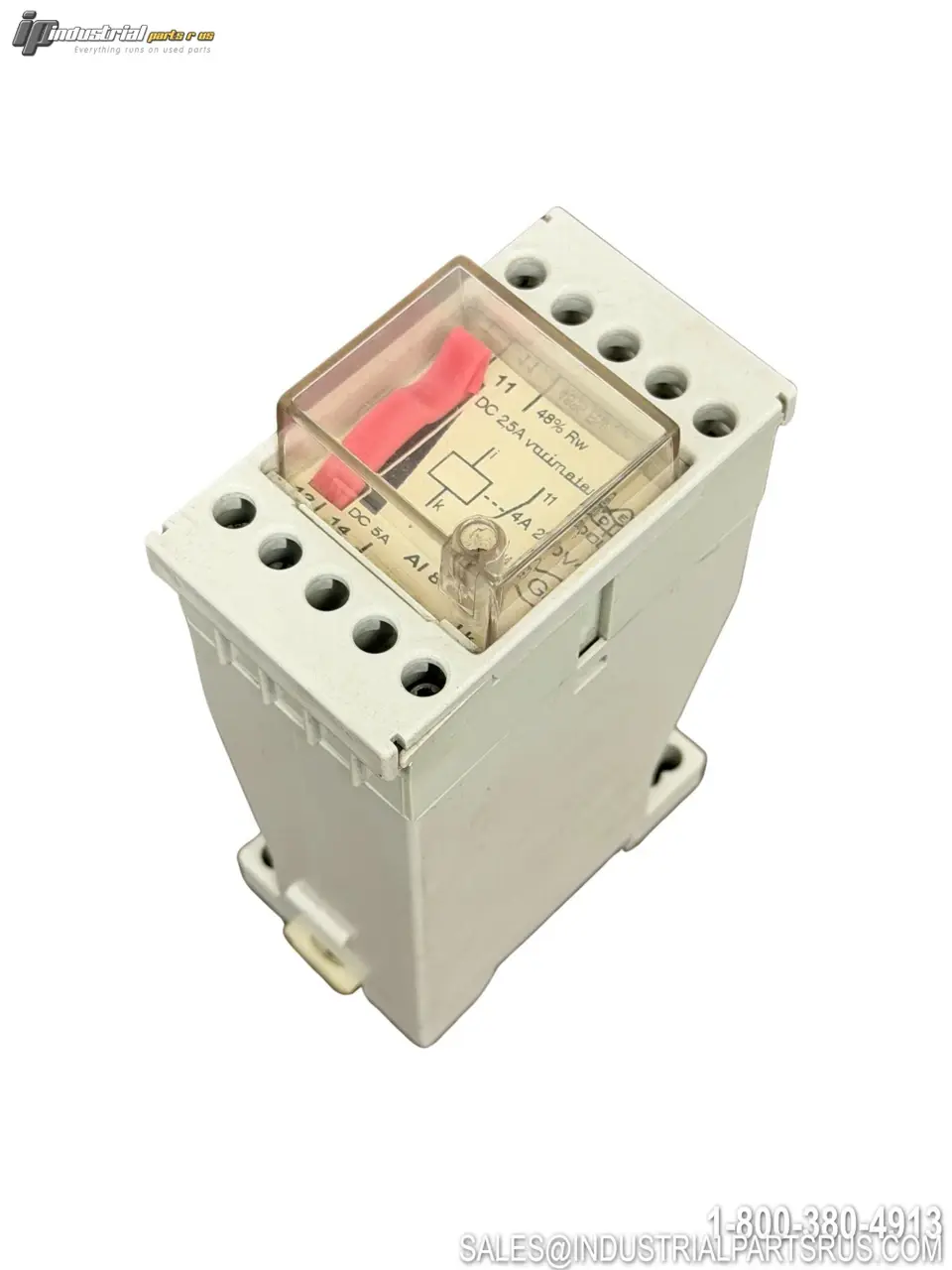

USED E. DOLD & SOHNE KG AI 838

The E. Dold & Söhne KG AI 838 is a single-phase VARIMETER overcurrent relay designed for current monitoring applications in industrial control systems. On the AI 838, the scale is adjusted to the response value; when the monitored current exceeds the set threshold, the relay energizes, and the output contact resets automatically once the current falls below the setting value multiplied by the hysteresis factor. The unit operates without an auxiliary supply voltage, drawing its power directly from the measured circuit, and is compliant with IEC/EN 60 255-1.
Specification
Value
Brand
DOLD / E. Dold & Söhne KG
Model
AI 838
Part / Identification Number
0005965
Product Type
Current Monitoring Relay
Monitored Current Range
2.5–5A DC
Setting
Adjustable
Setting Marking
RW 48%
Output Contact Rating
4A at 250VAC
Contact Configuration
Changeover Relay Contact
Contact Terminals
11, 12, 14
Terminal Type
Screw Terminal
Mounting
DIN Rail
Manufacturer
E. Dold & Söhne KG
Manufacturer Location
Furtwangen, Germany
Markings
CE, GL
We warranty all items for 30 days from date of purchase.
