USED FUJI ELECTRIC SC-E03/G

The Fuji Electric SC-E03/G is a 3-pole magnetic contactor designed for industrial motor control and switching applications. This unit features a 24VDC operating coil and is rated for 20A continuous current. The contactor includes three main power poles with terminals 1L1, 3L2, 5L3 and 2T1, 4T2, 6T3.

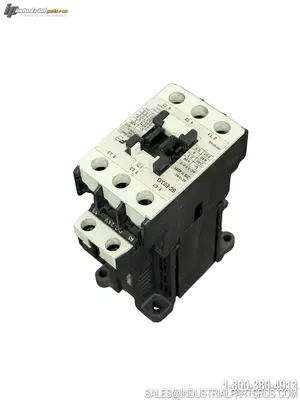

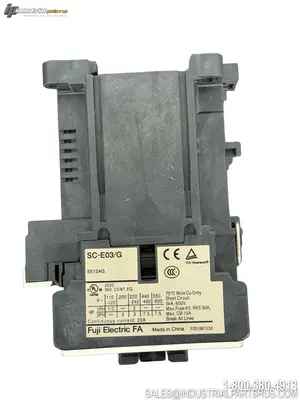

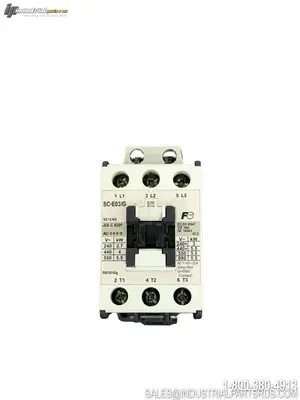

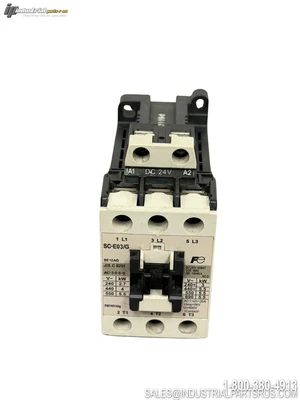

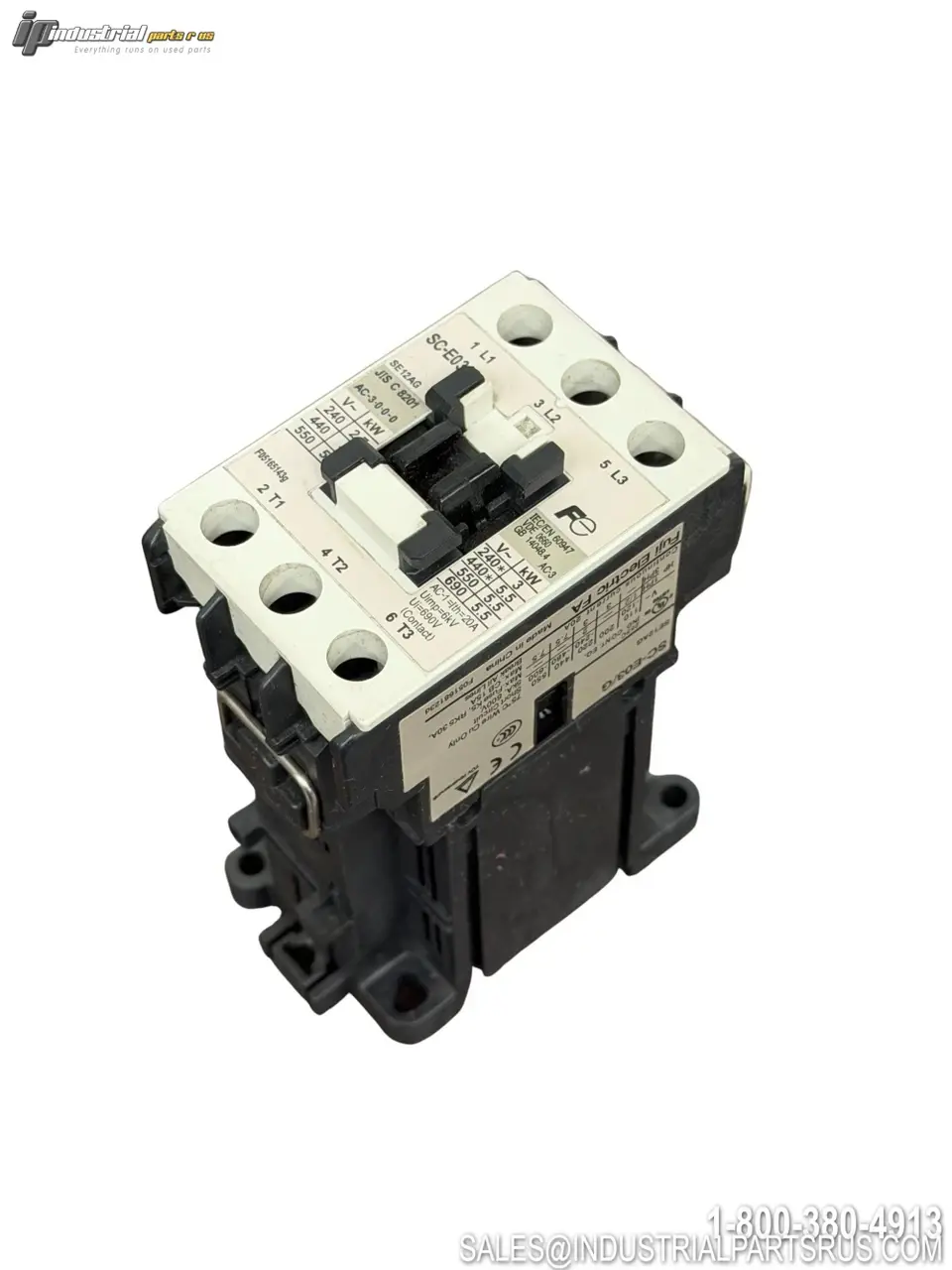

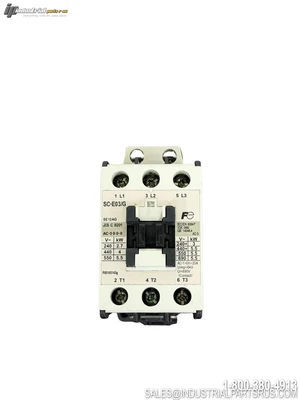

The nameplate provides AC-3 motor ratings for multiple operating voltages and identifies the unit as model SC-E03/G with type/code SE12AG. Please review all photos for the exact configuration, markings, terminals, and condition of the item being offered.
Specification
Value
Brand
Fuji Electric
Model
SC-E03/G
Type / Code
SE12AG
Product Type
Magnetic Contactor
Coil Voltage
24VDC
Number of Main Poles
3
Continuous Current
20A
Utilization Category
AC-3
Rated Insulation Voltage (Ui)
690V
Impulse Withstand Voltage (Uimp)
6kV
AC-3 Rating @ 240V
3 kW
AC-3 Rating @ 440V
5.5 kW
AC-3 Rating @ 550V
5.5 kW
AC-3 Rating @ 690V
5.5 kW
Main Input Terminals
1L1, 3L2, 5L3
Main Output Terminals
2T1, 4T2, 6T3
Coil Terminals
A1 / A2
Standards / Markings
IEC/EN 60947, VDE 0660, JIS C 8201, UL, CE, TÜV, CCC
Country of Manufacture
China
We warranty all items for 30 days from date of purchase.
