USED 2012 MAKINO A51NX

2 Pallet Factory Changer
Full 4th Axis Rotary Table
60 Pocket Tool Magazine
Renishaw Probe
Through the Spindle Coolant
14,000 RPM Spindle

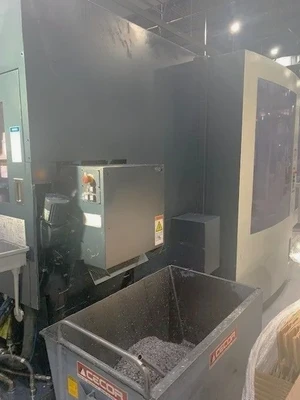

Chip Conveyor
Hand Held Remote Jog Handle
Tool Offset Memory
200 Program Memory
4 MB Data Center
Ball Screw Cooling
200 Tool Offsets
Tool Offset Memory C
Helical Interpolation
High Speed Skip Function
Custom Macro 100 Variables
External Setting Orientation
Spindle Chiller

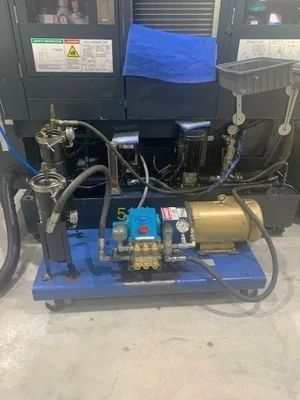

Complete Coolant System with Tank & Pumps
USB Port Interface
RS 232 Port Interface

The 2012 Makino A51NX is a used CNC horizontal machining center designed for precision and efficiency. It is equipped with a powerful Fanuc Pro 5 Series Control, supporting complex machining operations with ease. The machine features a full 4th axis with .001-degree table indexing for intricate and accurate work. It operates at spindle speeds ranging from 50 to 14,000 RPM, supported by a robust 30 HP motor, making it suitable for a wide range of materials.

This model includes a spacious 15.7" x 15.7" pallet size with two pallets and can handle a table load capacity of up to 1,100 lbs. The A51NX offers generous travel dimensions with 22" on the X-axis, 25" on both the Y and Z-axes, allowing for versatile part machining. The tool magazine has a capacity of 60 positions, ensuring minimal downtime between tool changes. Additionally, the machine includes a coolant through spindle, chip conveyor, and a Renishaw probe for enhanced operational efficiency and precision.

With rapid traverse rates of 2,362 IPM and cutting feedrates of 1,969 IPM, the Makino A51NX ensures swift and accurate production. It accommodates tools with maximum diameters, lengths, and weights of 7", 17", and 26 lbs., respectively. Ideal for manufacturers seeking high-speed and reliable performance, this machine measures 135" x 98" x 106" and weighs 19,620 lbs., fitting well into industrial facilities with adequate space.
