USED 2007 HAAS VF-9/50

50 Taper Spindle
Coolant Through the Spindle
4th Axis Drive and Wiring - Brushless Type

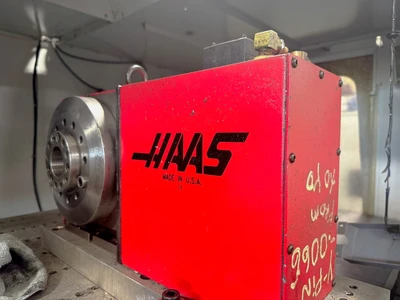

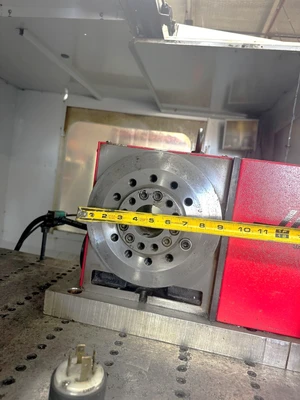

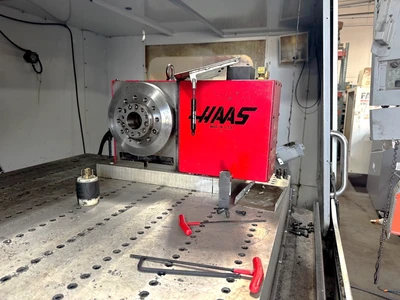

Haas HRT 210 Series 4th Axis Rotary Table

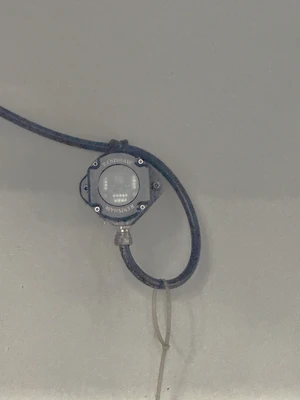

Renishaw Probing

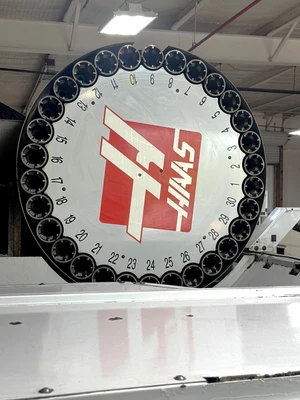

30 Station Side Mounted Tool Changer
7,500 RPM Spindle
2 Speed Geared Head Spindle
Auger Style Chip Conveyor
High Intensity Lighting
Coordinate Rotation & Scaling
Spindle Orientation
User Definable Macros
Haas Intuitive Programming System
Rigid Tapping

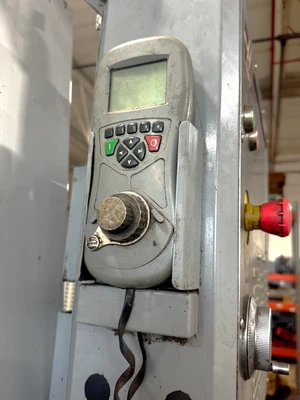

Remote Jog Handle
USB Port Interface
RS232 Port Interface
Coolant System with Tank & Pump
208/230V Electrics

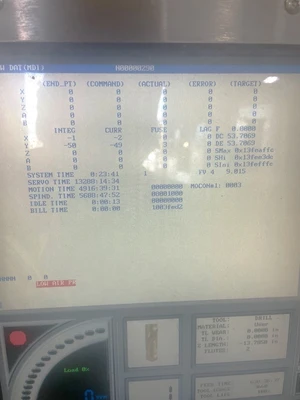

**Spindle Hours 5,688**

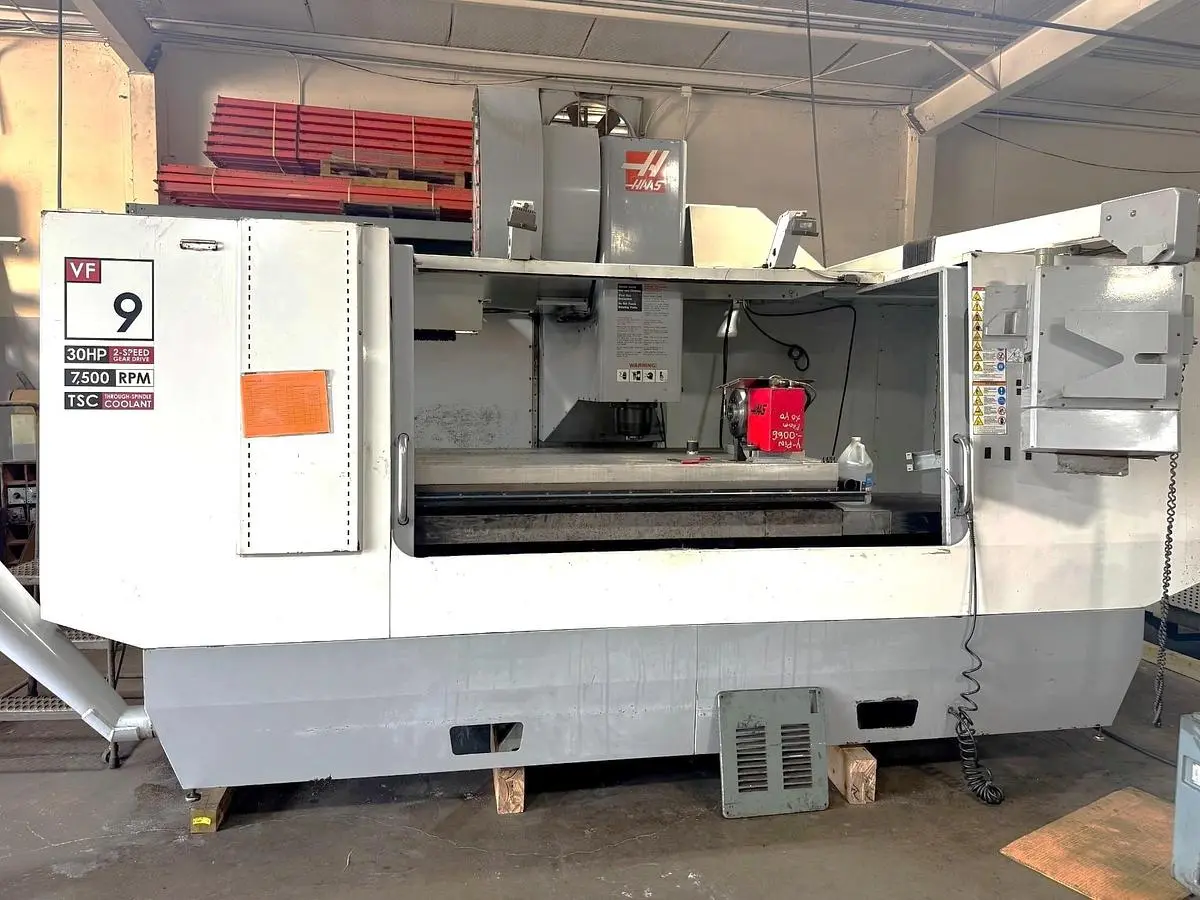

The 2007 Haas VF-9/50 is a robust CNC Vertical Machining Center, ideal for large workpieces. It features a substantial table size of 84" x 36" and can accommodate up to 4,000 lbs. The machine offers expansive travels of 84" on the X-axis, 40" on the Y-axis, and 30" on the Z-axis, ensuring versatility for a variety of applications. Equipped with a powerful 30 HP spindle motor, the VF-9/50 achieves speeds up to 7,500 RPM via a geared head, and it uses a CAT #50 spindle taper, suitable for heavy-duty machining.

This model includes a 4th Axis Rotary Table, enhancing its capability to handle complex and multi-faceted parts. Additionally, the machine is equipped with a tool magazine capacity of 30 + 1 positions, allowing for efficient and quick tool changes. Other functional features include a coolant-through spindle system, a probing system for precision measurement, and an auger for effective chip evacuation. Rapid traverse rates reach up to 600 IPM, which contributes to reduced cycle times and improved productivity.

The VF-9/50 is well-constructed with a machine weight of 28,300 lbs, adding to its stability and precision during operation. Its dimensions are 181" x 114" x 105", requiring ample floor space. This used condition machine is equipped with a gear box and is designed for reliability and long-term use in demanding industrial environments.
