USED 2022 HAAS ST-30Y

Full C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability
10" 3 Jaw Hydraulic Chuck

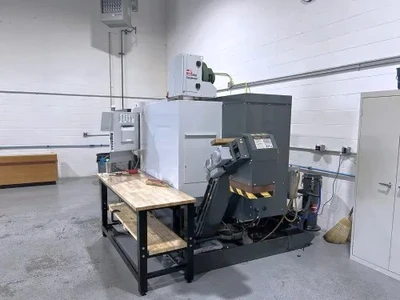

Chip Conveyor
Tool Presetter
Fully Programmable Tailstock
4,000 RPM Milling Capability
High Pressure Coolant - 300 PSI
Spindle Orientation
Rigid Tapping
Early Power Failure Detection Module
Ethernet Interface
USB Port Interface
Coolant System with Tank & Pump
Chip Tray Filter Kit
Wired 220V Electrics

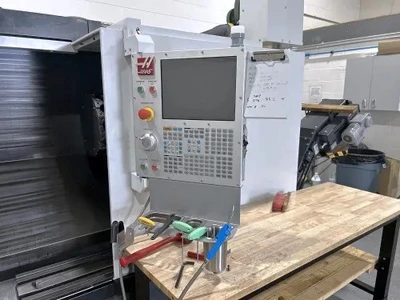

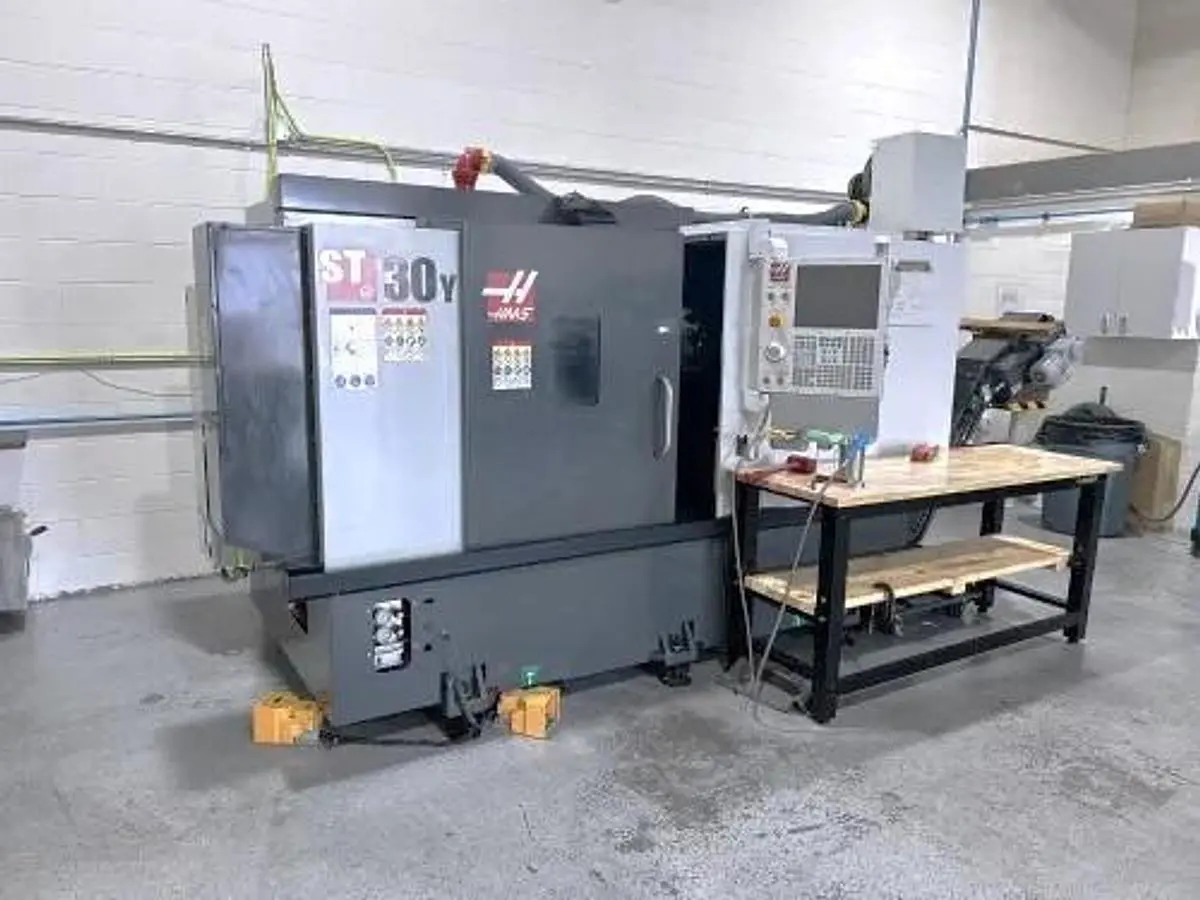

The 2022 Haas ST-30Y CNC Lathe offers advanced milling capability with a Y-axis, providing versatility for complex machining tasks. Equipped with a Haas NextGen Control and a robust 30 HP spindle motor, it handles a variety of operations with confidence. The lathe features a 10-inch 3-jaw hydraulic chuck and supports a maximum bar capacity of 3 inches, allowing you to work with larger materials efficiently. With a maximum turning diameter of 18 inches and a maximum machining length of 23 inches, it caters to diverse job requirements.

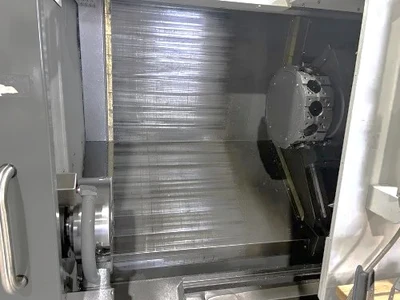

This model also boasts a 12-station turret with a BMT 65 interface, enabling rapid tool changes and increased productivity. Speeds range from 30 to 3,400 RPM for the spindle and up to 4,000 RPM for rotary tools, allowing flexibility in machining speeds. The machine's X, Y, and Z-axis travel distances are 12.5 inches, +/- 2.0 inches, and 26 inches, respectively, with rapid traverse rates of 472 IPM on X and Y axes, and 945 IPM on the Z-axis to ensure efficient operation.

Additionally, the machine comes with a high-pressure coolant system, a chip conveyor, and a tailstock with a travel of 20 inches, making it an ideal choice for long workpieces. Compact yet rugged, the lathe measures 171 by 90 by 83 inches and weighs 14,300 lbs., providing stability and durability for industrial applications.
