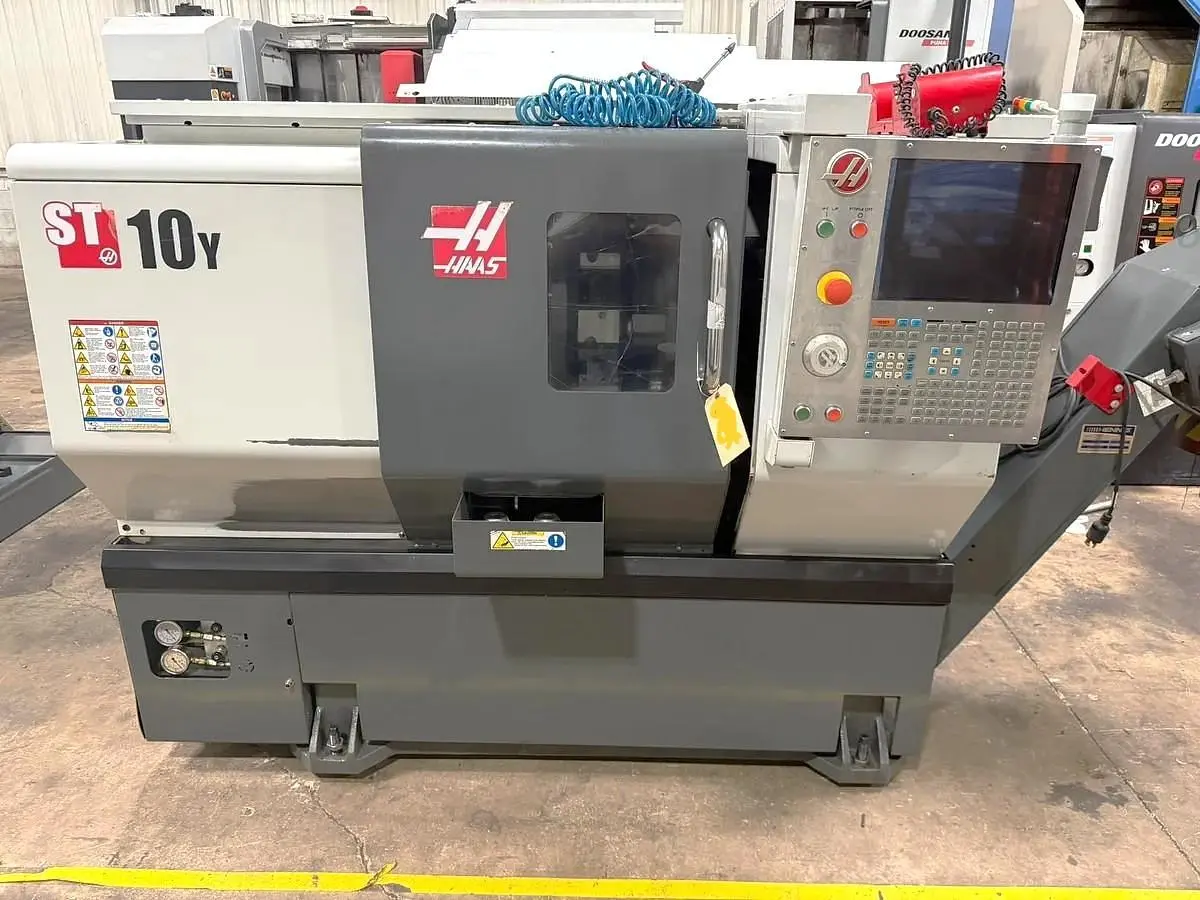

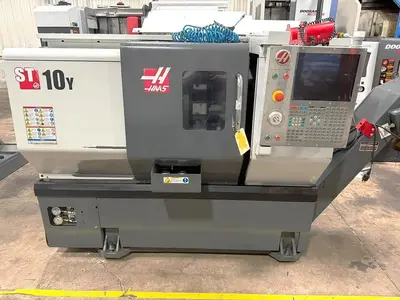

USED 2016 HAAS ST-10Y

Milling / Drilling Capability
Full C Axis Spindle Rotation
Y Axis Capability
Chip Conveyor

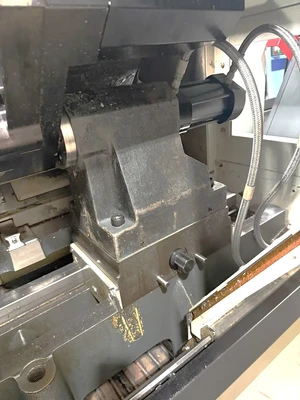

Tailstock
Tool Presetter

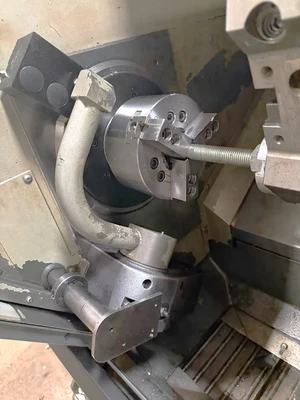

6.5" 3 Jaw Hydraulic Chuck
Collet Chuck

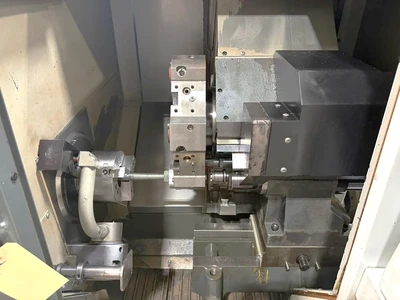

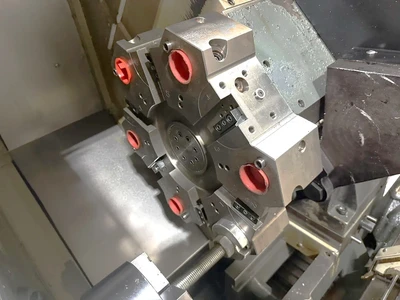

24 Station VDI Style Turret with Live Tooling Capability
6,000 RPM Live Tooling
Remote Jog Handle
Parts Catcher
Spindle Orientation
Visual Part Programming System
750 MB Expanded Memory
Rigid Tapping

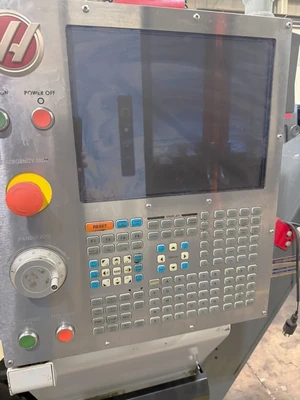

15" LCD Color Monitor
Memory Key Lock Switch
Ethernet Connection
USB Port Interface
RS 232 Port Interface
Complete Coolant System with Tank & Pump
All Available Static and Live Tool Holders

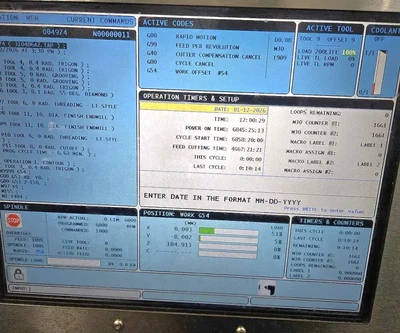

**ONLY 4,667 Feed Cutting Hours**
**Price New as equipped at approximately $135,000**

The 2016 Haas ST-10Y CNC lathe is a versatile and robust machine designed for precision milling with only 4,667 hours of operation. It features a C axis, live milling, and Y axis capability, allowing for complex part geometries and enhanced productivity. The machine is equipped with a 6.5-inch 3-jaw hydraulic chuck and a maximum swing of 25.25 inches, supporting a significant range of workpieces. Its machining capacity includes a maximum diameter of 12 inches and a length of 14 inches, ensuring flexibility for various applications.

This lathe operates with a Haas CNC control system and a powerful 15 HP spindle motor running at speeds up to 6,000 RPM. The 24 station VDI style turret supports efficient tool changes, enhanced by the tool presetter. Additionally, the spindle features a torque of 75 ft/lbs and a maximum rotation of .001 degrees for precise operations. The live tooling speed reaches up to 5,000 RPM, facilitating diverse milling tasks.

For ease of operation and productivity, the machine includes a tailstock with an MT#3 taper and a chip conveyor for automated chip removal. The rapid traverse rates of 472 IPM on X and Y axes and 1200 IPM on the Z axis ensure quick positioning, while the compact footprint with dimensions of 126" x 70" x 81" makes it suitable for various shop floor plans. The Haas ST-10Y combines functionality and efficiency, making it a valuable addition to any manufacturing setting.
