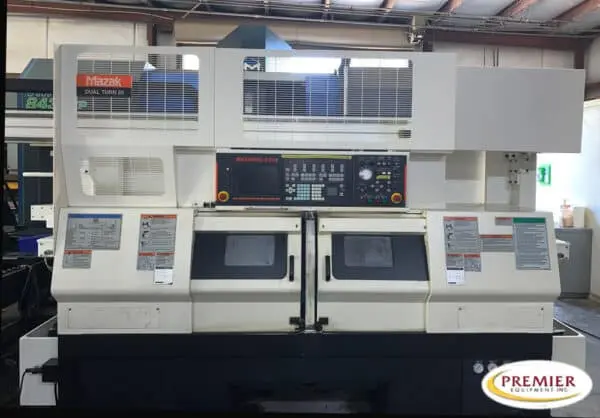

Mazak Dual Turn 20 with Gantry – 2012
Overview
Mazak DualTurn 20 Twin Spindle, Twin Turret CNC Turning Center
Specs
Maximum Swing…………………………………… 12.6″
Standard Cutting Diameter……………………… 10″
Maximum Cutting Length for Chuckwork………. 5.91″
MAIN SPINDLE (L&R)
Distance Between Spindle Faces:
Max. (Both Heads @ Home Position)……. 49.21″
Spindle Nose……………………………………… A2-6
Spindle Bore………………………………………. 2.4″
Spindle Speed/Ranges………………………….. 35-4750 RPM/1
Spindle Horsepower (Cont/30 Mins)………….. 15/20 A.C.
TURRETS (L&R)
Type of Turrets………………………………….. Dodecagonal/Drum Non-Lift
Total No. of Tools………………………………… 24 (12 X 2)
AXIS
Travel:
X-Axis (L&R)…………………………………… 9.06″
Z-Axis (L&R)…………………………………… 19.69″
Equipped With
MAZATROL PC-FUSION-CNC 640T CONTROL
Automatic Tool Eye L&R
Relocation Device
GL100F Gantry Robot / Pitch-Feed Type
Rear Chip Conveyor
(2) 8” Non Thru-Hole Chucks L&R
All Tooling and Manuals
