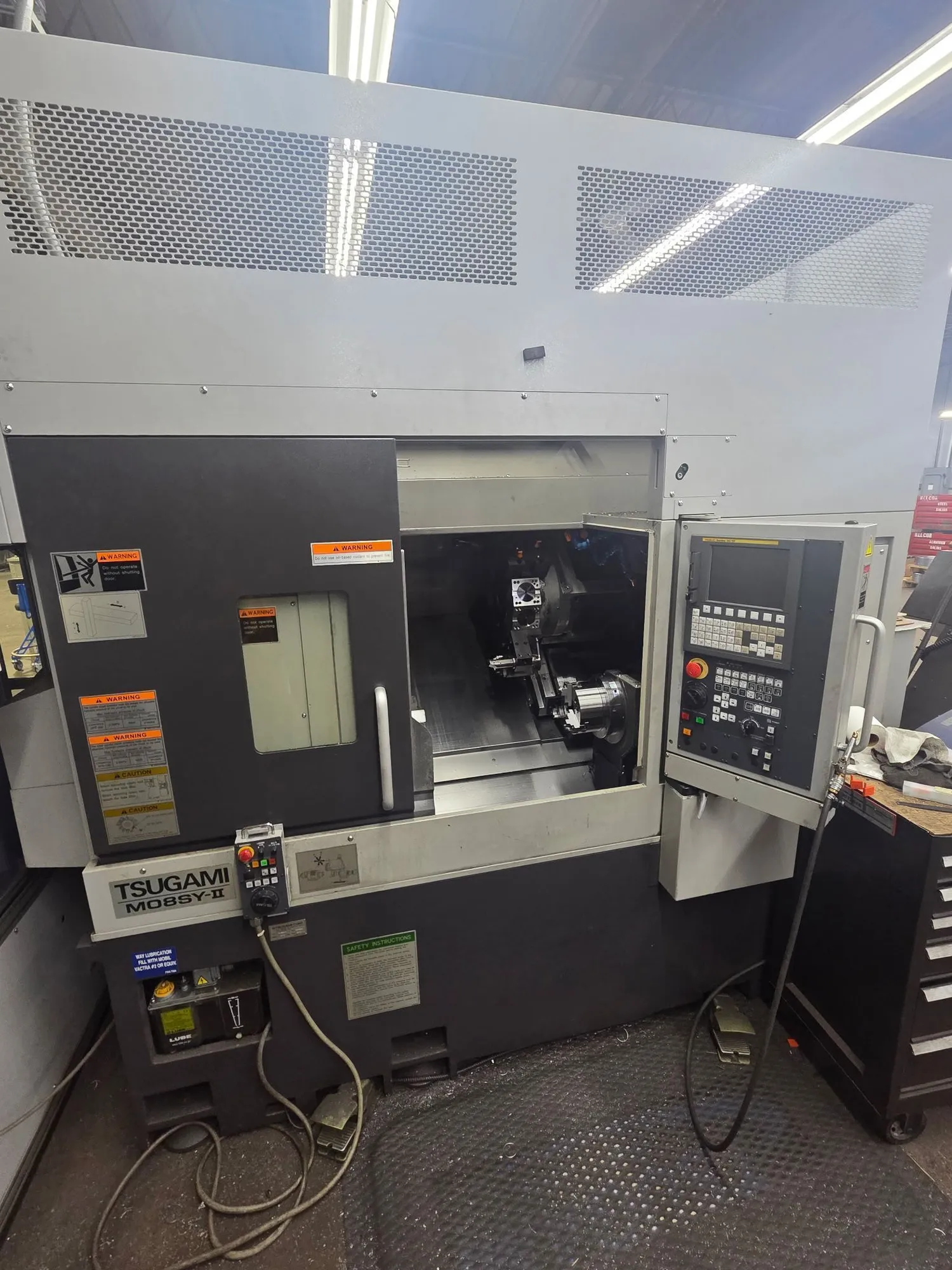

USED 2017 TSUGAMI M08SY-II
Overview

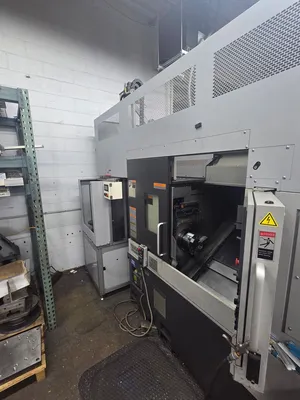

This low-hour 2017 Tsugami M08SY-II must be removed within three weeks to accommodate an incoming machine. This Swiss Turning Center includes Y-axis, sub-spindle, live tooling, an integrated gantry loader, work stocker, and tooling. It remains installed, under power, and available for inspection at the seller’s facility in Ohio.
Specs
Bar Capacity: 2"
Chuck Size: 8"
Sub-Spindle: 6"
Spindle Speed: 4,500 RPM
Live Tooling Speed: 5,000 RPM
Spindle Motor: 14.8 HP
X-Axis Travel: 8.7"
Z-Axis Travel: 15.75"
Y-Axis Travel: 3.94"
C-Axis Indexing: 0.001°
W-Axis Travel: 19.92"
Z-Axis Rapid Rate: 1,062 IPM
X-Axis Rapid Rate: 945 IPM

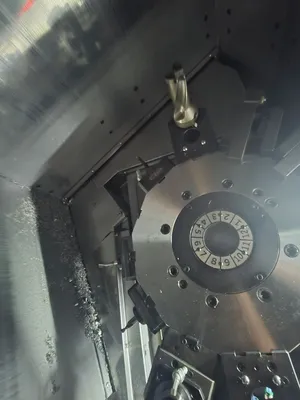

Turret: 12 Stations
Maximum Turning Diameter: 11"
Maximum Turning Length: 14.96"
Maximum Swing: 11.02"
Dimensions: 106" × 74" × 75"
Weight: 13,900 lb
Equipped With
Fanuc Oi-TF Control
4,700 Hours
Live Tooling

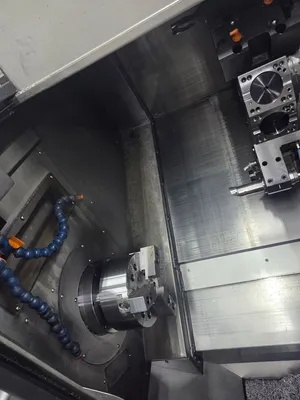

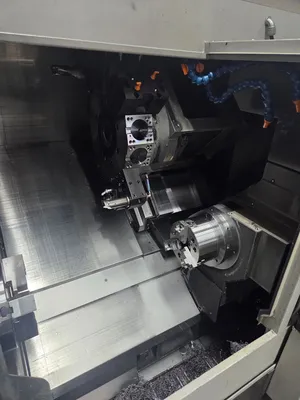

Sub-Spindle
Y-Axis
Upgraded to Accept up to 6" Blanks

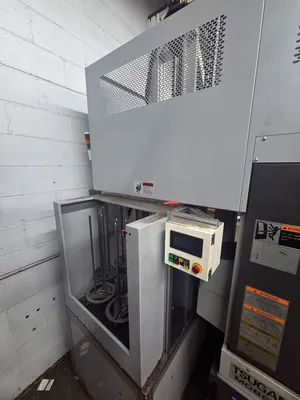

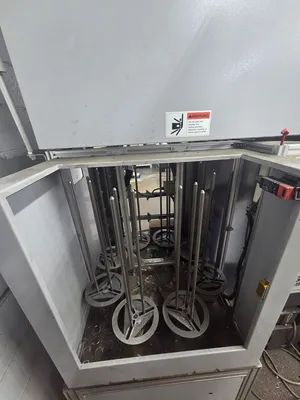

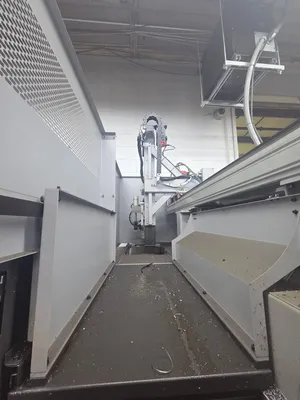

Gantry Loader & Parts Stocker Included

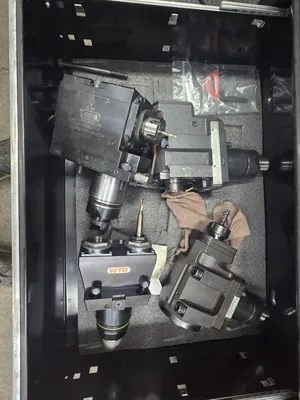

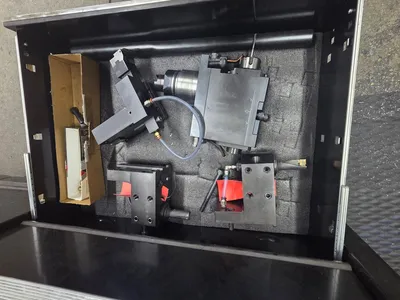

Live Tool Holders & Turret Holders Included
