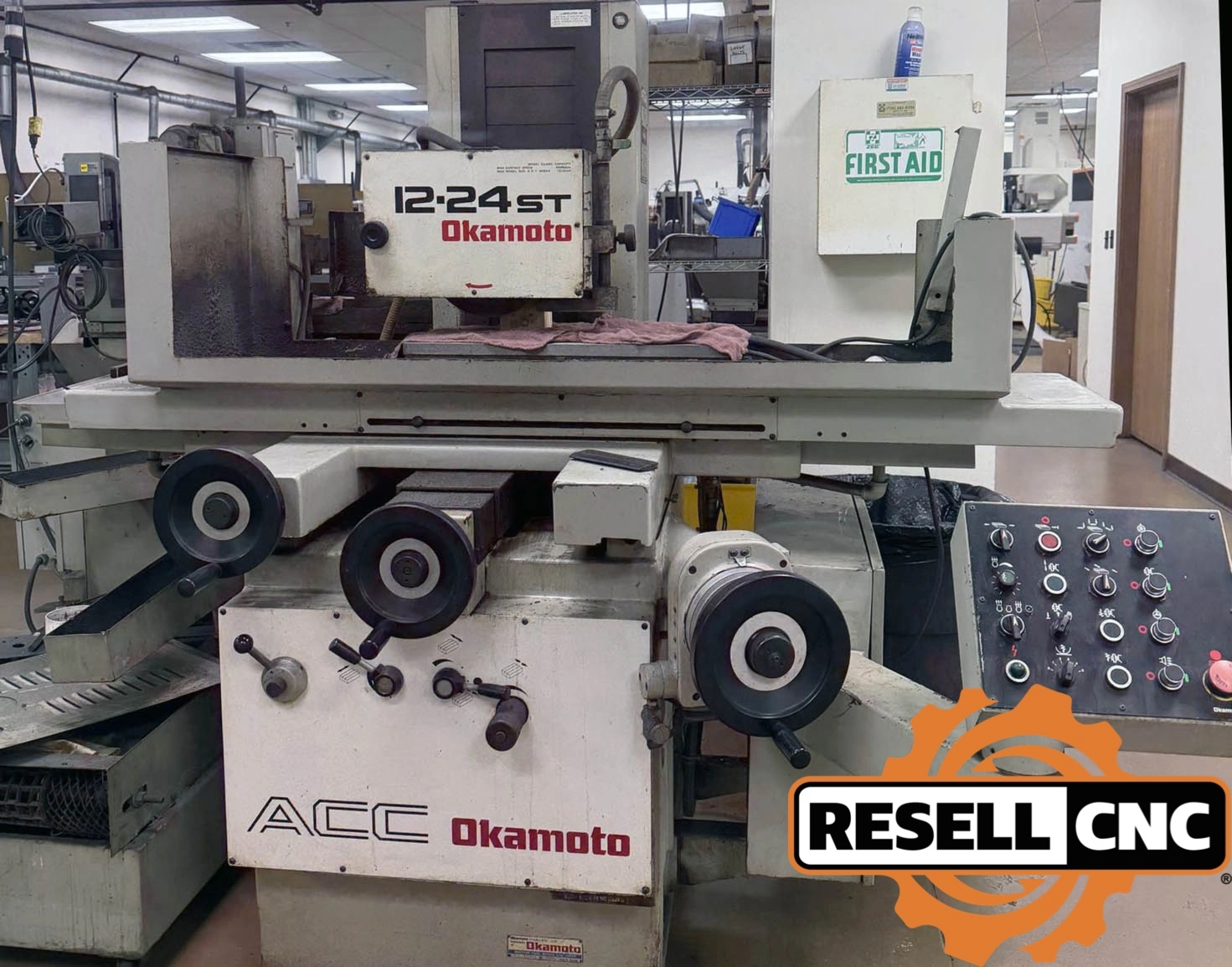

USED Okamoto ACC-1224ST

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Hydraulic Automatic Surface Grinder (3-Axis)

12" x 24" Electro-Magnetic Chuck

Maximum Height Under 12" Wheel 13.7"

Grinding Wheel 12" x 1-1/2" x 5"

Longitudinal Hydraulic Table Feed 1 - 82 FPM

Hydraulic Intermittent Cross Feed 0.02" - 0.8"

Hydraulic Continuous Cross Feed 4 - 40 IPM

Cross Hand Feed 0.25" Per Revolution

Cross Feed Graduation 0.001"

Vertical Downfeed Per Table Stroke 0.0001" - 0.0005"

Vertical Downfeed Per Saddle Reversal 0.0001" - 0.0015"

Vertical Hand Downfeed 0.05" Per Revolution

Vertical Downfeed Graduation 0.0001"

Vertical Rapid Feed Rate 19" IPM

Hydraulic Pump Motor 3 HP

Vertical Rapid Feed Motor 0.5 HP

Centralized Operator Controls

Auto Incremental Downfeed, Surface and Plunge Modes

Automatic Wheel Sparkout Up to 5 Passes

Power Elevation

Power Over-the-Wheel Dresser

Variable Hold Neutrofier on Console Control

Coolant System

B Axis: false
C Axis: false
Electrical: 230-460V, 3 Phase, 60 Hz
Grinder Type: Surface Reciprocating
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 5
Sub Spindle: false
Tailstock: false
Twin Turret: false
Vertical Table Pallet Size: 12" x 24
X Travel: 29.5
Y Axis: false
Y Travel: 13.6
