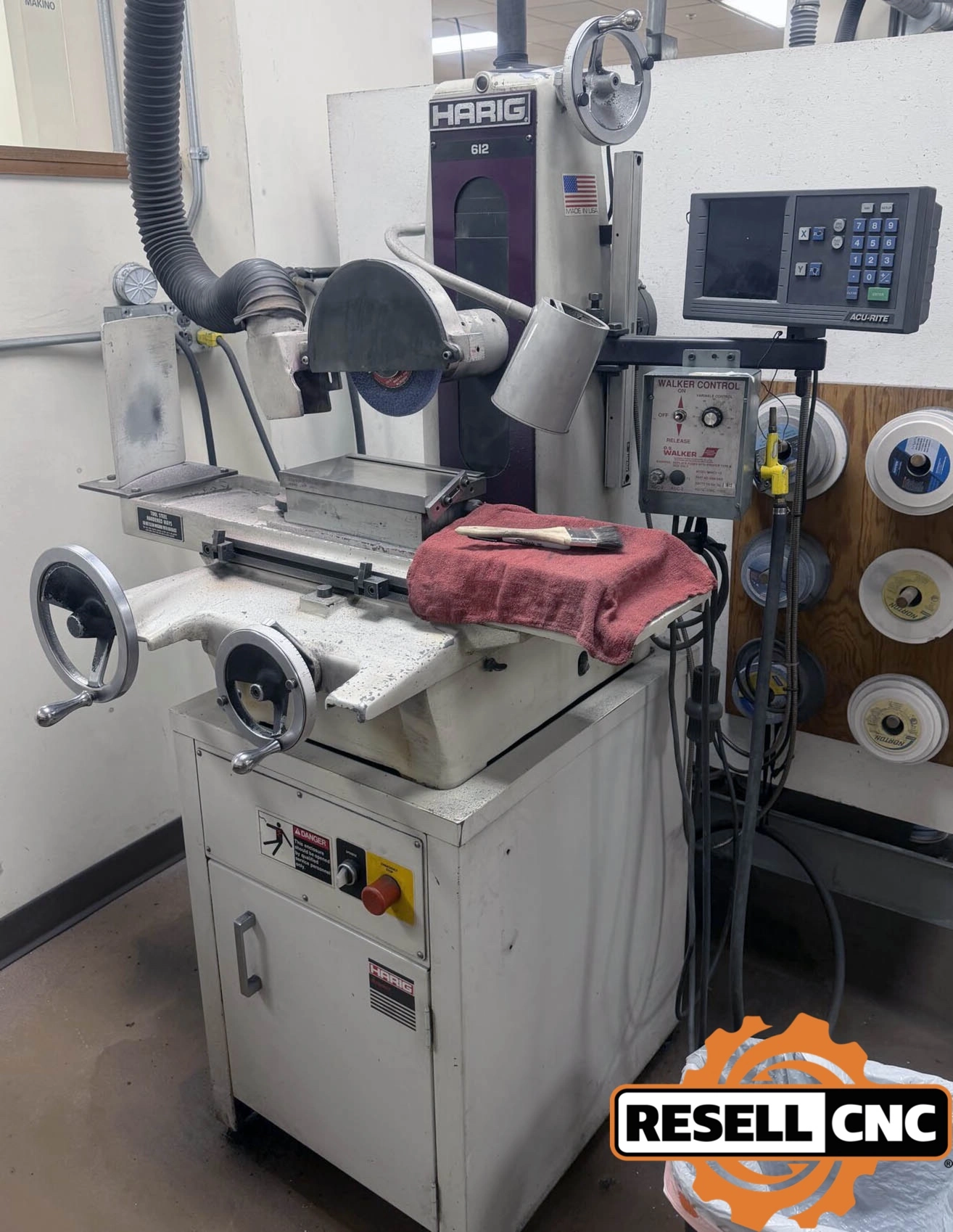

USED 2003 Harig 612

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Width & Length Ground: 6" x 12"

Longitudinal Travel: 12-3/4"

Cross Feed Travel: 6-3/4"

Max Vertical Working Height (Under 7" Wheel): 12"

Max Grinding Wheel Diameter: 8"

Elevating (Downfeed) Handwheel Graduation: 0.0005"

Cross Feed Handwheel Graduation: 0.001"

Spindle: Harig 1.5 HP Direct-Drive "Cartridge Type"

Spindle Speed: 3,450 RPM

Magnetic Chuck: 5" x 10" O.S. Walker Fine-Division "LBP" Electro-Magnetic

Chuck Control: O.S. Walker "Smart Series" Neutrofier, Variable Hold Power

Way Construction: V and Flat Ways, Tool Steel Hardened Ways Option

Lubrication: Harig "Flo-Clean" Automatic Lubrication System

Acu-Rite Flat Panel 2-Axis Digital Readout Display

Floor Area (Cabinet): 21" x 25"

Floor Area (Operating Space): 48" x 45"

Approximate Machine Weight: 900 lbs

Presently Wired: 3/60/230 Volts (Spindle Rated 3/60/208-230-460V)

B Axis: false
C Axis: false
Electrical: 3/60/230V (Presently Wired)
Grinder Type: Surface Reciprocating
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 1.5 HP
Sub Spindle: false
Tailstock: false
Twin Turret: false
Vertical Table Pallet Size: 6" x 18"
X Travel: 12.75
Y Axis: false
Y Travel: 6.75
