USED 2016 MULTICAM 3000

Machine Specifications

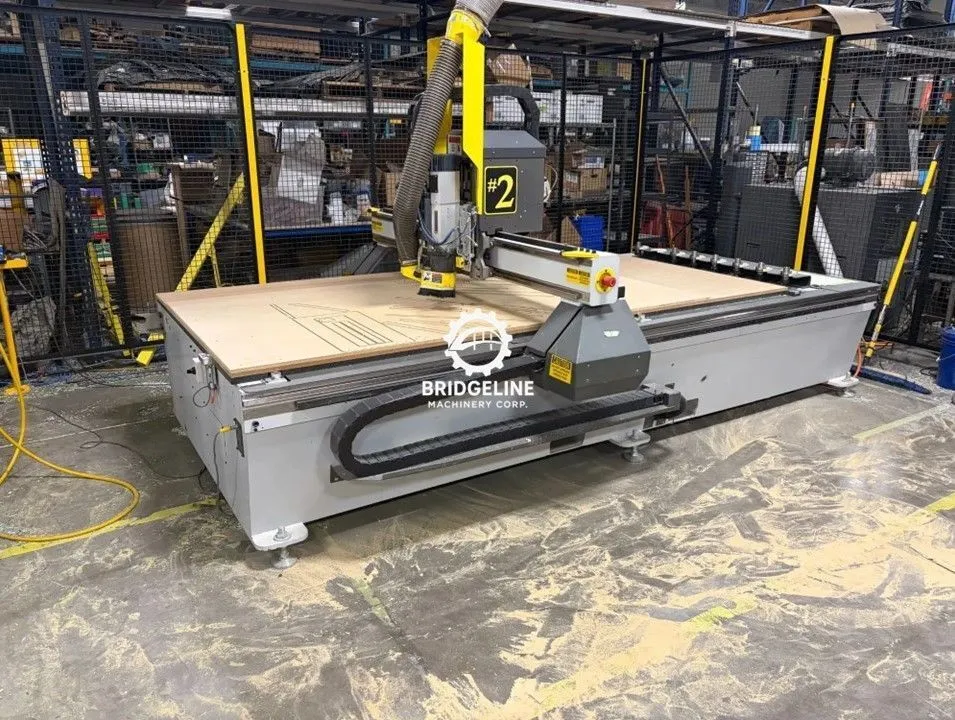

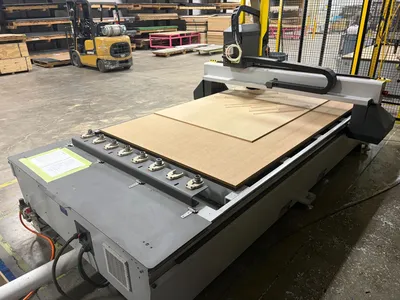

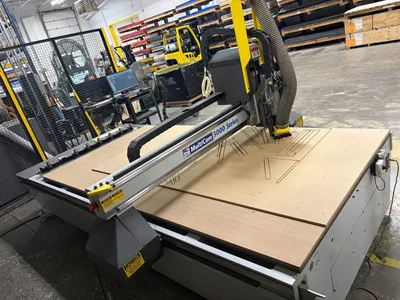

2016 MULTICAM 3000 SERIES CNC ROUTER
.
Manufacturer MultiCam
Series / Model 3000 Series / 3-204-R-PF
Year 2016
Machine Type 3-Axis CNC Router
.
CAPACITY & CONSTRUCTION
.
Working Area Approx. 60" x 120" (5' x 10')
Z-Axis Travel Approx. 12"
Configuration Fixed table / moving gantry
Table Phenolic vacuum hold-down table
Motion Servo-driven gantry system
.

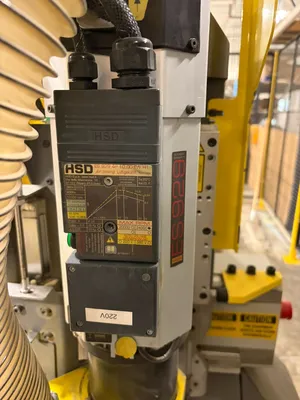

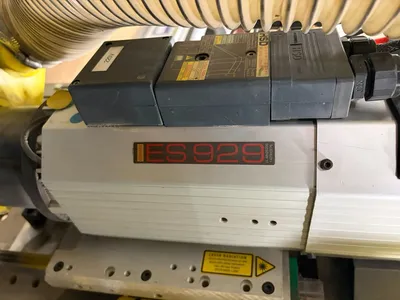

SPINDLE - CONFIRMED FROM SUBJECT MACHINE NAMEPLATE
.
Manufacturer HSD
Model ES929 4P
Rated Power 10.00 kW continuous, approximately 13.4 HP
Cooling Air cooled
Maximum Speed 24,000 RPM
Electrical 3-phase, 220/380 V; 400 Hz
Poles / Protection 4-pole / IP54

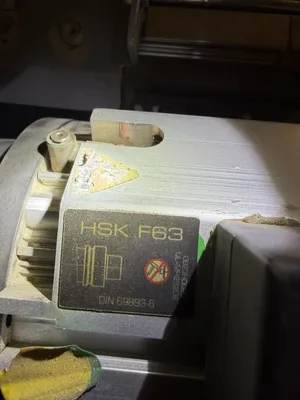

Tool Interface HSK F63
Approx. Spindle Weight 28 kg / 62 lb
.
AUTOMATIC TOOL CHANGER
.
Type Linear automatic tool changer
Capacity 8 positions
Tooling Interface HSK F63
.

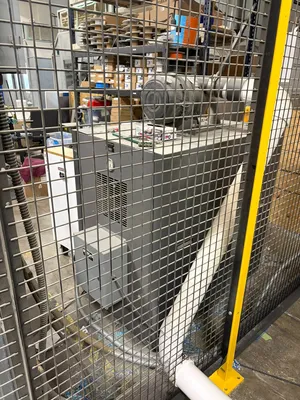

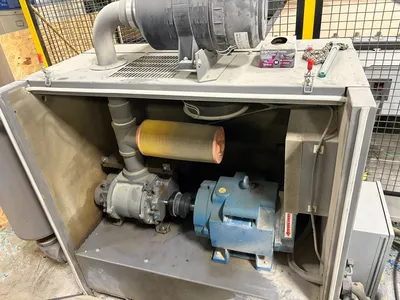

VACUUM HOLD-DOWN SYSTEM
.

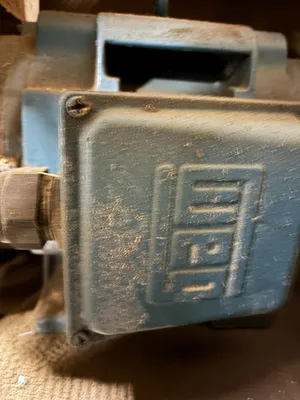

System Oil-lubricated rotary vacuum pump package
MultiCam Model SH-0200-25-08
MultiCam Serial 900003793
Lubricant Reference Summit SBL-220 QT specified for approximately 32-90 F ambient conditions
Service Label Oil change interval shown as every 90 days
Pump HP / CFM Not confirmed from available photographs; motor/pump data plate required for exact
rating
.
CONTROL & EQUIPMENT
.

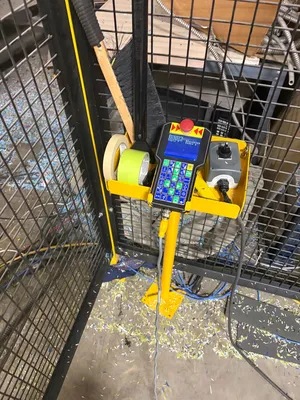

Control MultiCam CNC control with handheld pendant
Axes 3

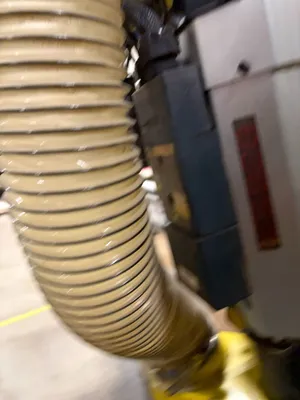

Equipped With 8-position ATC; vacuum table; vacuum pump package; dust hood/extraction connection;
machine guarding
.
GENERAL
.
Machine Electrical Previously documented approximately 220 V, 3-phase, 50.5 A; verify at machine
Approx. Dimensions 183" L x 95" W x 77" H
Approx. Weight 5,170 lb
.
Verification Note: Spindle details above are confirmed from photographs of the subject machine. Vacuum package model and serial are
confirmed from its MultiCam identification plate. Exact vacuum motor horsepower and pump capacity are intentionally left unconfirmed until the
motor or pump manufacturer's data plate is documented.
.
