NEW LONE STAR POWERMAX45 SYNC

Florida, United States
3,928Listings|10Followers
Overview
Plasma Cutters

Discover precision with the LONE STAR POWERMAX45 SYNC Plasma Cutter. Compact and efficient, it offers input voltages of 200-480 V and an output current of 10-45 A. With inverter IGBT power supply, it ensures reliable cutting for every project.

Specs
Input Voltage
± 10% - CSA: 200 – 240 V, 1-PH, 50-60 Hz OR 480 V, 3-PH, 50-60 Hz1
Input Current
@ 6.5 kW - CSA: 200 - 240 V, 1-PH, 39/32 A OR 480 V, 3-PH, 9.4 A1
Output Current
10-45 A
Rated Output Voltage
145 VDC
Open Circuit Voltage (OCV)
275 VDC (200 - 240 V, CSA/CE/CCC and 480 V, CSA) 265 VDC (400 V CE/CCC)
Dimensions with Handles
442 mm (17.4") D; 173 mm (6.8") W; 357 mm (14.1") H
Weight w/7.6 m (25') torch
CSA: 14 kg (31 lbs.) | CE/CCC: 15 kg (33 lbs.)
Recommended Inlet Gas Flow Rate
188 I/min (400 scfh) @ 5,9 bar (90 psi)
Input Power Cable Length
3 m (10')
Power Supply Type
Inverter - IGBT
Engine Drive Requirement
12.5 kVA (10 kW) for full 45 A output
Electrical Efficiency
88%
Recyclability
100%

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Power Supply
WARRANTY: 1 YEAR – Torches

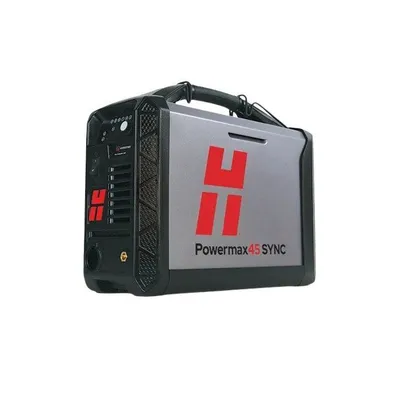

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
