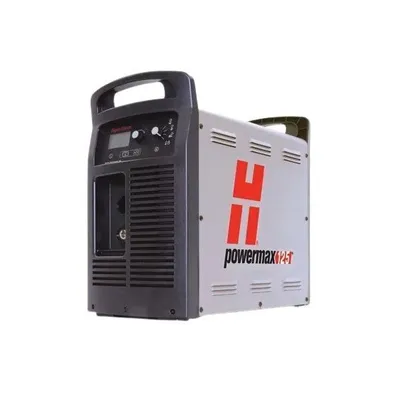

NEW LONE STAR Powermax125 Sync

Florida, United States
3,928Listings|10Followers
Overview
Plasma Cutters

Explore unparalleled efficiency with the LONE STAR Powermax125 Sync plasma cutter. This model operates with input voltages from 380V to 600V and offers up to 125 A output. Ideal for heavy-duty tasks with a duty cycle of 100% at full power.

Specs
Input Voltage
CSA - 480/600V, 3-PH, 50/60 Hz | CE - 400V, 3-PH, 50/60 Hz | CCC - 380V, 3-PH, 50/60 Hz
Input Current
@ 21.9 kW: 300/400/480/600 V, 38/36/31/24 A
Output Current
30-125 A
Rated Output Voltage
175 VDC
Duty Cycle
@ 40°C (104°F): 100% @ 125 A
Open Circuit Voltage (OCV)
400/600 CSA: 320 VDC 380V | CCC: 290 VDC 400 V | CE: 305 VDC
Dimensions with Handles
592 mm D; 274 mm W; 508 mm H (23.3" D; 10.8" W; 20.0" H)
Gas Supply
Clean, dry, oil-free air or nitrogen
Recommended Inlet Gas Flow Rate
Cutting: 260 l/min (550 scfh) @5.9 bar (85 psi) | Gouging: 212 l/min (450 scfh) @4.1 bar (60 psi)
Input Power Cable Length
3 m (10')*
Power Supply Type
Inverter - IGBT
Engine Drive Requirement
40 kW for a full 125 A output

*No power cord on some CCC models.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Power Supply
WARRANTY: 1 YEAR – Torches

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
