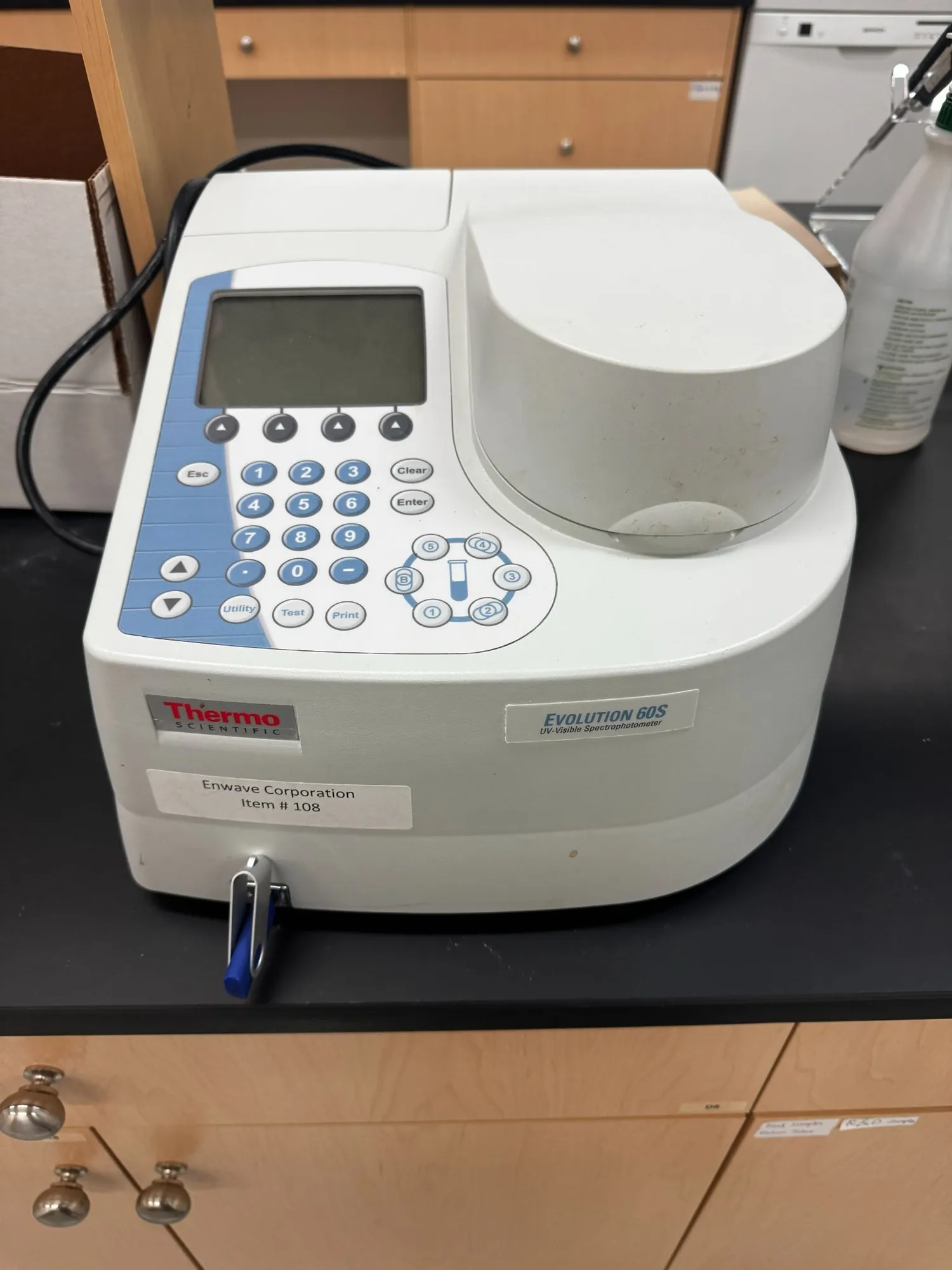

USED THERMO SCIENTIFIC Evolution 60S

Thermo Scientific Evolution 60S UV-Visible spectrophotometer designed for routine laboratory analysis, quantitative measurements, and research applications. The instrument uses a dual-beam optical design with an internal reference detector, xenon flash lamp, and dual silicon photodiodes. It provides a 190–1100 nm wavelength range and supports a variety of sample measurement applications. The standard configuration includes a single-cell holder and automated 6-cell changer.

Specifications
Type: UV-Visible Spectrophotometer

Manufacturer: Thermo Scientific

Model: Evolution 60S

Wavelength Range: 190–1100 nm

Spectral Bandwidth: 1.0 nm

Optical Design: Dual beam with internal reference detector

Light Source: Xenon flash lamp

Detector: Dual silicon photodiodes

Wavelength Accuracy: ±1.0 nm

Wavelength Repeatability: ±0.5 nm

Scan Speed: Up to 4200 nm/min

Photometric Range: -0.1 to 4.0 A

Photometric Linearity: Up to 3.5 A at 260 nm

Photometric Accuracy: ±0.005 A at 1.0 A

Stray Light: <0.08%T at 220 and 340 nm; <1.0%T at 198–200 nm

Drift: <0.0005 A/hr

Sample Holder: Single-cell holder

Cell Changer: Automated 6-cell changer

Display: Backlit graphic LCD

Control: Local control / PC control depending on configuration

Electrical Requirements: 100–240 V, 50/60 Hz, automatic selection

Width: 30 cm (11.8 in.)

Depth: 40 cm (15.7 in.)

Height: 25 cm (9.8 in.)

Weight: 8.6 kg (19 lb.)
