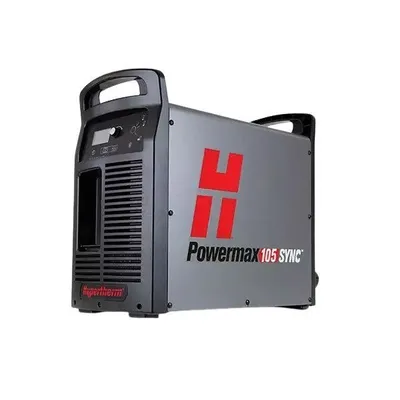

NEW LONE STAR Powermax105 Sync

Florida, United States
3,928Listings|10Followers
Overview
Plasma Cutters

Discover precision with the new LONE STAR Powermax105 Sync Plasma Cutter. Experience robust 16.8 kW power, versatile input voltages, and CSA certification. Perfect for demanding jobs with optimal gas pressure input for seamless operation. Compact and efficient.

Specs
Input Voltage
200–600 V, 3-PH, 50/60 Hz
Kilowatt Output
16.8 kW
Input Current
200/208/240/480/600 V, 3-PH 58/56/49/25/22 A @ 16.8 kW
Output Current
30-105 A
Rated Output Voltage
160 VDC
Open Circuit Voltage (OCV)
300 VDC
Dimensions with Handles
592 mm D; 274 mm W; 508 mm H (23.3" D; 10.8" W; 20.0" H)
Weight w/7.6 m (25') torch
45.3 kg (95 lbs.)
Gas Supply
Clean, dry, oil-free air or nitrogen
Optimum Inlet Gas Pressure
7.6–8.3 bar (110–120 psi)
Minimum Inlet Gas Pressure
5.5 bar (80 psi)
Input Power Cable Length
3 m (10')
Power Supply Type
Inverter - IGBT
Engine Drive Requirement
30 kW for a full 105 A output
Certifications
CSA-Certified for use in the Americas and Asia, except China

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Power Supply
WARRANTY: 1 YEAR – Torches

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
