Used

USED 2018 HYUNDAI WIA LV 1100RM

Illinois, United States
153Listings|141Followers
Overview
CNC Lathes

2018 Hyundai Wia LV 1100RM CNC vertical turning center with 32" table, 53.3" swing, 39.4" turning height, FANUC 32i-B control, 12-station turret, chip conveyor, tool setter, milling capabilities, rotary heads and 32" hydraulic chuck. Used.

Specs
Table Diameter
32"
812.8 mm
Swing Diameter
53.3"
1,353.8 mm
Turning Height
39.4"
1,000.8 mm
Spindle Nose
380 FLAT
380 FLAT
Table Speed
630 RPM
630 RPM
Main Motor
87 hp
64.9 kW
Number Of Ranges
2
2
X - Axis Travel
24.4"
619.76 mm
Z - Axis Travel
39.4"
1,000.8 mm
Rapid Traverse Rate - X
945 ipm
Rapid Traverse Rate - Z
945 in/min.
24 m/min.
C - Axis Indexing
.001 DEGREES
.001 DEGREES

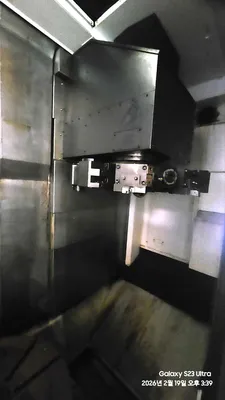

Turret Configuration
12 station
12 station
Machine Weight
48,502 lb
22,000.2 kg
Control
CNC (FANUC 32I-B CNC COLOR CONTROL)
CNC (FANUC 32I-B CNC COLOR CONTROL)
Dimensions
115" x 170.3" x 148.7"
115" x 170.3" x 148.7"
Equipped With

FANUC 32I-B CNC COLOR CONTROL
CHIP CONVEYOR
TOOL SETTER
(1) X ROTARY HEAD
(1) Z ROTARY HEAD

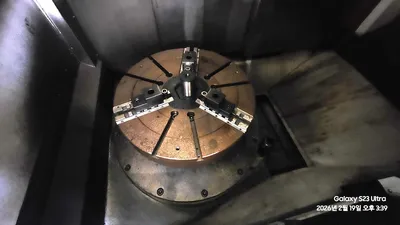

32" 3 - JAW HYDRAULIC CHUCK
