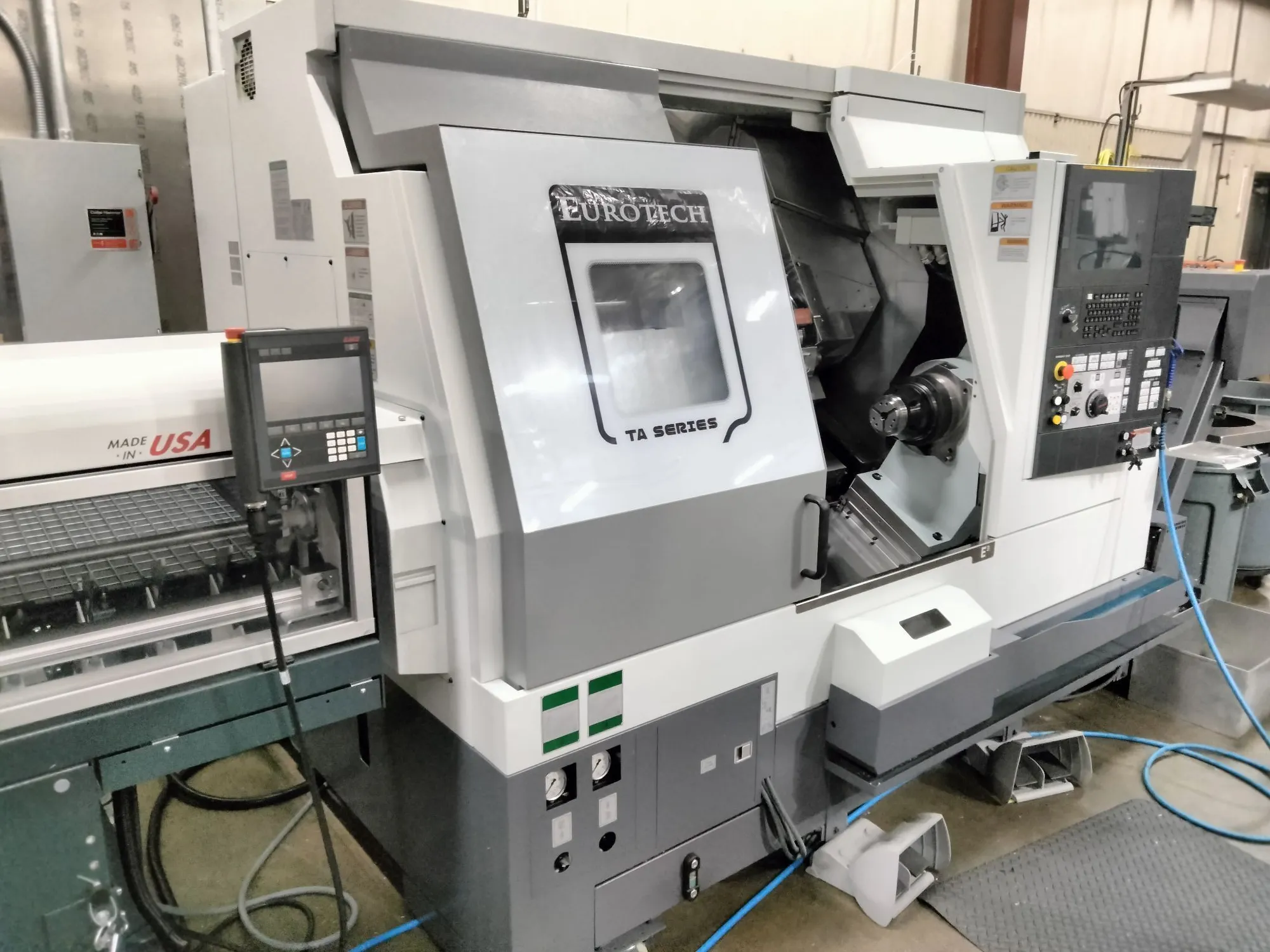

USED 2023 EUROTECH CMZ TA-20-YS-640

Twin-spindle turning center with Y-axis and driven tooling, built for complex, high-production part work. Equipped with a Fanuc 32iTB control with 15" touch screen and the new iHMI, a 15-position N-55 turret, and coolant through the sub-spindle.

Key Specifications

Control: Fanuc 32iTB with 15" touch screen and iHMI, G-code type A, English language
Max swing over bed: 29.9"
Max swing over slides: 23.6"
Max turning diameter: 18.1"
Distance between spindle centers: 24.6"
X-axis travel: 12.2"
Z-axis travel: 25.2"
Y-axis travel: +2.76" / -1.97"
B-axis travel: 25.2"
Main spindle max speed: 3,500 RPM
Sub-spindle max speed: 4,500 RPM
Turning torque: 752 ft-lbs max
Spindle bearing: 7.87" OD / 5.12" ID
Spindle nose ID: 3.58"
Draw tube bore: 3.23"
Chuck: 10" / 12.4" diameter, 3.23" bore
Turret: N-55, 15 positions, 1" x 1" tool shank
Machine dimensions: 100.1" x 69.3" x 83.5"

Included Options and Accessories

Standard hydraulic cylinder in main spindle (Autoblok VNK 150-67)
Air blow over main spindle
Removable tool presetter
Side-exit chip conveyor for Z=640 bed
Machine status indicator light
Tool life management function
Tool load monitoring function
High-pressure coolant pumps: 87 psi (6 bar) and 218 psi (15 bar)
Coolant filter (250 µm) with scraper-type cleaning
Pneumatic, automatic, programmable parts catcher with conveyor
Unimag bar feed interface
Pneumatic parts ejector for sub-spindle, 3.9" adjustable stroke
Coolant through sub-spindle
Machine manuals available as PDF download (cloud.cmz.com)

Driven Tool Holders

TTL/10400/02 axial driven holder, ER32, internal coolant to 1,015 psi (70 bar), 12,000 RPM
TTL/10400/05 radial driven holder, ER32, 12,000 RPM
Wrenches for ER16 and ER32 ring nuts
