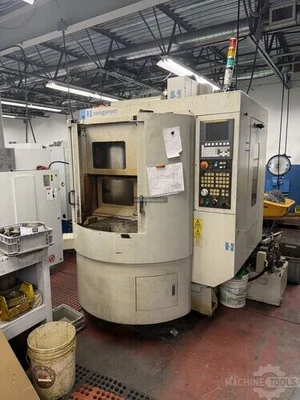

USED 2005 HARDINGE GX480DTAPC
Overview
Specs
TABLE SIZE 23.6" x 15.8"
X TRAVEL 19
Y TRAVEL 16
Z TRAVEL 17
ATC 20-station swing arm
SPINDLE RPM 15000
TAPER 30BT

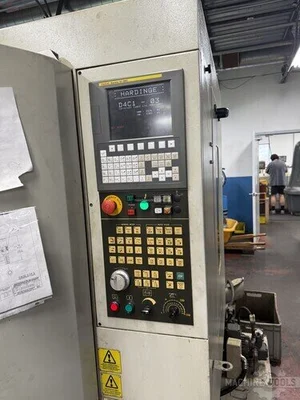

CONTROL FANUC 0i-MC
VOLTAGE 220
X/Y/Z travels: 19 x 16 x 17 in (480 x 400 x 430 mm). Table working surface 23.6 x 15.8 in (600 x 400 mm); table load capacity 661 lbs. Rapid rate 1,417 IPM (36 m/min); feed rate range 0.1–590 IPM. Maximum tool diameter (adjacent pockets empty): 5.9 in (150 mm); maximum tool length: 7.48 in (190 mm); maximum tool weight: 15.7 lbs (7 kg). Includes three-spindle 4th axis with 5C air-actuated collets (original to machine), new unused pallet changer gearbox, and 25 assorted tool holders including some chucks. High-speed machining, rigid tapping, and tool length compensation are standard.
