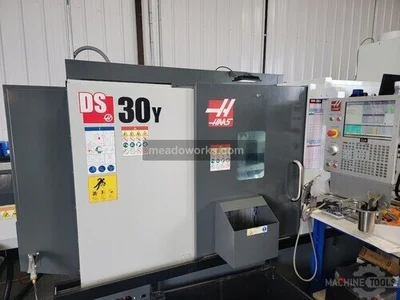

USED 2023 HAAS DS-30Y
Overview
Machine location: United States (exact location available on request). This listing shows Schaumburg, IL because that is the Meadoworks office address, not where the machine is located.
Specs
Dual-Spindle CNC Turning Center with Y-Axis
Capacity
Max Cutting Diameter: 13.75"
Max Cutting Length: 32.5"
Bar Capacity: 3.0" (76 mm)
Max Swing Over Front Apron: 31.75"
Swing Over Cross Slide: 20.75"
Main Spindle
Spindle Nose: A2-6
Chuck Size: 10"
Max Speed: 4,500 RPM
Motor: 30 HP Vector Drive
Spindle Bore: 3.5"
C-Axis: Full, 5 HP
Secondary (Sub) Spindle
Spindle Nose: A2-5
Chuck Size: 8.3"
Max Speed: 4,000 RPM
Motor: 15 HP
Spindle Bore: 2.3"
C-Axis: Full
Capability: Synchronous turning, on-the-fly part pass-off
Travels
X-Axis: 12.5"
Y-Axis: ±2.0"
Z-Axis: 23.0"
Turret & Live Tooling
Turret: 24-Station BMT65
Live Tooling Speed: 6,000 RPM
Live Tooling Motor: 5 HP
