USED 2018 KOMATSU OBS60-34
Overview

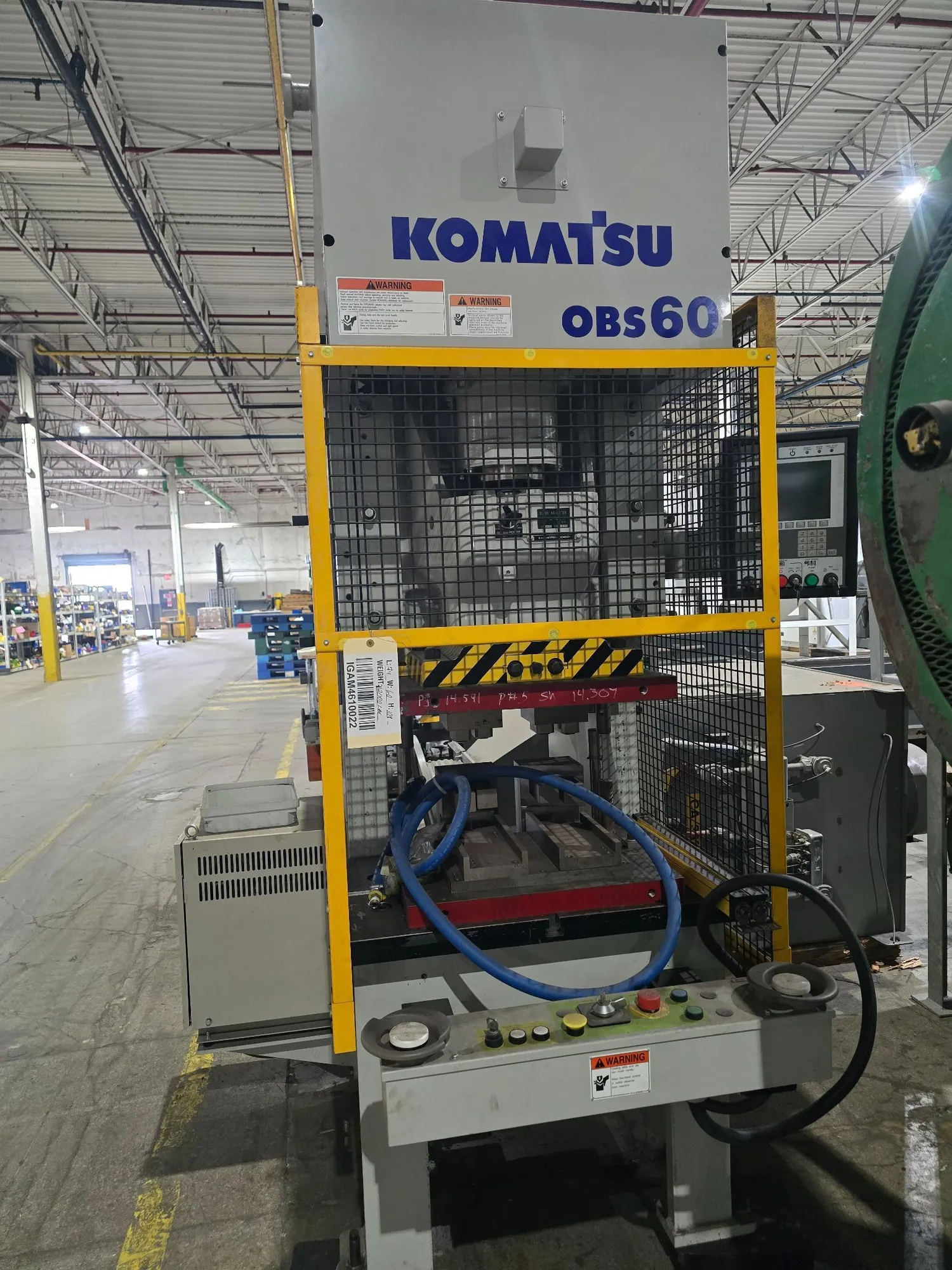

This listing is for a USED Komatsu OBS60-34 single-point mechanical gap frame press. The machine provides 600 kN / 66 short ton capacity with a 120 mm stroke, 48-85 strokes per minute, 300 mm shut height, and 900 x 550 mm bolster for stamping, blanking, forming, and production pressworking operations.
Specs
IDENTIFICATION
Manufacturer: Komatsu Ltd.
Model: OBS60-34
Product Type: Single-point mechanical gap frame press
Machine Serial Number: 16691
Condition: USED
YOM: 2018-11
Country of Manufacture: Japan

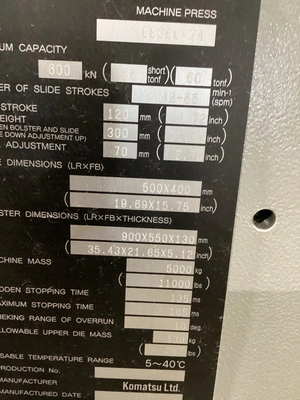

PRESS CAPACITY / PERFORMANCE
Maximum Capacity: 600 kN
Capacity - Short Tons: 66 tonf
Capacity - Metric Tons: 60 tonf
Slide Stroke Rate: 48-85 spm
Slide Stroke: 120 mm / 4.72 in
Shut Height: 300 mm / 11.81 in
Slide Adjustment: 70 mm / 2.76 in
Allowable Upper Die Mass: 130 kg / 287 lb
SLIDE
Slide Dimensions - LR x FB: 500 x 400 mm
19.69 x 15.75 in
BOLSTER
Bolster Dimensions
LR x FB x Thickness: 900 x 550 x 130 mm
35.43 x 21.65 x 5.12 in
STOPPING / SAFETY DATA
Sudden Stopping Time: 135 ms
Maximum Stopping Time: 165 ms
Overrun Checking Range: 10 deg
MACHINE MASS
Machine Mass: 5000 kg / 11,000 lb

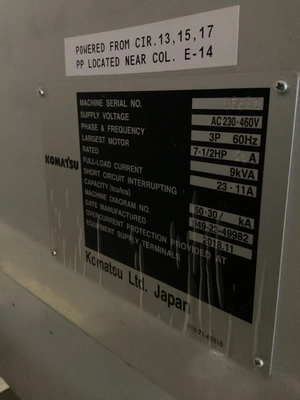

ELECTRICAL
Supply Voltage: 230 / 460 VAC
Phases: 3
Frequency: 60 Hz
Largest Motor: 7-1/2 HP
Full Load Current: 23 / 11 A
Rated Electrical Load: 9 kVA
ELECTRICAL PROTECTION
Short-Circuit Interrupting
Capacity: 50 / 30 kA
Machine Diagram Number: 949-23-49982

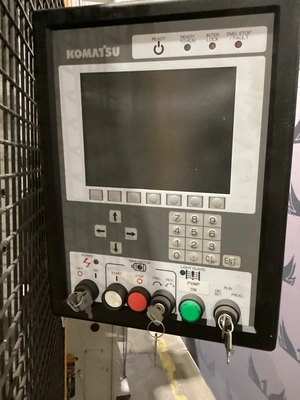

OPERATOR INTERFACE
Operator Display: Integrated
Numeric Keypad: Present
Navigation Keys: Present
Function Keys: Present
Main Power Key Switch: Present
Main Motor Start Control: Present
Main Motor Stop Control: Present
Motor Direction Selector: Forward / reverse
Pump Control: Present
Operating Mode Selector: Run / die set / program
STATUS / DIAGNOSTICS
Ready Indicator: Present
Ready-to-Run Indicator: Present
Interlock Indicator: Present
Emergency Stop / Fault
Indicator: Present
Light Guard Indicator: Present

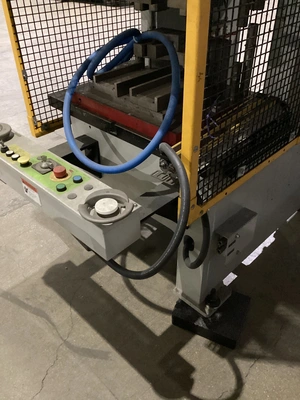

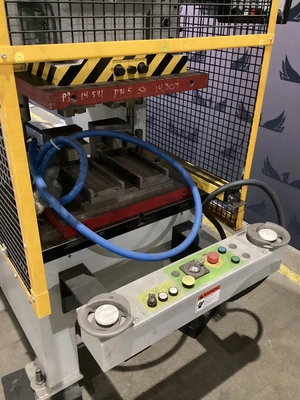

SECONDARY OPERATOR CONTROLS
Dual-Hand Controls: Present
Emergency Stop: Present
Key Selector: Present
Additional Pushbuttons: Present

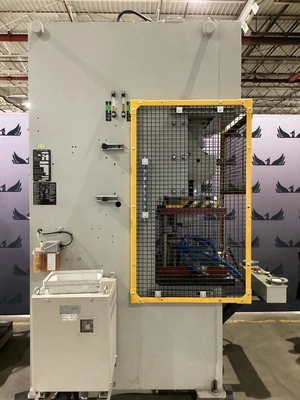

GUARDING
Perimeter Guarding: Present
Guard Construction: Metal mesh
Press Area Enclosure: Present
Light Guard Interface: Present
ENVIRONMENTAL
Usable Temperature Range: 5 to 40 °C
