Tri-Tool 304 Tube Squaring Machine - Used

Tri-Tool 304 Tube Squaring Machine - Used

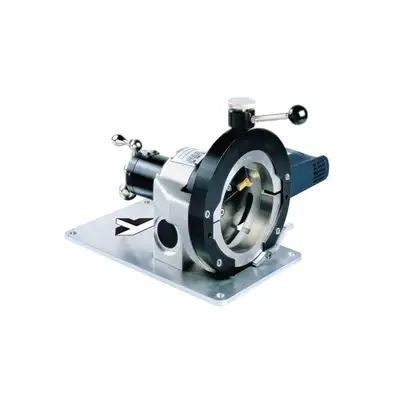

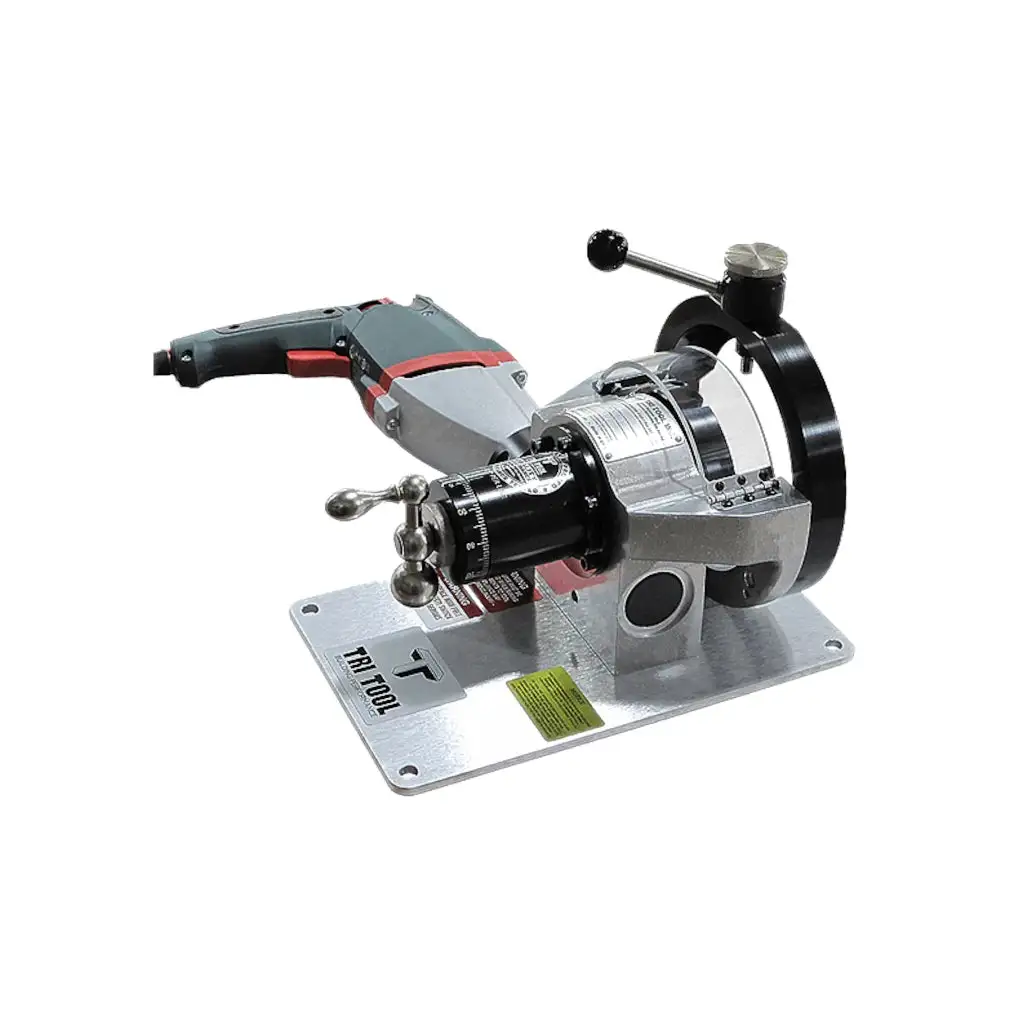

The 304 tube squaring machine is designed for precision stainless steel tube cutting. It supports tubing sizes from 0.250″ (6.35 mm) to 4.5″ (114.3 mm) OD with a maximum wall thickness of 0.250″ (6.4 mm). Featuring quick-change saddles, a graduated feed, and high visibility design, it enhances productivity and operator safety. Power options include pneumatic or electric drives. The integral clear chip guard ensures safer operation, while full support OD clamping minimizes tube distortion. The cutting head accommodates squaring bits, beveling bits, and ID deburring bits for versatile cutting applications.
Features
Handles tubing from 0.250″ to 4.5″ OD
Maximum wall thickness of 0.250″
Quick-change saddles with no tools required
Graduated feed system for precise control
High visibility design for enhanced productivity
Full support OD clamping for minimal distortion
Integral clear chip guard for increased safety
Compatible with squaring, beveling, and ID deburring bits
Dual range, variable speed electric drive for optimized RPM

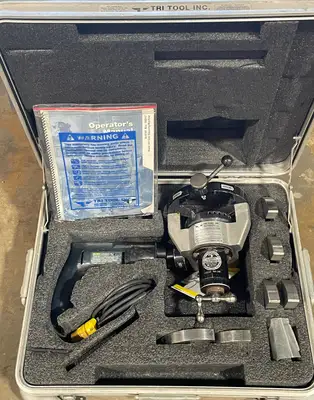

Included
Model 304 Sub-Assembly
Integrated Guard
Motor Assembly
Wrench Kit
Carrying Case
Operator’s Manual
Specifications
Dimensions
