Greenlee CTF-200 Cable Tray Feeder Reconditioned
Overview
Greenlee CTF-200 Cable Tray Feeder Reconditioned
Feeds cable aiding up to 200 lbs (90.7 kg) of force
Force limiter preset to automatically stall on cable to prevent damage to the wire's insulation
Retained locking pins allow for quick adjustment of legs and feeder along mounting system while utilizing no loose pieces
Adjustable legs to fit onto tray width sizes of 18"" (457.2 mm) to 36"" (914.4 mm)

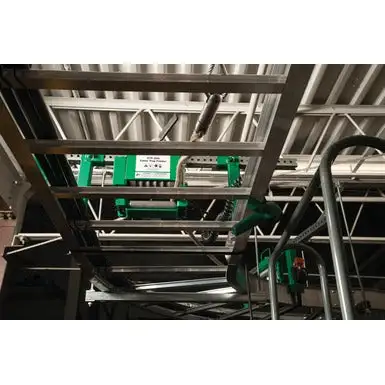

Over-Tray mounting systems allows cable to be placed in tray without taking space up
Safely control the CTF-200 up to 8' (2.4 m) away with a pendant
Specifically designed drive roller to safely and evenly grab cable
Quick release system utilizes 360° swivel and no loose pieces to easily remove cable
Cam lever system offers a quick clamping mechanism once pulling grip passes through
Designed and assembled in USA
Specifications
Specs
Application: Used to assist feeding cables along non basket-style cable trays. Designed to aid loads right before 90° bends, vertical rises and drops, and on straight runs.
Cable Capacity: Up to 2'' (50.8 mm) in outer diameter
Height: 14-1/4'' (362 mm)
Length: 42-3/4'' (1085.9 mm)
Overall Height: 14-1/4'' (362 mm)
Overall Length: 42-3/4'' (1085.9 mm)
Pulling Force: 200 lb (90 kg)
Roller Opening Size: 0''- 2'' (0 mm - 50.8 mm)
Weight: Feeder: 57 lbs (25.9 kg)
Weight: Mounting System: 12 lbs (5.4 kg)
Width: 4-1/4'' (108 mm)
