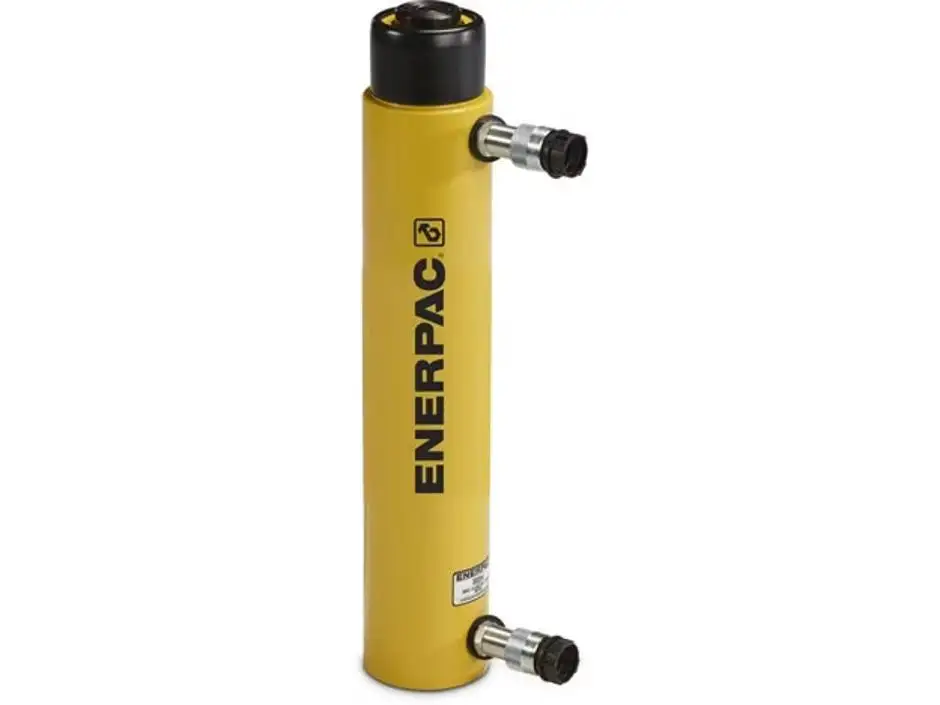

Enerpac RR3014 Hydraulic Cylinder, 32.5 Ton, 14.5 in Stroke - Reconditioned
Overview
Enerpac RR3014 Hydraulic Cylinder, 32.5 Ton, 14.5 in Stroke - Reconditioned
The Enerpac RR3014 is a general-purpose, double-acting hydraulic cylinder designed for rugged industrial applications requiring fast retraction and reliable performance. With a 32.5 ton advance capacity and 14.5-inch stroke, it's ideal for high-cycle use in demanding environments like construction and manufacturing.
Features
Collar and plunger threads for easy fixturing
Baked enamel finish for corrosion resistance
Removable hardened saddle protects plunger
Built-in safety valve to prevent over-pressurization
Plunger wiper reduces contamination
CR400 hydraulic coupler included
Included
Enerpac RR3014 Hydraulic Cylinder
Removable Hardened Saddle
CR400 Coupler
Specifications
Dimensions
Specs
Capacity (Advance): 32.5 tons (295 kN)
Capacity (Retract): 6 tons
Stroke: 14.5 in (368 mm)
Plunger Type: Solid
Return Type: Double-Acting, Hydraulic
Operating Pressure: 10,000 psi (700 bar)
Material: Steel
Surface Treatment: Painted (Enamel)
Coupler: CR400
Collapsed Height (A): 21.63 in (549 mm)
Extended Height (B): 36.13 in (917 mm)
Outside Diameter (D): 4 in (101 mm)
Cylinder Bore Diameter (E): 2.88 in (73.2 mm)
Plunger Diameter (F): 2.13 in (54.1 mm)
Weight: 64 lbs (29 kg)
