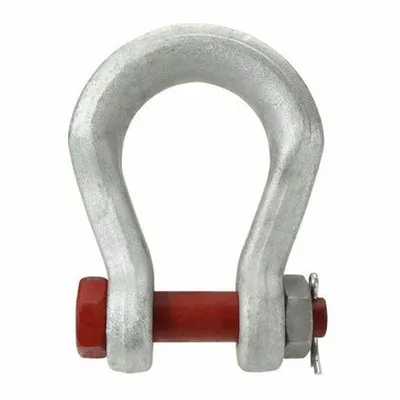

Crosby 1021287 G-2160 55 Ton Wide Body Sling Shackle - Reconditioned

Crosby 1021287 G-2160 55 Ton Wide Body Sling Shackle with One year Operational Warranty - Reconditioned
Description:
Increase in shackle bow radius provides minimum 58% gain in sling bearing surface and eliminates need for a thimble
Increases usable sling strength a minimum of 15% and greatly improves life of wire rope slings
Can be used to connect synthetic web slings, synthetic round slings or wire rope slings
All sizes Quenched & Tempered for maximum strength
Forged alloy steel from 7 through 300 metric tons
Cast alloy steel from 400 through 1550 metric tons
Proof tested as follows:
7 through 75 metric tons and 200 through 300 metric tons: 2 x WLL
125 metric tons: 1.6 x WLL
400 metric tons and higher: 1.33 x WLL

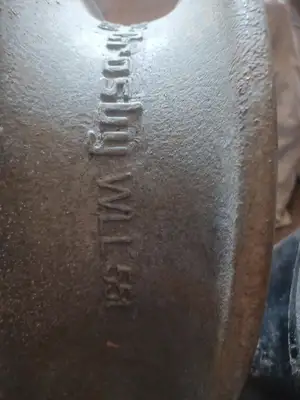

All ratings are in metric tons, embossed on side of bow
G-2160, (7 through 55t), are hot-dip galvanized and pins are painted red
G-2160 (75t and larger), bows are furnished Dimetcoted; Pins are Dimetcoted, then painted red
Shackles 30t and larger are RFID equipped
Approved for use at -40° C (-40° F) to 204° C (400° F)
Bow and bolt are certified to meet Charpy impact testing of 42 Joules (31 ft-lb) min. avg. at -20° C (-4° F)
All 2160 shackles are individually proof tested and magnetic particle inspected. Crosby certification available at time of order
Shackles requiring ABS, Lloyds and other certifications are available upon special request and must be specified at time of order
Type approved and certification to DNV Rules for Certification of Lifting Appliances, and are produced in
accordance with DNV MSA requirements; data book is provided that includes required documents:
Serialization / Identification
Material Testing (physical / chemical / Charpy)
Proof Testing
Look for the Red Pin®... the mark of genuine Crosby quality
