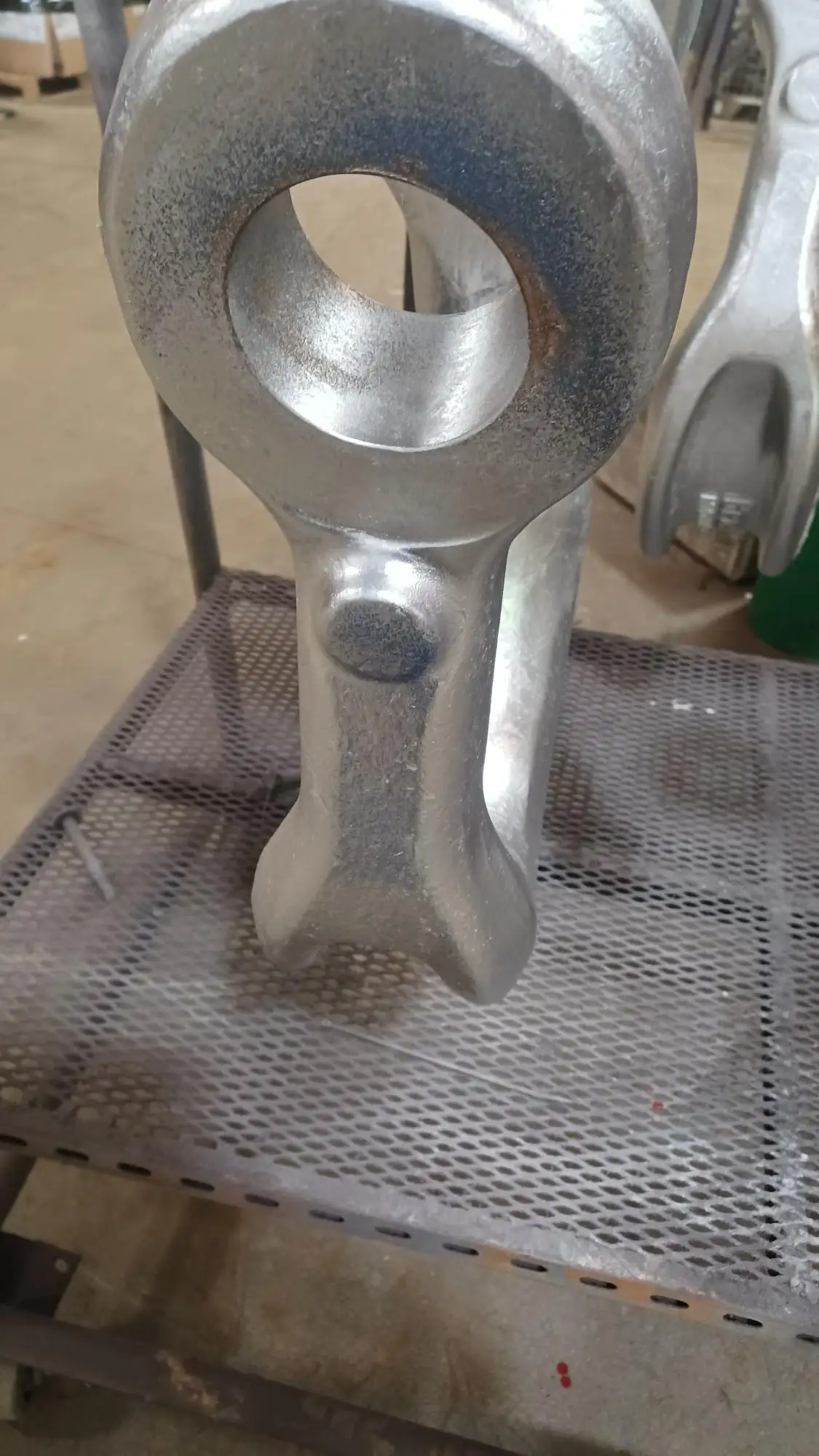

Crosby 1022110 G2160BNC 125 Ton Wide Body Sling Shackle - Reconditioned

Crosby 1022110 G2160BNC 125 Ton Wide Body Sling Shackle with One year Operational Warranty - Reconditioned
Description:
Increase in shackle bow radius provides minimum 58% gain in sling bearing surface and eliminates need for a thimble
Increases usable sling strength a minimum of 15% and greatly improves life of wire rope slings
Can be used to connect synthetic web slings, synthetic round slings or wire rope slings
All sizes Quenched & Tempered for maximum strength
Forged alloy steel from 75 through 300 metric tons
Proof tested as follows:
75 metric tons and 200-300 metric tons: 2 x WLL
125 metric tons: 1.6 x WLL
All ratings are in metric tons, embossed on side of bow
G-2160E, (75t and larger), bows are furnished Dimetcoted, and pins are Dimetcoted, then painted red
Shackles are RFID equipped
Approved for use at -40° C (-40° F) to 204 degrees C (400° F)
Bow and bolt are certified to meet Charpy impact testing of 42 Joules (31 ft-lb) min. avg. at -20° C (-4 degrees F)
All 2160E shackles are individually proof tested and magnetic particle inspected; Crosby certification available at time of order
Shackles requiring ABS, Lloyds and other certifications are available upon special request and must be specified at time of order
Shackles have DNV Type Approval to Rules for Certification of Lifting Appliances, and are produced in accordance with DNV MSA requirements; databook is provided that includes required documents:
Serialization / Identification
Material Testing (physical / chemical / Charpy)
Proof Testing
Look for the Red Pin®... the mark of genuine Crosby quality
MPN: 1021509
Model: G-2160E
Size: 6.8"
Type: Wide Body
Material: Alloy Steel
WLL (tons): 125
WLL (lbs): 275,000
Safety Factor: 5:1
Overall Length: 23.00"
Overall Width: 15.47"
Throat Opening: 5.12"
Pin Diameter" 3.15"
Approx. Weight (lbs): 190

  .
