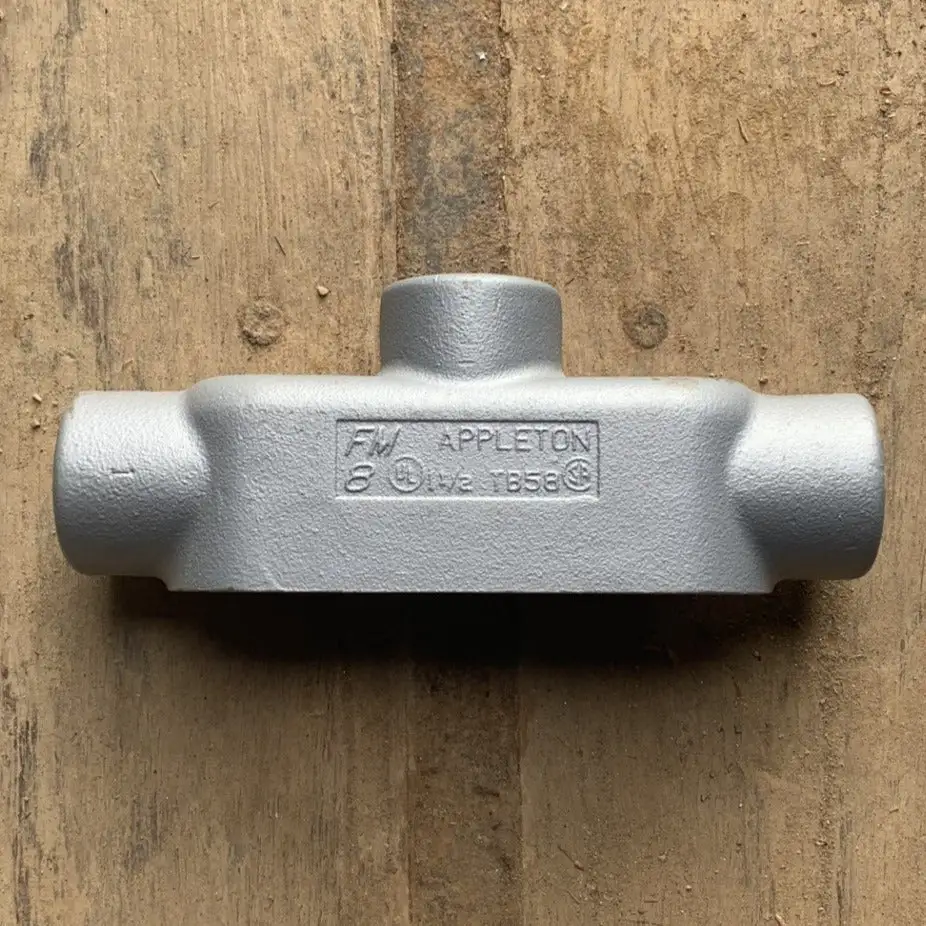

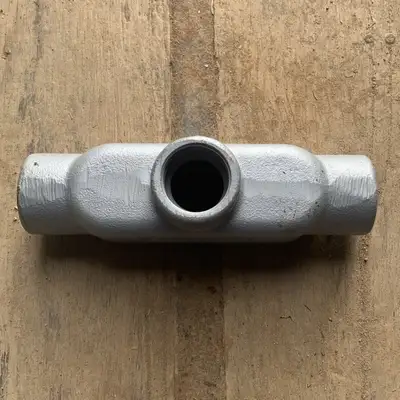

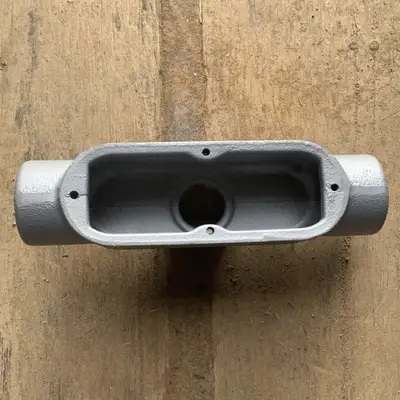

Appleton TB58 Conduit Body 1-1/2 in. - Used

Appleton TB58 Conduit Body 1-1/2 in. - Used
Description:
The Appleton Electric TB58 is a 1-1/2 inch FM8 copper-free aluminum Unilet Type TB conduit outlet body designed for use in Class I Div 2 and NEMA 3R environments. The body and stamped cover are made of natural finish copper-free aluminum, while the cover screw is stainless steel and the gasket is neoprene. Measuring 10.38 inches in length and 4.03 inches in height, the outlet body has a capacity of 38.5 cubic inches and features three hubs in a tee configuration with back access opening. It is suitable for use with rigid and IMC conduit, and is approved to UL 514A/B and CSA C22.2 standards. The TB58 is designed for commercial, industrial, wet location, and hazardous location applications, and complies with NEC, CEC, and NEMA FB-1 standards.
