USED MULTICAM 1-103-P

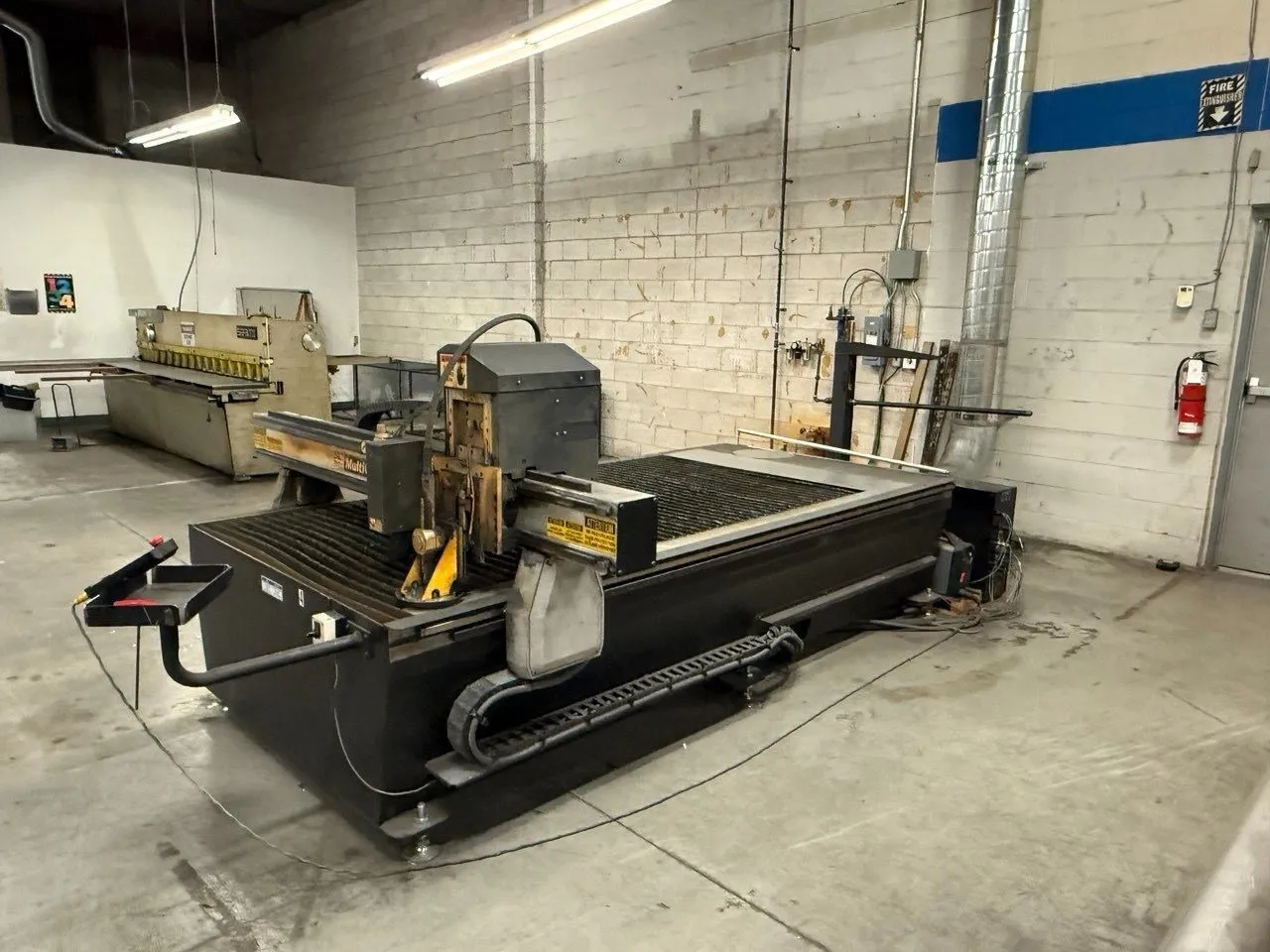

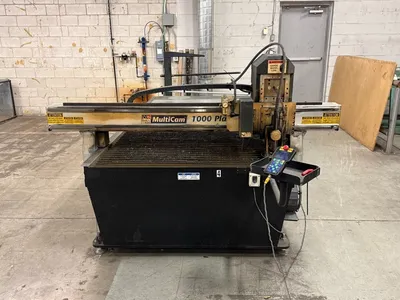

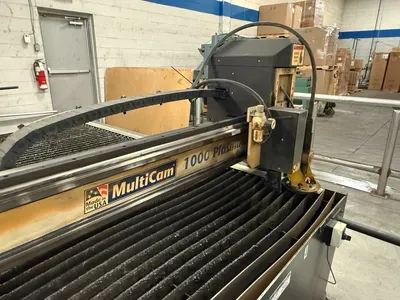

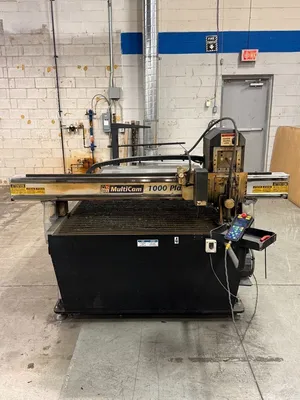

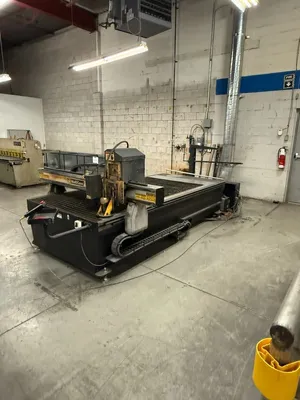

2017 MultiCam 1000 Series 1-103-P 50×100 CNC Plasma Cutting Table w/ Hypertherm Powermax45 XP

MAKE: MultiCam
MODEL: 1000 Series 1-103-P
MFG DATE: 2017
TYPE: CNC Plasma Cutting Table

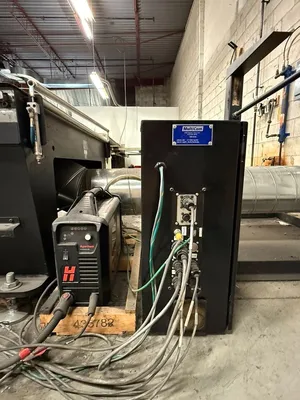

PLASMA SOURCE: Hypertherm Powermax45 XP

POWER: 220 V / 1 Ph / 50–60 Hz / 7.5 A

SPECS:
Table / Working Area: 50 IN × 100 IN
X/Y Drive: Rack & Pinion
Drive Motors: 2-Phase Digital Brushless Synchronous Motors
Repeatability: ±0.001 IN
Cutting Speed: Up to 800 IPM
Rapid Traverse: Approx. 1,200 IPM

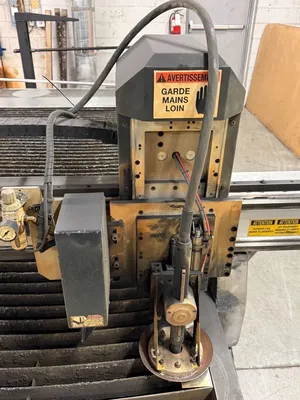

Z-Axis Clearance: Approx. 2.6 IN
Z-Axis Travel: Approx. 3.5 IN

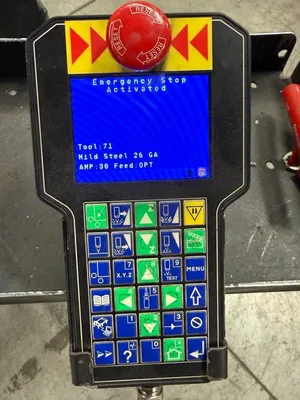

CNC Handheld Operator Control

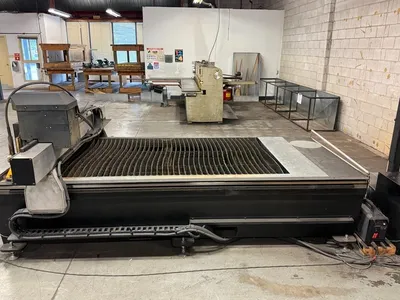

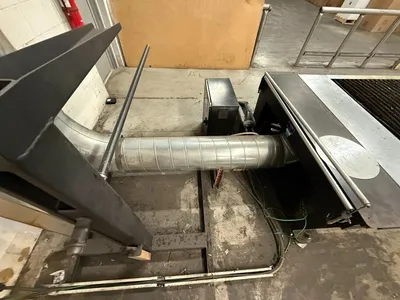

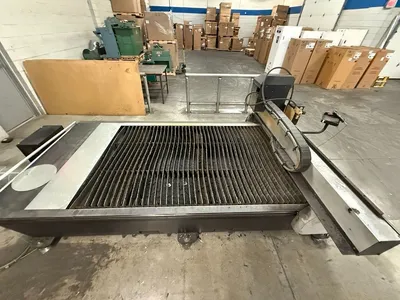

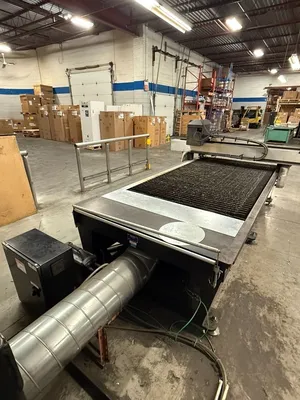

Downdraft-Style Cutting Table
Heavy-Duty Steel Frame

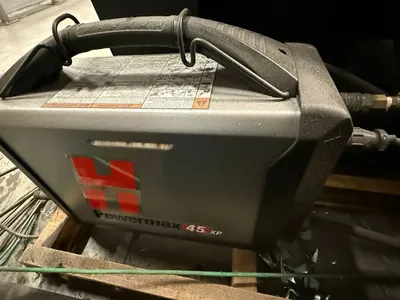

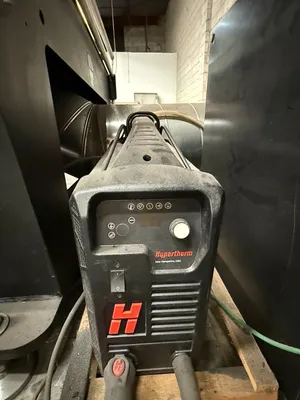

HYPERTHERM POWERMAX45 XP SPECS:
Output Current: 10–45 A
Rated Output Voltage: 145 VDC
Maximum Rated Output: 45 A
Duty Cycle: 50% @ 45 A / 60% @ 41 A / 100% @ 32 A
Recommended Cut Capacity: 5/8 IN
Maximum Recommended Cut: 7/8 IN
Severance Capacity: 1-1/8 IN
Mechanized Pierce Capacity: 1/2 IN

WEIGHT: 2,600 LB
DIMENSIONS: 135 IN × 74 IN × 53 IN
