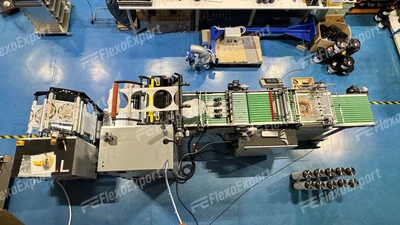

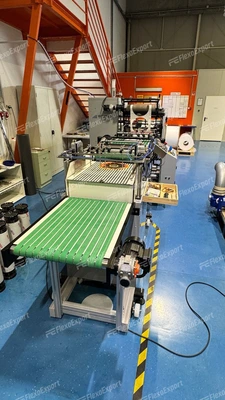

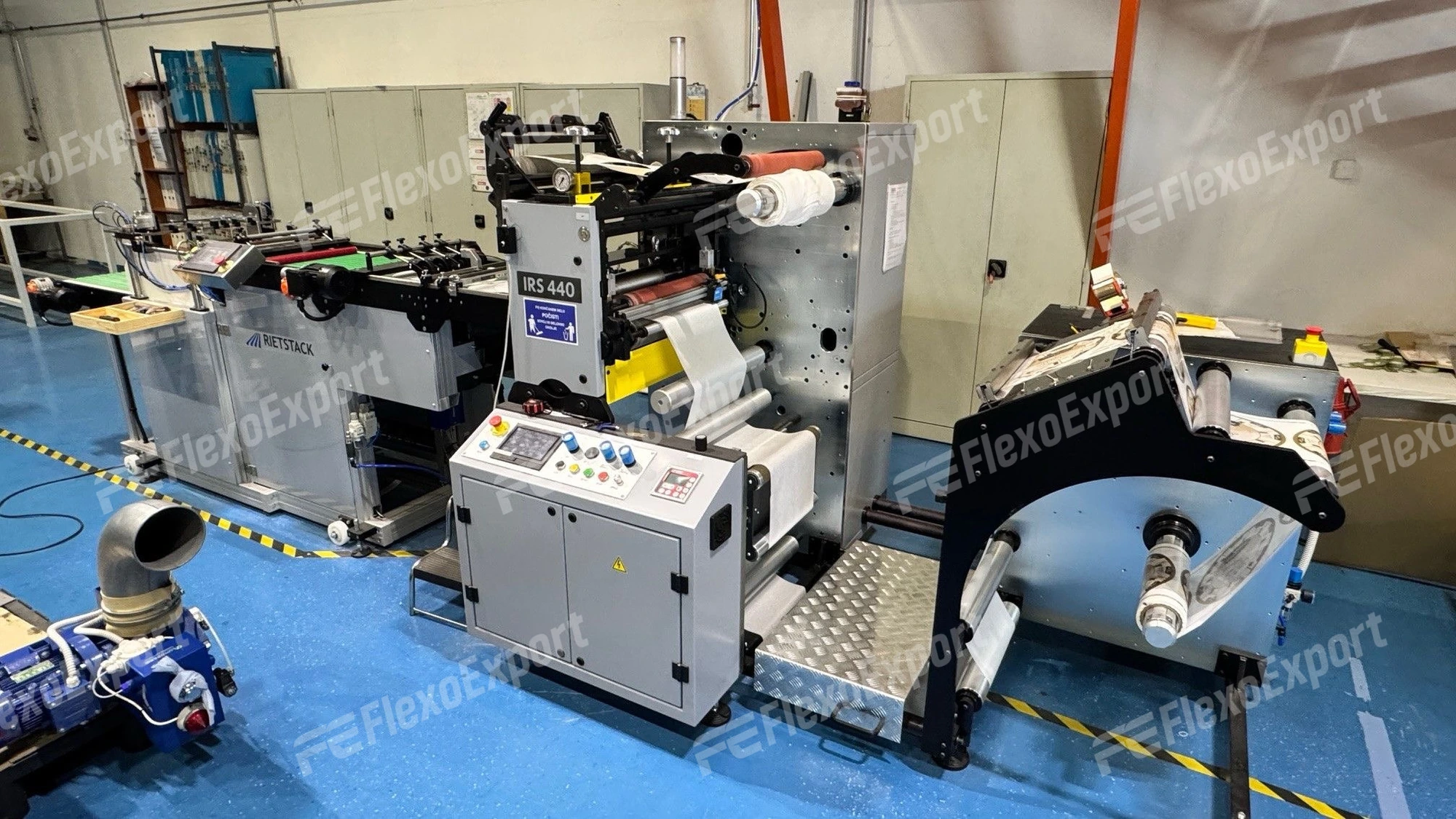

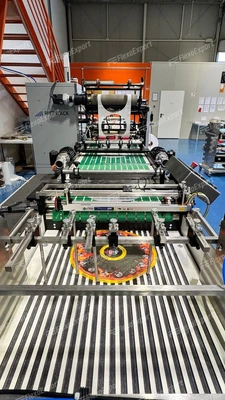

USED 2023 RIETSTACK IRS 430

2023 RIETSTACK IRS 430 16.5-inch used die cutter with non-stop stacker featuring maximum mechanical speed of 200m/min, electric power 3x400V 50 Hz (5P-32A), compressed air 6 bar, module unwind unit (equipped with pneumatic unwind spindle – 76mm, maximum unwind diameter – 800mm, micro-processor control system, electronic counter (labels/meters), splice table with 2 pneumatic clamps, precise adjustment of rewind and unwind web tension, electronic correction of web tension on unwind, flag detector, automatic stop at roll end, de-curl-bar-unit), web guide BST, splice table with 2 pneumatic clamps, die cutting station standard (including matrix rewinder, maximum working width of magnetic cylinder – 420mm, magnetic cylinder repeat size – 96T-220T, magnetic cylinder one included – 96T, die-cutting unit driven by servo drive, nip roller servo driven, matrix rewind spindle is driven by servo, matrix rewind spindle-diameter – 76mm, maximum rewind diameter-matrix – 600mm, matrix pneumatic pressure roller, hydraulic pressure read out 2 clocks, modified pressure bridge allowing to lift the magnetic die cylinder without hoist to mount the magnetic die plate, matrix pneumatic pressure roller), nonstop stacker running max. 4 streams, delivery conveyor servo driven with vacuum belts and vacuum pump, Simco antistatic bar: 3 pcs, max. width 420 mm, max. stack length 630 mm, max. stack height 120 mm, max. stack speed 80 m/min, stack height control by counting the sheets in the stack, speed dependable on material, stacks delivery by pushout system, stacker running full automatic continuous running mode, min size for ready stacks production is 50x50mm, smaller labels can be collected at the end of the conveyor, control panels with HMI touch screen panels
