USED LEVER 500

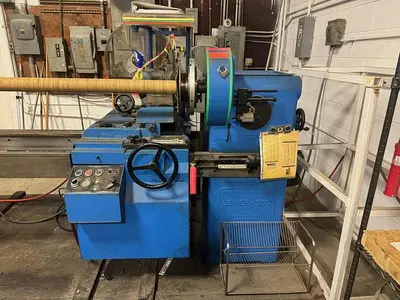

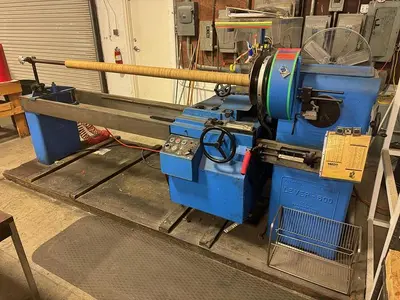

Used 85" Wide Lever 500
Max OD of material 14”
Two (2) blades included 10.5” and 11.5” OD.
Replacement blades can be ordered from Lever
Misting system equipped

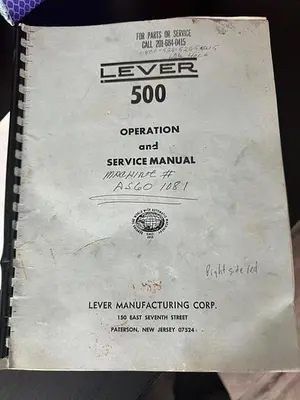

Manual shown in photos included
__________________________________________
Will handle up to 14” diameter roll
Shaft length –85”- (distance from chuck face to shaft support)
Spray mist system
4 speed gear box for knife
Standard external 4 pin chuck
220 volt 3 phase
Locked knife for material requiring it
Attached grindstone and diamond dressing tool with separate motor.
Adjustable automatic dwell time control
Separate reversible heavy duty chuck drive with variable speed
adjustment
Clear polycarbonate knife guard automatically stops machine when
lifted
Machine equipped with both automatic and manual mode setting
Completely enclosed easy-to-adjust spacer can be set to ultra-fine tolerances.
Knife carraige locked into pre-set spacing with electro-magnetic brakes that will not slip or cause wear on rails. Instant change from automatic to semi-automatic or manual operation.
