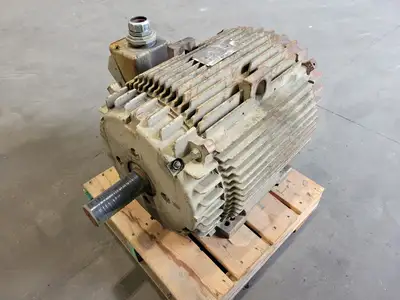

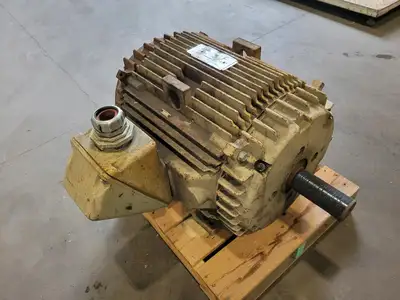

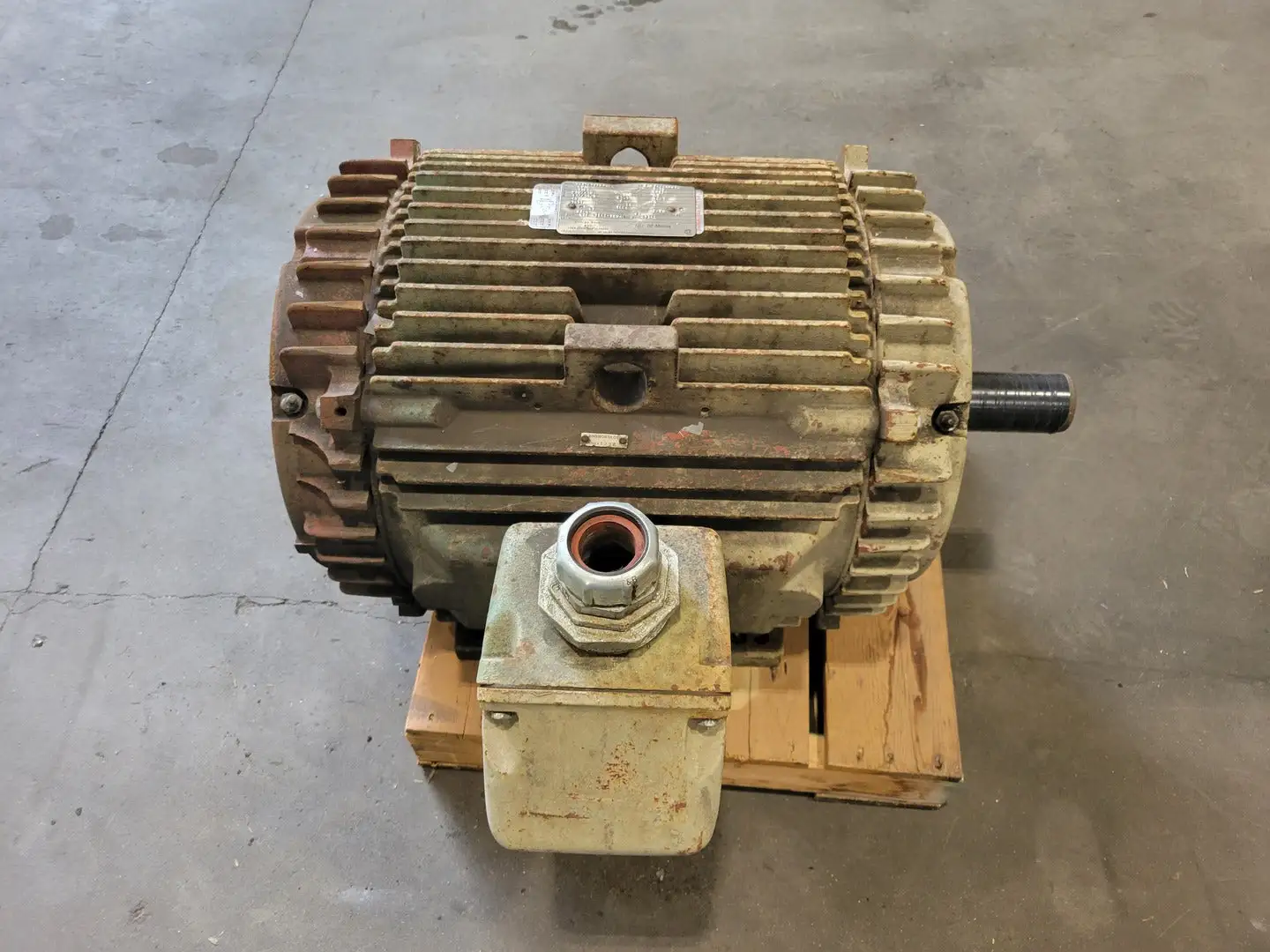

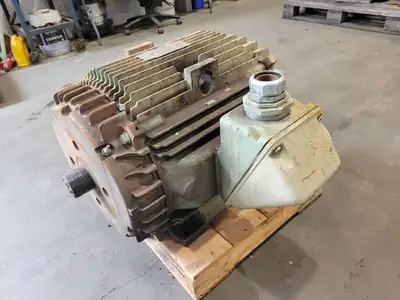

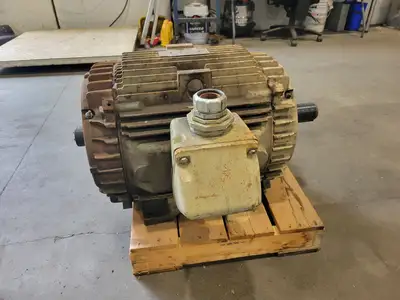

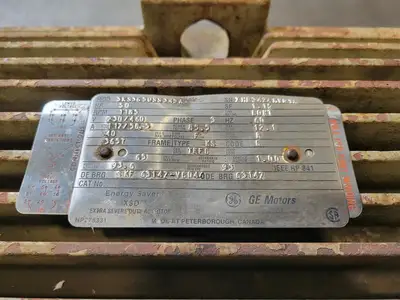

USED GE MOTORS 5KSG363SS249A
Specs
Current Type: AC
Horsepower: 30 hp
Voltage: 230/460 volts
Phase: 3-phase
RPM: 1185 rpm
Frame: 365T
Duty: Continuous
Series: Energy $aver XSD
Motor Type: Extra Severe Duty AC Motor
Current: 77 / 38.5 A
Frequency: 60 Hz
Type: KS
Enclosure: TEFC
Service Factor: 1.15
Alternate Service Factor: 1.00 at 60°C maximum ambient
Insulation Class: F
NEMA Design: B
NEMA Code: G
Power Factor: 81.5%
NEMA Nominal Efficiency: 93.6%
Guaranteed Minimum Efficiency: 93%
Maximum Ambient Temperature: 40°C
Maximum KVAR: 12.1
Standard / Reference: IEEE RP 841
Mounting: Horizontal foot mounted
Shaft Configuration: Double-ended / shaft extension visible at both ends
