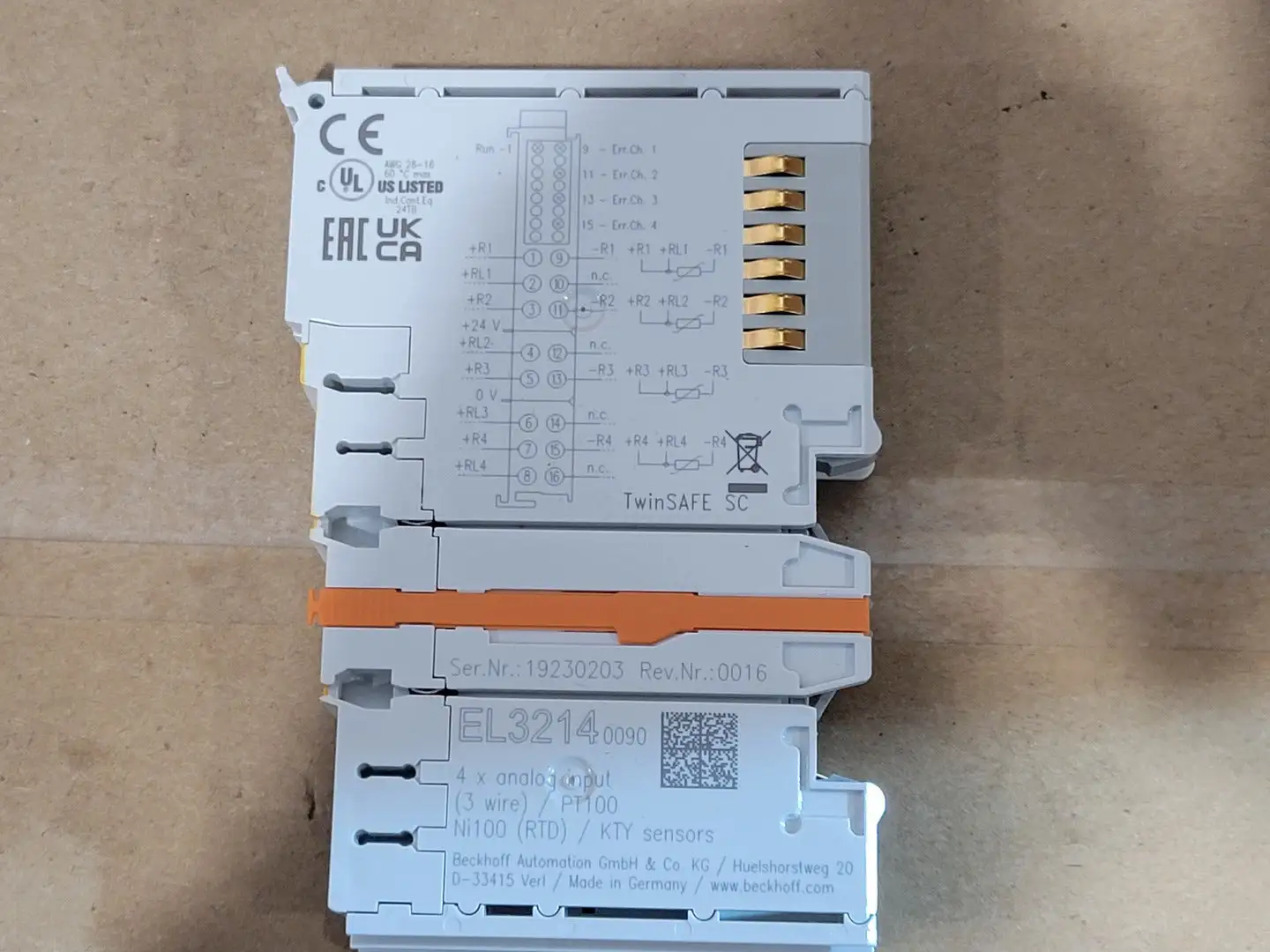

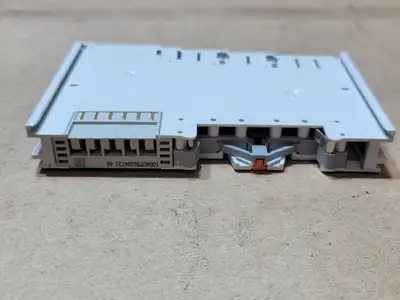

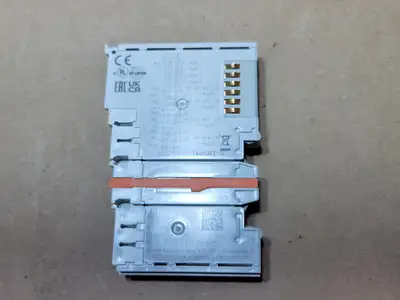

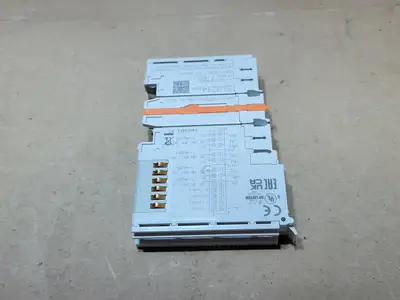

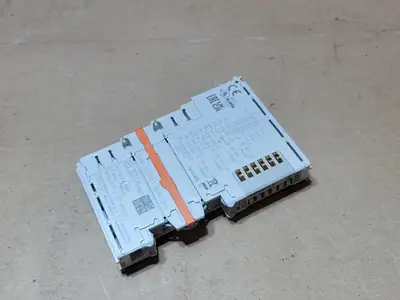

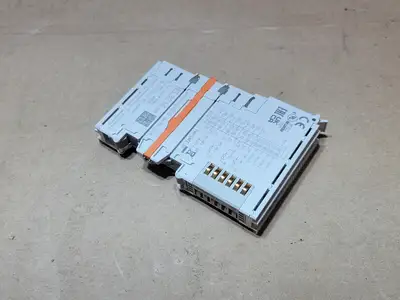

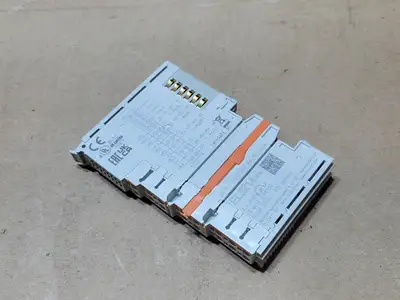

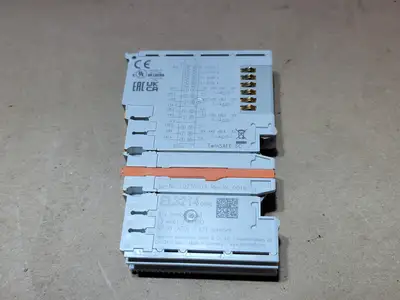

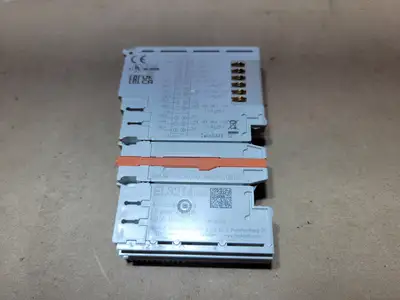

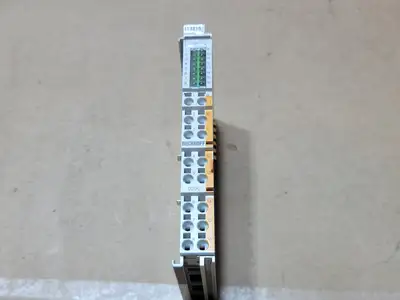

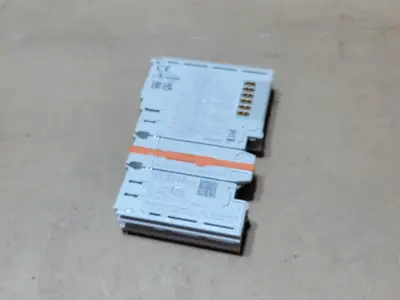

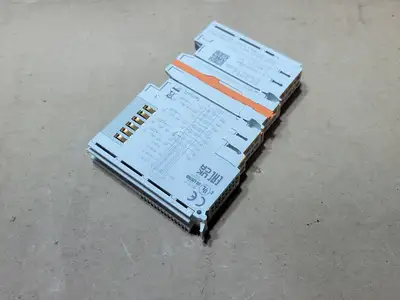

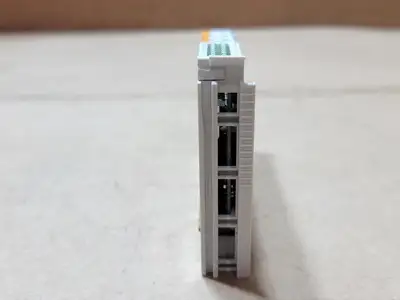

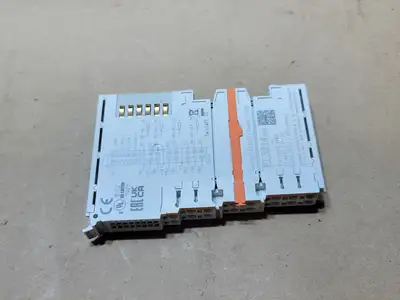

NEW BECKHOFF AUTOMATION EL3214-0090

Module type: EtherCAT analog temperature-input terminal
Safety technology: TwinSAFE SC / Single Channel
Number of inputs: 4
Input type: Differential resistance/temperature measurement
Resolution: 16-bit; 0.1°C per digit by default
Supported Pt sensors: Pt100, Pt200, Pt500 and Pt1000
Supported Ni sensors: Ni100, Ni120 and Ni1000
Other supported sensors: KT/KTY types and resistance measurements
Wiring: 3-wire; 2-wire supported from applicable firmware
Pt temperature range: -200°C to +850°C
Ni temperature range: -60°C to +250°C
Measurement current: below 0.5 mA
Typical conversion time: 170 ms
Input filter cutoff:1 kHz
ADC method: Delta-sigma
Measurement error: Below 0.5°C for Pt sensors using four 3-wire channels
Power source: EtherCAT E-bus
Typical E-bus consumption: 140 mA
Electrical isolation: 500 V between E-bus and signal voltage
Configuration: Beckhoff TwinCAT
Mounting: 35 mm DIN rail
Protection rating: IP20
