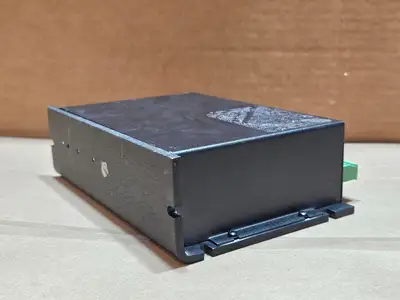

USED APPLIED MOTION PRODUCTS SI3540

Type: Programmable Step Motor Driver / Indexer

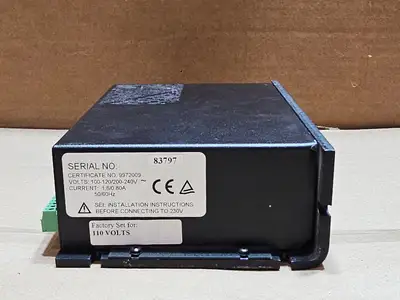

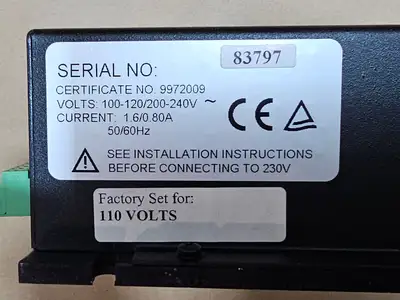

Input Voltage: 100-120 / 200-240 VAC, single-phase

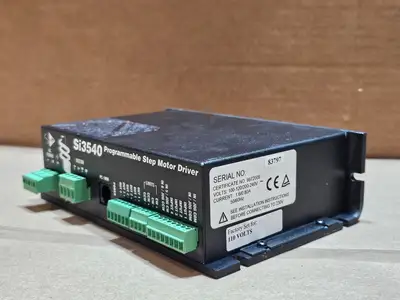

Factory Voltage Setting: 110 VAC
Input Current: 1.6 A at lower-voltage input / 0.80 A at higher-voltage input,
Frequency: 50/60 Hz
Motor Output Current: Up to 3.5 A per phase
Internal DC Bus: 40 VDC
Step Resolution: Microstepping, up to 50,800 steps/revolution
Programmable Inputs: 8
Programmable Outputs: 3
Communication: RS-232
Programming Port: PC / MMI

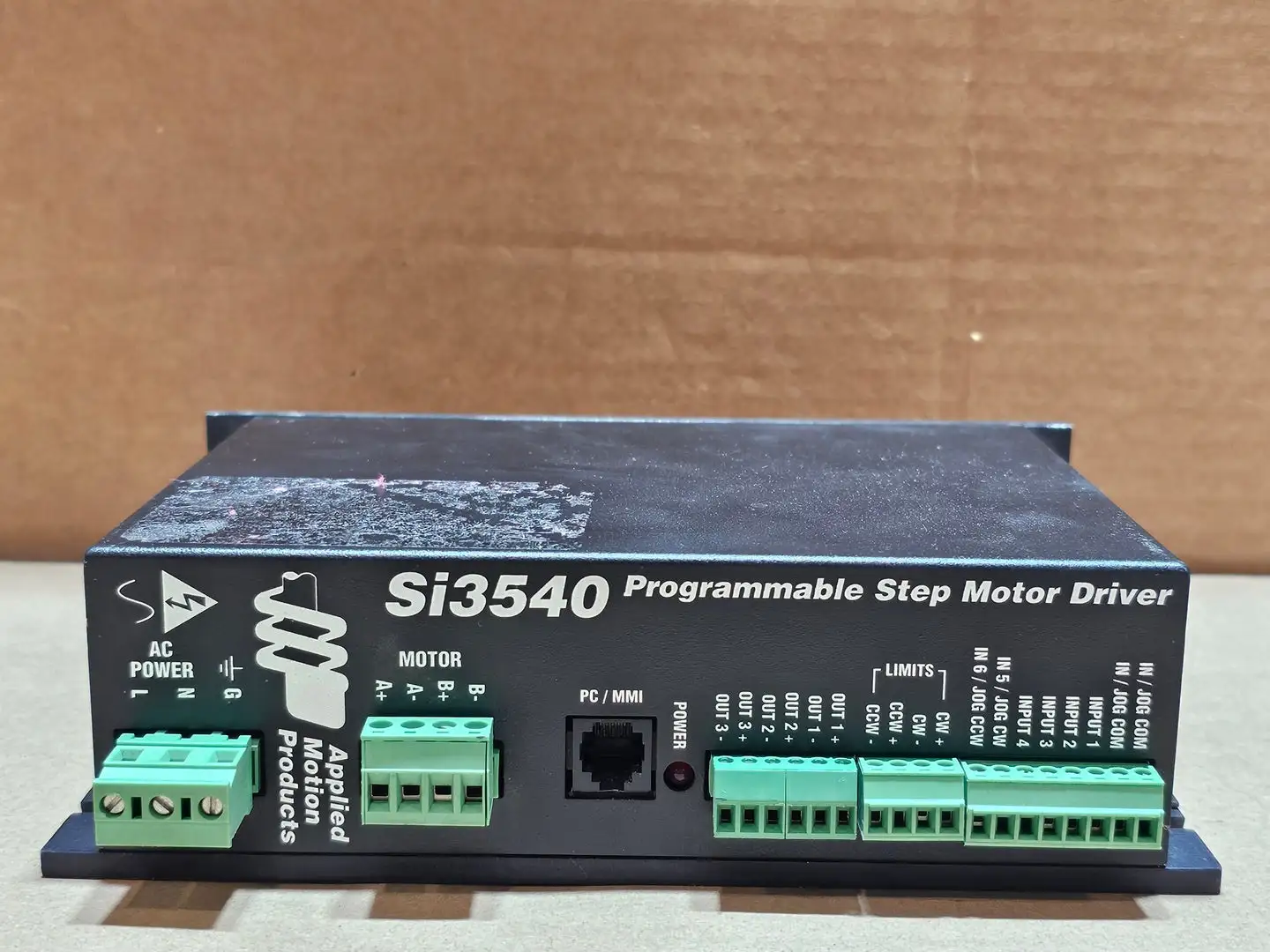

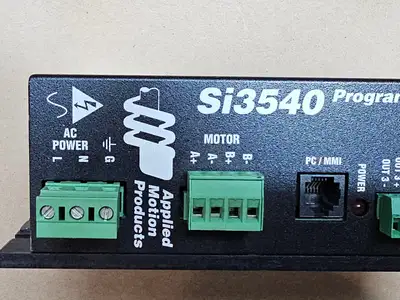

Motor Connections: A+, A-, B+, B-
AC Power Connections: L, N, G

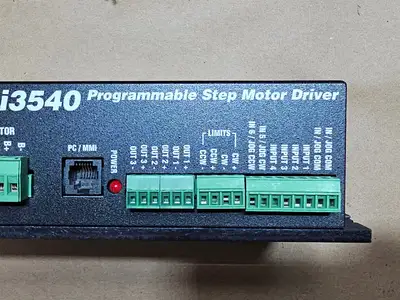

Limit Inputs: CW+, CW-, CCW+, CCW-
Input Functions Visible: Inputs 1-4; IN 5 / Jog CW; IN 6 / Jog CCW; additional limit/input functions
External Trigger I/O: Optically isolated, 5-24 V, sinking or sourcing
Idle Current Reduction: Programmable 0%, 25%, 50%, or 100%

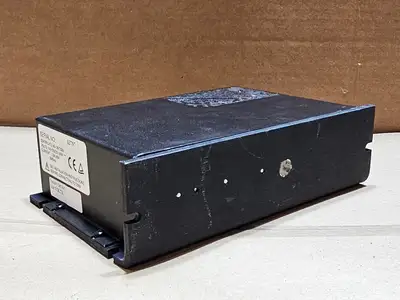

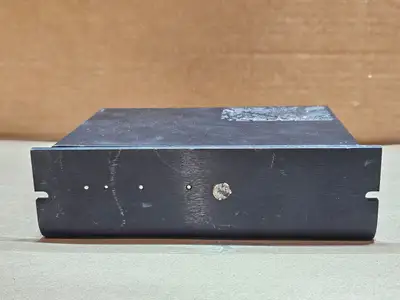

Chassis Construction: Metal enclosure
