Integra Mini 96-Channel Electronic Pipette

From 2024! With 2-place holder and 5-125 µl volume range.

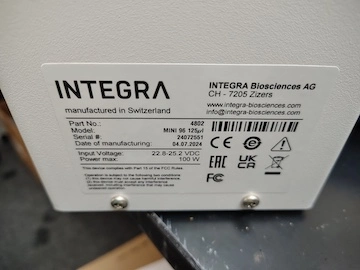

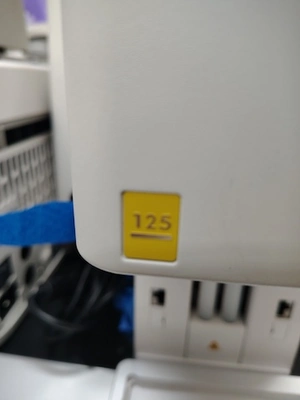

INTEGRA MINI 96 (Part No. 4802) is a compact, portable 96-channel electronic pipette made in Switzerland by INTEGRA Biosciences. It simultaneously aspirates and dispenses into 96- or 384-well plates (shallow or deep well) using air-displacement technology and GRIPTIPS®. This unit is the 5–125 µl model (labeled MINI 96 125ul), manufactured in 2024. Input: 22.8–25.2 VDC, max 150 W (via 100–240 VAC adapter). With a two-position / 2-place holder for source + target labware or partial-plate work.

From 2024.

Key Features / Specifications

96 channels, 5–125 µl range — Volume increment 0.1 µl. At 125 µl: accuracy ±1.5%, precision ≤1.0% (all channels, neat transfer in Pipet mode). Also specified at 12.5 µl and 62.5 µl.

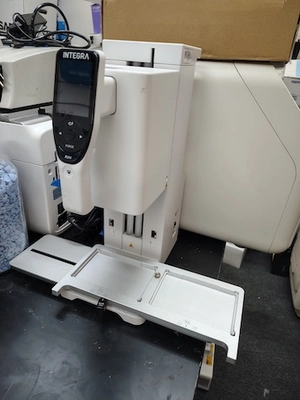

Two labware positions — Base stage plus removable second stage (or optional Two Position Stage). Enables reservoir-to-plate, plate-to-plate, partial-plate filling, and column-wise work without constant plate swapping.
Portable benchtop size — Approx. 16 × 26 × 40 cm (W × D × H) and 8.8 kg for the 125 µl model. Easy to move in/out of laminar flow cabinets.
Electronic tip loading / GRIPTIPS — Motorized load and eject of 96 tips; GRIPTIPS lock on and do not loosen or drip. Compatible with 96- and 384-well formats (384 filled in four offsets).
Simple handheld electronic operation — Touch-wheel / screen interface, programmable pipetting modes, two-step blowout. Operating range 5–40 °C, <80–85% RH non-condensing. Power via external adapter as labeled on the plate.

Comes with our 90-day warranty.
