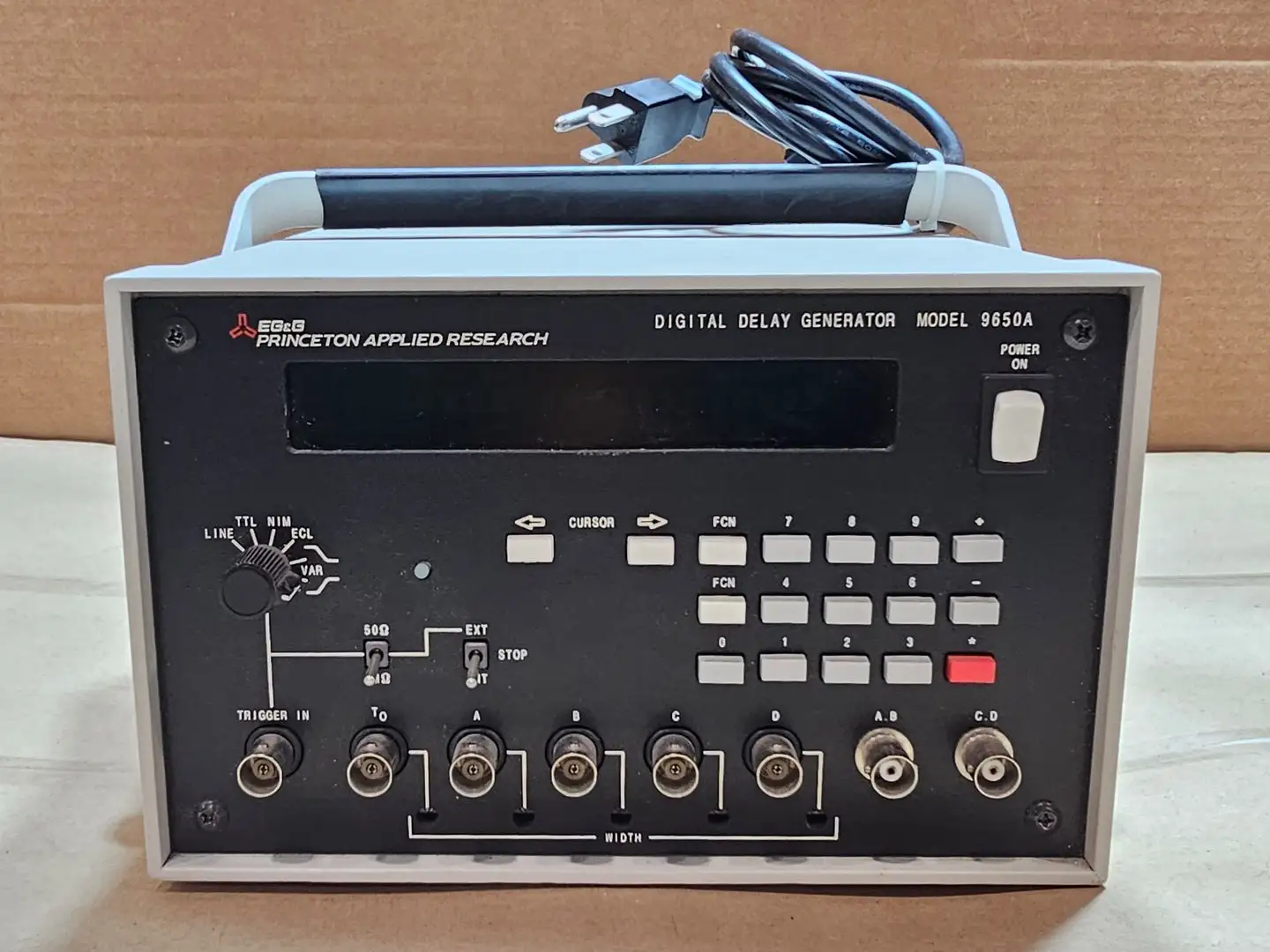

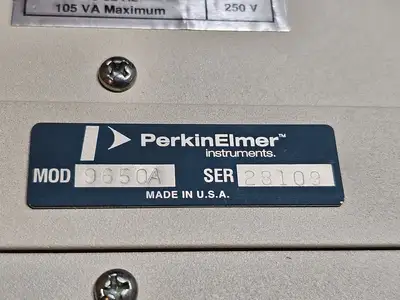

USED PERKINELMER INSTRUMENTS 9650A

Equipment Type: Digital Delay / Pulse Generator
Number of Delay Channels: 4 independently adjustable channels - A, B, C and D
Published Delay Range: 0 to 100 ms
Reference Output: T0
Additional Outputs: A-B and C-D
Typical Insertion Delay: 35 ns from input trigger to T0
Triggering: Internal or external
Computer Interface: GPIB / IEEE-488 installed
Setup Storage: Published documentation indicates automatic storage of the current setup plus storage for up to 30 additional setups.

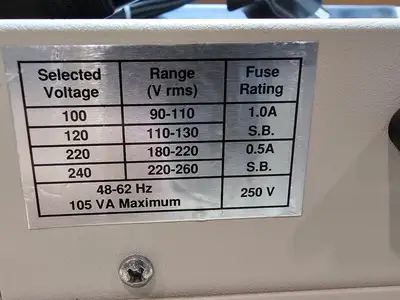

Selected Input Voltages: 100 / 120 / 220 / 240 V AC
100 V Range: 90-110 V RMS
120 V Range: 110-130 V RMS
220 V Range: 180-220 V RMS
240 V Range: 220-260 V RMS
Frequency: 48-62 Hz
Maximum Input: 105 VA
Fuse Voltage Rating: 250 V
100 V Fuse: 1.0 A
220 V Fuse: 0.5 A
120 / 240 V Fuse: Slow-blow designation

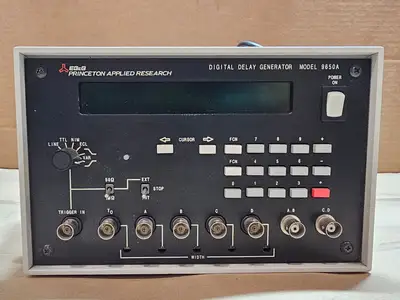

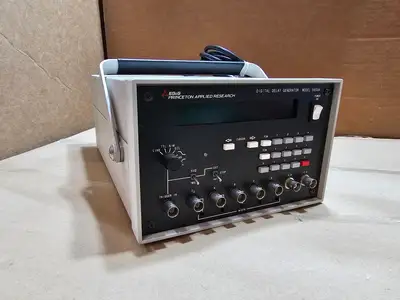

Front Connections: BNC

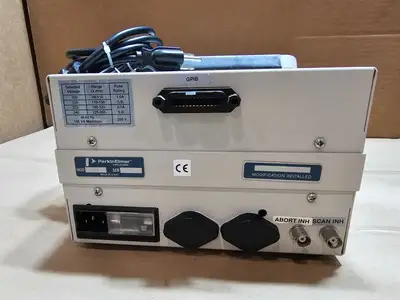

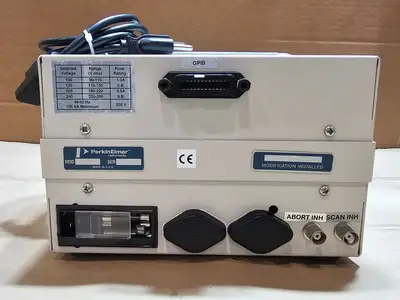

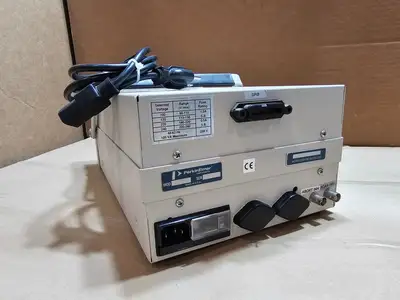

Rear Connections: GPIB plus BNC connections marked Abort Inhibit and Scan Inhibit

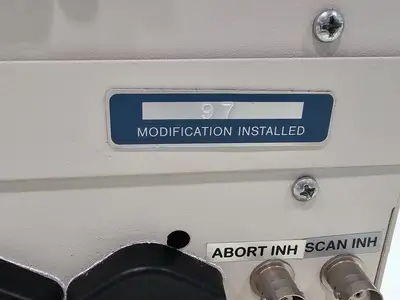

Modification Marking: 97

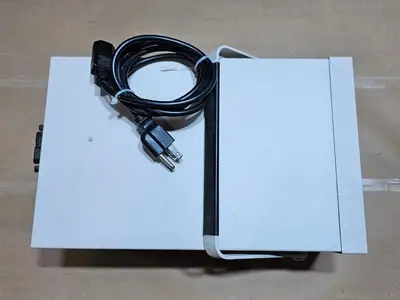

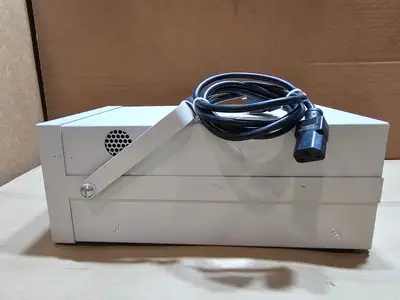

Power Cord: Detachable IEC power cord
