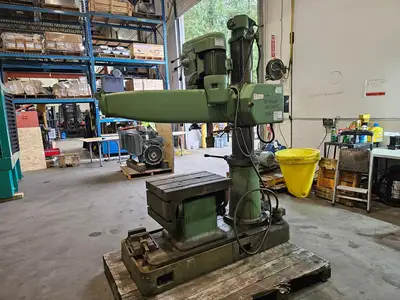

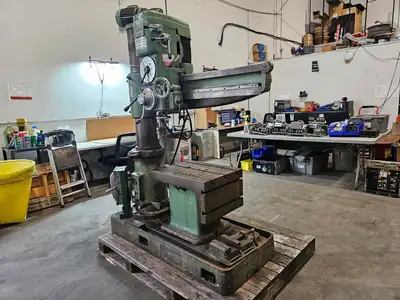

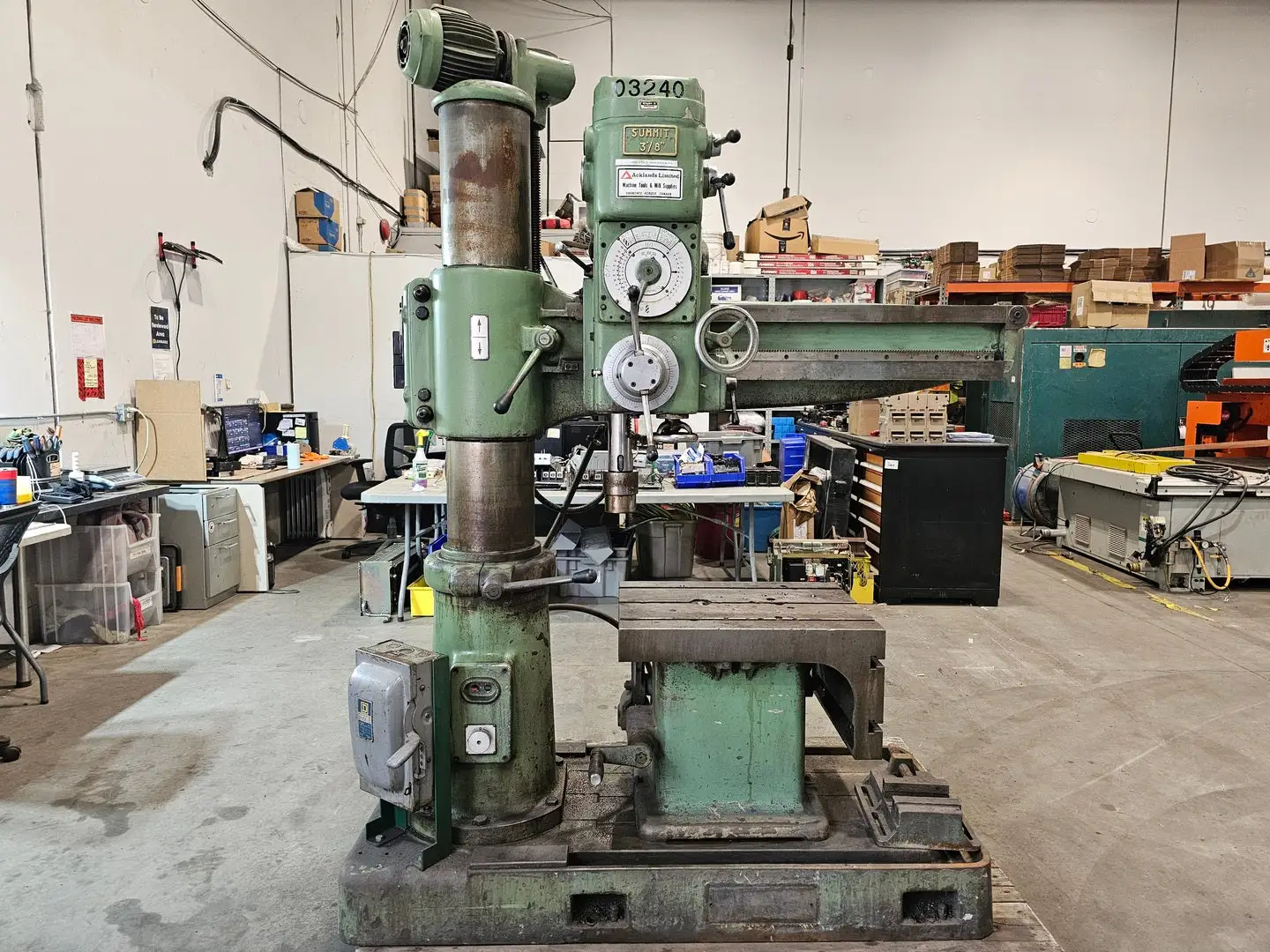

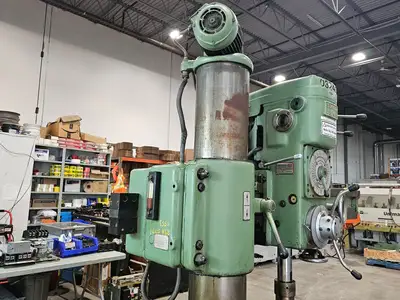

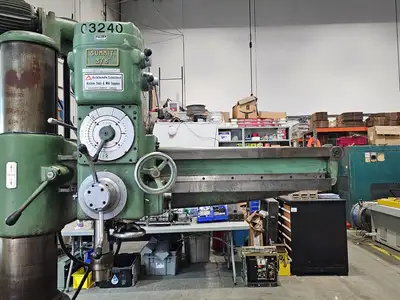

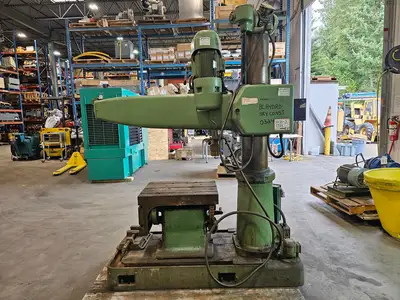

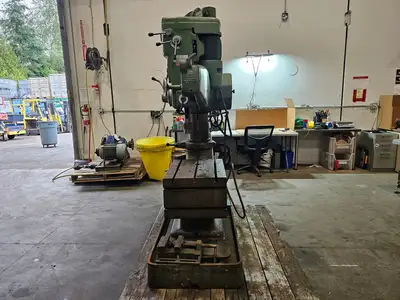

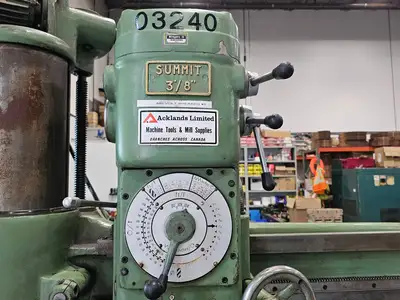

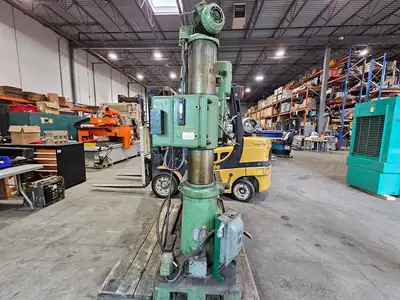

USED SUMMIT 3' X 8"

Type: Radial Arm Drill
Arm Travel: 3'

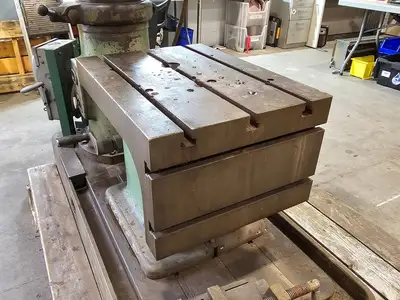

Table Size: 23-5/8" x 17-3/4"

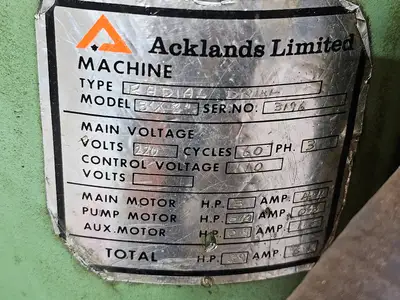

Horsepower: 3.9 hp
Voltage: 220 volts
Phase: 3-phase
Drive Type: Gear Drive
Diameter of Column: 8 "
Control Voltage: 110 V
Spindle Opening Diameter: 1-3/8"

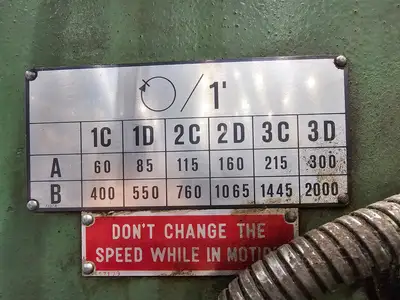

Speed: 40 - 2000 pm (14 steps)
Drill Diameter Reference Range: 7/64" to 1-9/16"
FPM Reference Range: 6'7" to 246'
Recommended Drilling Speeds:
Steel: 70 to 82 FPM
Iron: 50 to 82 FPM
Bronze: 100 to 197 FPM
Aluminum: 131 to 263 FPM

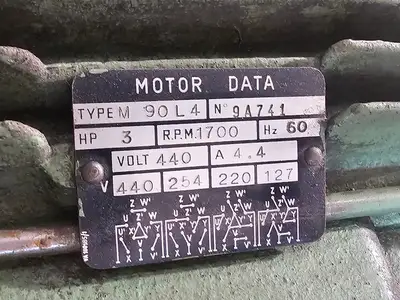

Main Motor
Horsepower: 3 hp
Voltage: 440 V
Current: 4.4 A
Speed: 1700 rpm

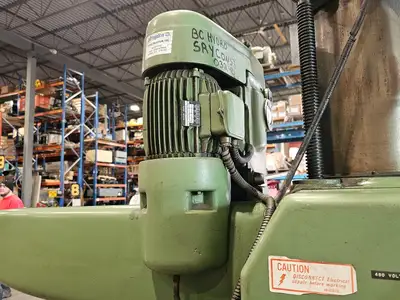

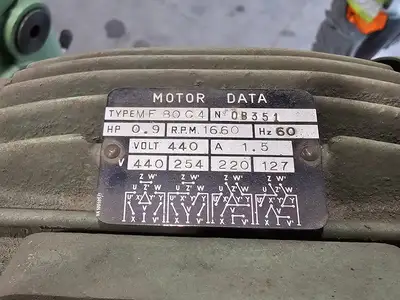

Auxiliary Motor
Horsepower: 0.9 hp
Voltage: 440 V
Current: 1.5 A
Speed: 1660 rpm
Pump Motor
Horsepower: 0.010 hp
Current: 0.3 A
