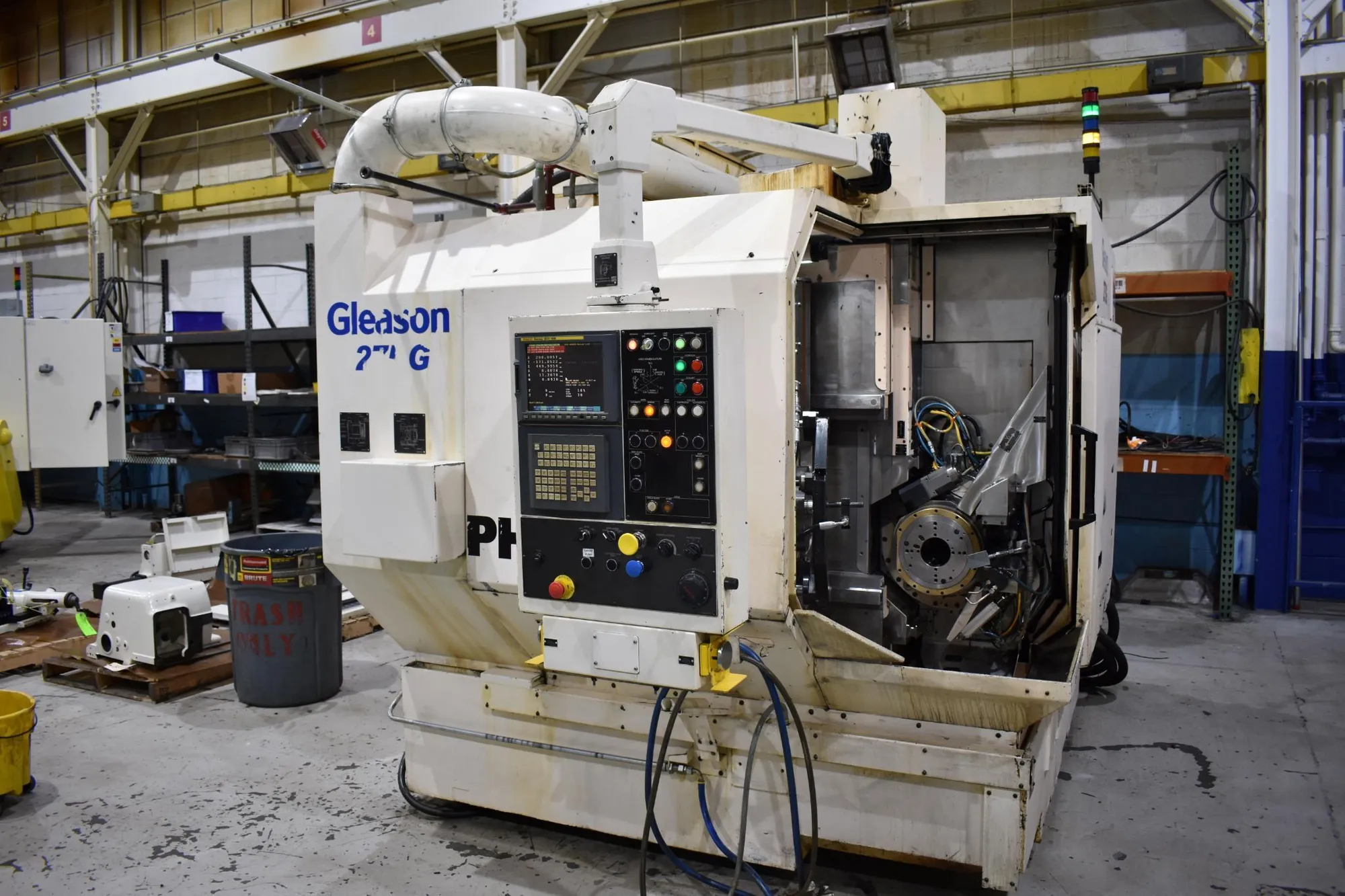

USED 2011 GLEASON 275 G

Gleason Phoenix model 275G CNC Straight & spiral bevel Gear grinder , 10" diameter capacity , w/ Fanuc 160i-MB controls, excellent condition under power new 2010 & 2011

Gleason Phoenix II CNC Straight & spiral Bevel Gear grinders
Model 275-G
s/n 1006506 & 991709
New 2011 & 2009

Machines were recently running Spiral Bevel Gears under power in
plant. Machines can be inspected in Excellent running condition .
we highly recommend a prompt inspection. One machine is under
power in our warehouse and its s/n 1006506 new 2011. these
Machines also share a single filtration unit!

Machine specifications :
Ratio transmission : 10:1
Minimum number of teeth : 3
Maximum number of teeth : 200
Range of tooth size : 20 mm
Tooth width maximum : 58 mm
Spindle speed : 6000U/min
Work piece spindle speed : 1200U/min
Diameter of tools maximum : 230 mm
Diameter of tools minimum : 69,85 mm
X-axis : 325 mm
Y-axis : 350 mm
Z-axis : 470 mm
B-axis : + 90,1 / - 1 °
Work piece table - Ø : 212,71 mm
Total power requirement : 75 kW
weight of the machine ca. : : 10t
dimensions of the machine ca. : 8' x 12'

Machines are equipped with the following:
Fanuc model 160i-MB cnc controls
Hoffman HSF 200-SE coolant filtration unit (shared system)
Books and manuals
all necessary items to run machine

Note: Machines can grind straight Bevel gears as well
with the proper software & tooling
Inquire if you have interest

please contact us to set up an under power viewing in our
Location. the machines are in very good running condition .
contact us at www.pisellient.com to receive formal quote on
Line or contact rich Piselli at [email protected] to view
machines. Videos are available upon request !!
