USED 2001 DEGEN UTB 600 E

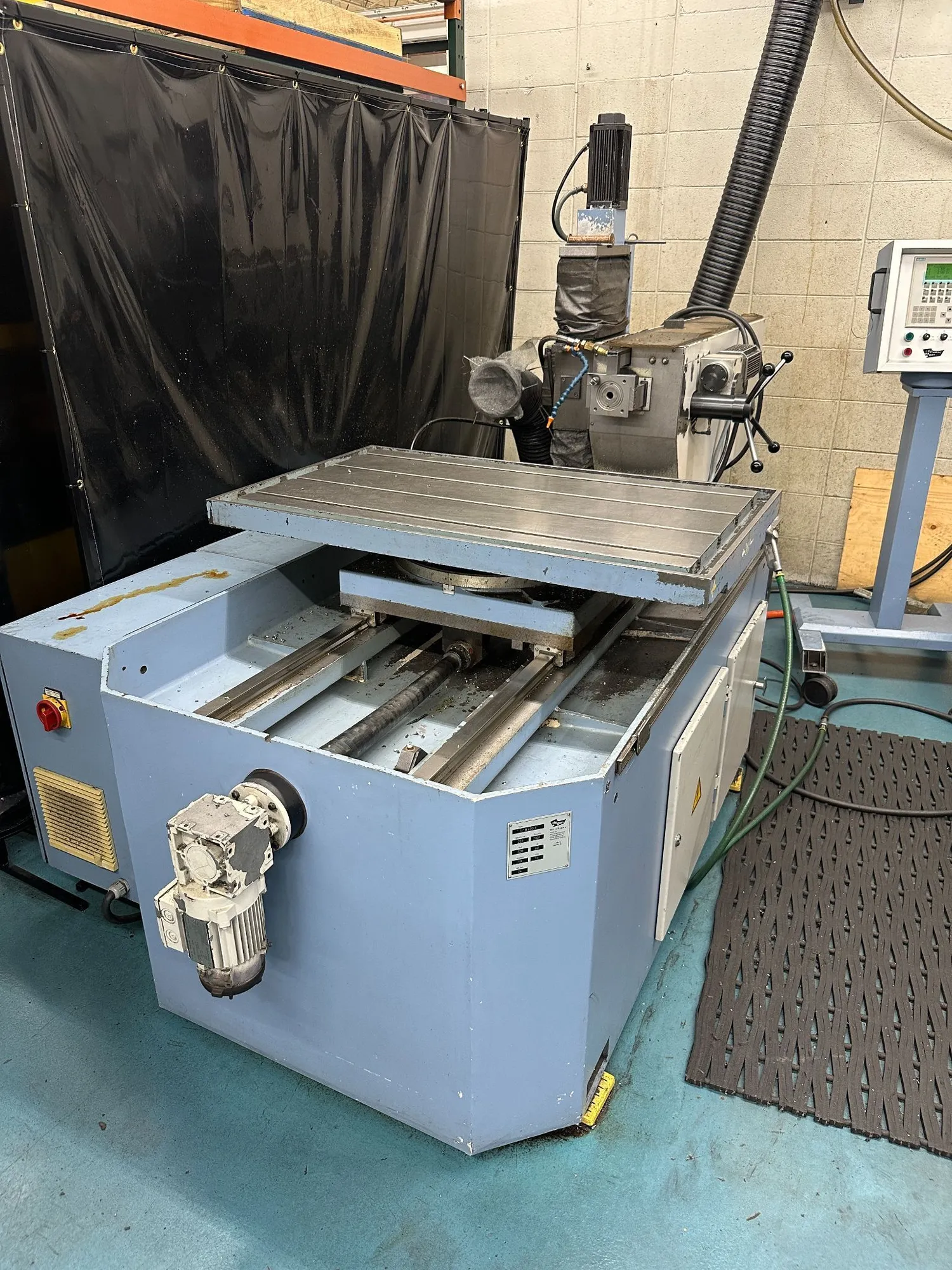

Degen UTB 600 E Deep Hole Drill (2001)

Technical details / accessories / comments:
X axis (cross) 700 mm
Y axis (vertical) 300 mm
Z axis (drilling axis) 900 mm Drilling depth
W axis (workpiece table adjustment) 750 mm
A axis (swivel range) +/- 20 °
Table size 1100 x 650 mm
Table load Max. 2000 kg
Swiveling table stepless 360 °
rotational speed 0 – 3000 rpm
Drilling area 4 – 20 mm
Threading M 16
Tool holder MK 2
Coolant type MQL / cooling water
Coolant pressure (air) Max. 8 bar
Amount of coolant 1 l
PLC control
X, Y manually
Z manual and NC controlled
Basic machine:
Machine stand made of stable welded construction
Work table 1100 x 650 mm
Can be swiveled 360 ° manually
1 ° scale
Adjustment via ball screw with gear motor
Precision ball rail guides
table load 2000 kg
X-axis (cross adjustment table)
Manual adjustment with digital display
Y axis (vertical adjustment)
Column tour
Manual adjustment with digital display
Z axis (drilling axis)
attached to Y-axis

Infeed automatically or manually via rack drive
A axis can be swiveled by + / – 20 ° manually
Spindle drive
continuously adjustable
0-3000 rpm
Control panel
manually movable
Coolant device for cooling water
mounted in the machine stand
with cooling water return
Spindle mount MK2
Threading device
Electrical connection values
400 V.
50 Hz
25 A fuse
Machine connection values
400 V.
50 Hz
19 A.
11.2 kVA
24 volt sec.
Speedbit tool holder, rotating
MK2 / SB2

Dimensions
Length
118.11 inch
Width
39.37 inch
Height
68.898 inch
Weight
3500 lbs
