20000 Watt
| size | 20000 Watt | 20000 Watt |
| Sheet-W | 8' | 2,438.4 mm |
| Sheet-L | 20' | 6,096 mm |
| Wattage | 20000 w | 20,000 W |
| Dimensions | 722" x 232" x 98" | 722" x 232" x 98" |

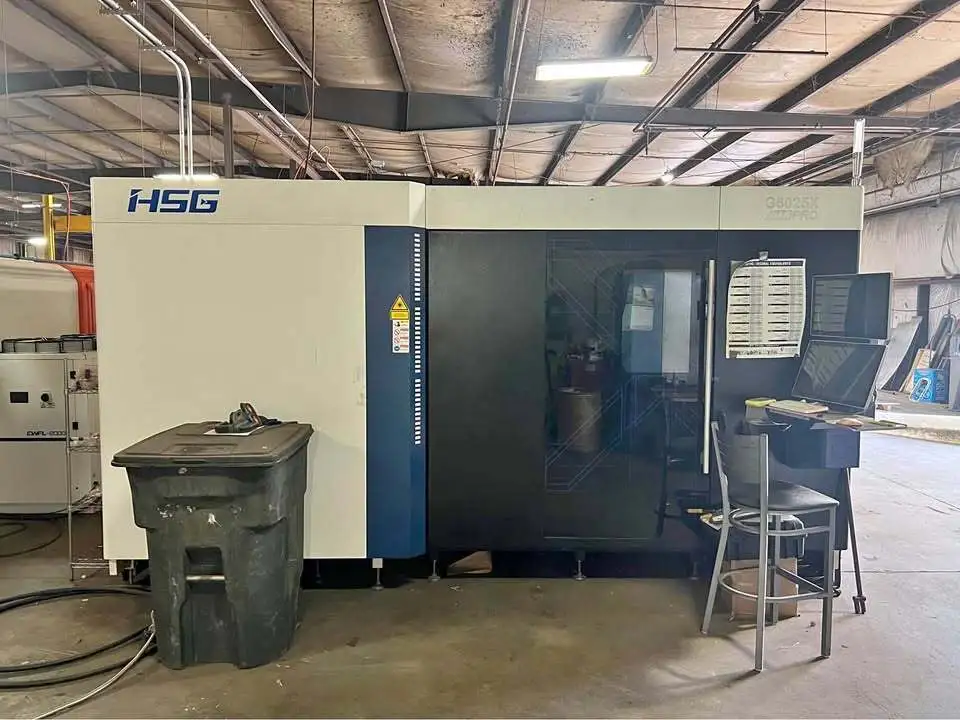

HSG G6025X Pro 20Kw Fiber Laser (2023)
Machining area (length×width) 6096×2540mm
Z-axis stroke 350mm
Positioning precision of X/Y axis ±0.03mm/m
Repetitive positioning precision of X/Y axis ±0.03mm
Max. linkage speed 120m/min
Max. linkage acceleration 1.5G
Max. loading weight - 10,582 lbs（12-20kw）
Number of phases 3
Rated voltage of power source 380V
Frequency 50/60Hz
- Donaldson Dust collector
- Water Chiller
- Transformer
