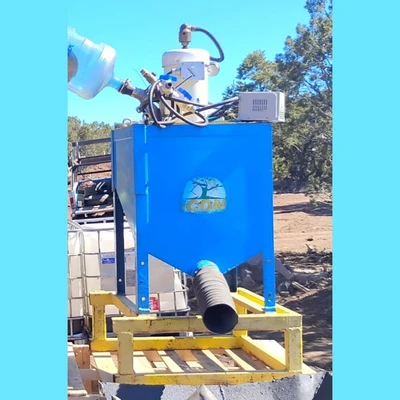

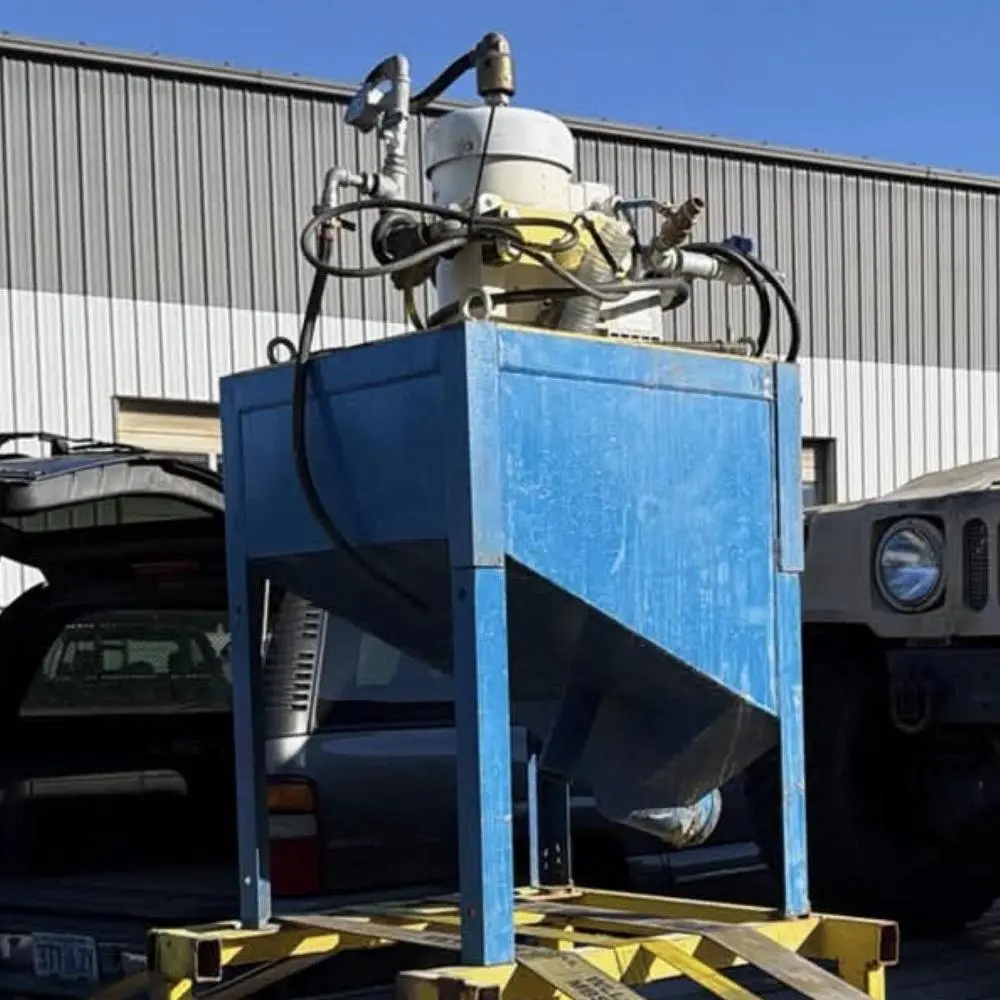

USED ICON GOLD RECOVERY (SEPRO FALCON) I150

iCON i150 Concentrator
Make: iCON Gold Recovery (Sepro Falcon)
Model: i150
Type: Centrifugal Concentrator
Condition: Used Condition
Electric Motor Power: 5HP (3.7 kW)
General Model Specifications: with Standard Motor
Solids Capacity (Max): 2 TPH
Slurry Capacity (Max): 130 Liters/min (34 U.S. GPM)
Slurry Density: 5% to 65% Solids
Max Particle Size: 2mm
G-Force Range: 120-150 G's (50-55hz)
Rinse Time: 60-90 Seconds
Standard Motor Power: 2HP (1.5kW)
Capacity of Concentrate per Batch: 1.1-2.2 Lbs. (0.5 -1kg)
Process Water Consumption: 10-30 Liter/min (2.6-8 U.S. GPM)
Process Water Pressure: 5 to 15 PSI
Solids Capacity (Max): 2 TPH
Slurry Capacity (Max): 130 Liters/min (34 U.S. GPM)
Slurry Density: 5% to 65% Solids
Max Particle Size: 2mm
G-Force Range: 120-150 G's (50-55hz)
Rinse Time: 60-90 Seconds
Standard Motor Power: 2HP (1.5kW)
Capacity of Concentrate per Batch: 1.1-2.2 Lbs. (0.5 -1kg)
Process Water Consumption: 10-30 Liter/min (2.6-8 U.S. GPM)
Process Water Pressure: 5 to 15 PSI
Location: Southwest USA
