USED 2021 VERTONGEN "PROFIL1"

Lot Closes:: 10/22/2026 11:45:00 AM PT

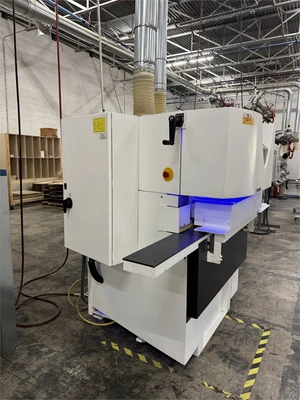

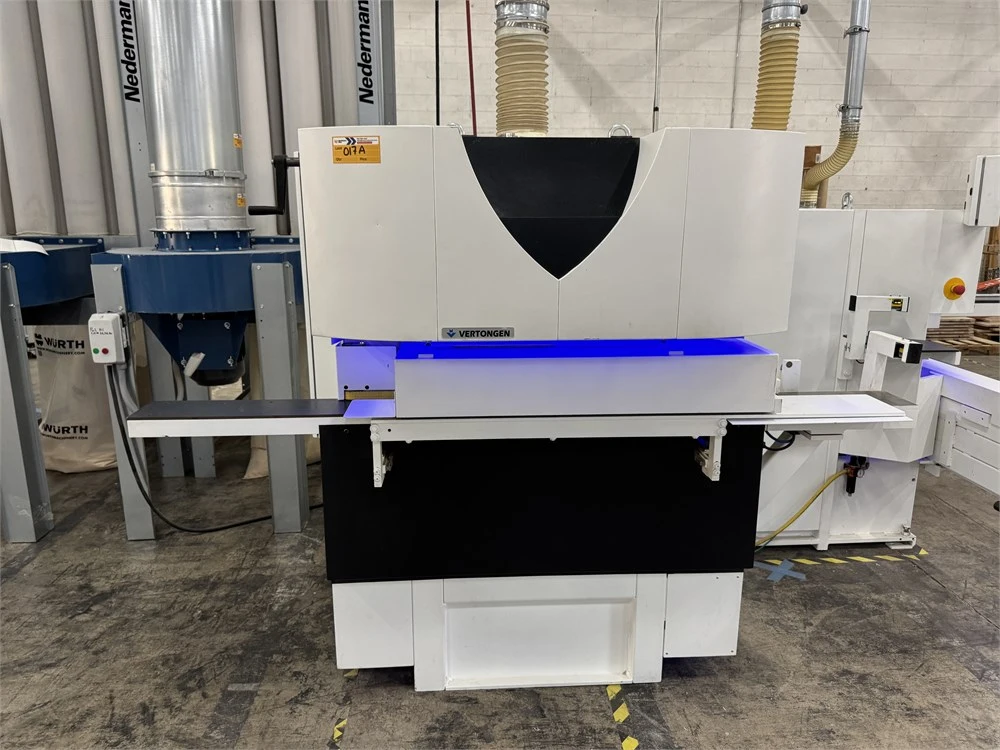

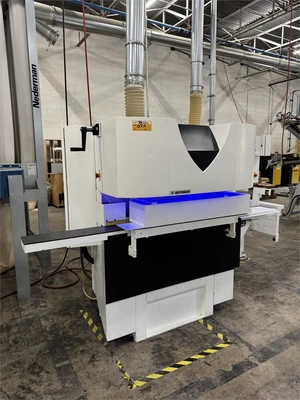

Vertongen "PROFIL1" Linear Profiler (2021)
The Vertongen Kitchen Cell is a fully CNC-controlled combination of the Pentho Compact Kitchen single-end tenoner and the Profil Compact Kitchen profile moulder for cope and stick joints.
Combined with both machines, this work cell makes it easy for a single operator to produce cabinet door rails and stiles simultaneously for peak production and efficiency. Pieces are accurately sized, squared, and machined in less than a minute without manual setup between different profiles.
Benefits
Process up to 800 doors a shift with a single operator
Achieve high-quality, identical pieces through efficient sizing and coping of two parts at once
Maximize floor space by combining multiple functions into two compact machines
Accommodate a variety of door styles, including 5-piece kitchen cabinet doors, pantry doors, and entry doors
The Profil Compact Kitchen is a fully CNC-controlled moulder with one vertical spindle. Many varieties of kitchen

cabinet door profile "stickings" can be machined without manual set-up between different profiles. The vertical

spindle has a length of 300 mm, uniquely engineered for stacking tools. The solid steel table and cutout for the

vertical spindle profile contribute to exact accuracy. Combining the Pentho with the Profil Kitchen allows for the

complete production of kitchen cabinet door frames.
The automatic outside fence allows the operator to change-over in a short time between parts of different widths.
The belt feeding device can transport parts with a minimum length of 4” and a minimum width of 1.5”
The infeed-unit aligns the workpiece accurately under the main belt while the outfeed-unit delivers finished parts to the operator.
Air nozzles in the steel table create an air cushion between the workpiece and the machine surface for better through-feed.

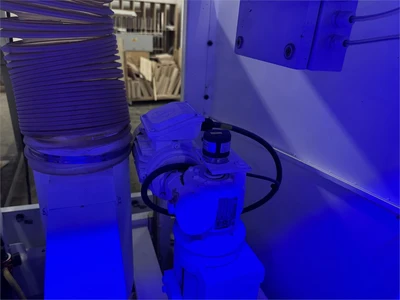

Vertical Spindle 1:

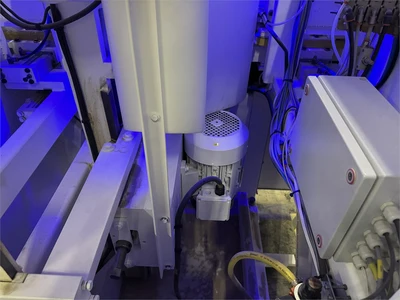

Motor: 7.5 kW (10HP) – 7200 RPM@60Hz
Suspension: Dove tail
Positioning: Vertical cnc-positioned, horizontal Fix
Turning direction: Counter clockwise

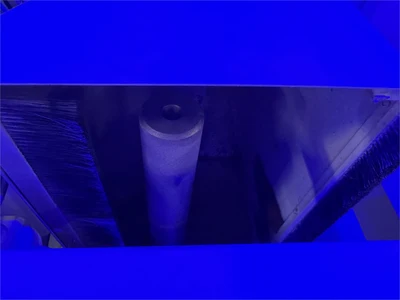

Spindle: 300 mm with Prolock, Ø 50 mm
Tool: Min Ø 160 mm; max. 240 mm

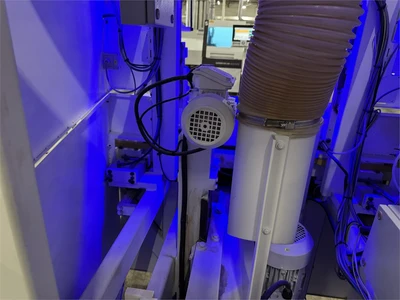

Extraction: 180 mm diameter
Table:
Guiding: Outside fence cnc-positioned
System: Through feed
Feed Device
Speed: Adjustable between 2 – 12 m/min
Feeding type: Top belt, minimum part length 4 inch
Part Thickness: Min. 0.6” to max. 1.25”
Part Width: Min. 1.5” to max. 9”
Max. profile depth: 0.75”
Part tolerance in height: Maximum 0.004” / 0.1 mm
Part oversize in width: Between 0.00” and 0.0625”
Chassis:
Safety specification: CE
Dimensions: 2300 x 1380 x 1800 mm ( L x W x H ) / Weight: 1200 kg (2650 lbs)
Total extraction: 1 x Ø 180 mm
Controller:

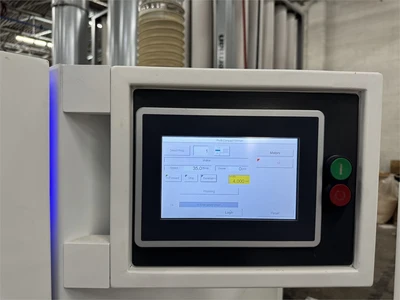

7” touch screen at eye level
All motors are started via control panel
Memory for saving programs for easy call-up and repeatability
Programming via Teach-in command for creation of new profiles
Distributed in North America by Stiles Machinery and are regarded as premium production equipment for high-end window, door, and cabinet manufacturers.
