USED 2023 VERTONGEN "PENTH0C2"

Lot Closes:: 10/22/2026 11:55:00 AM PT

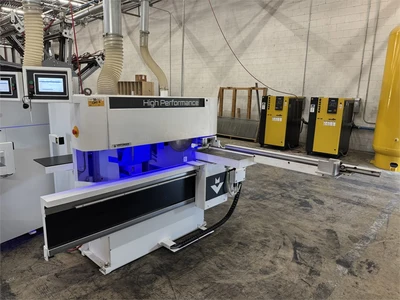

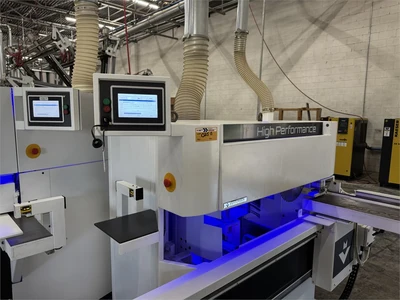

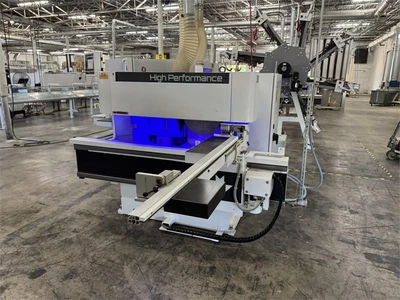

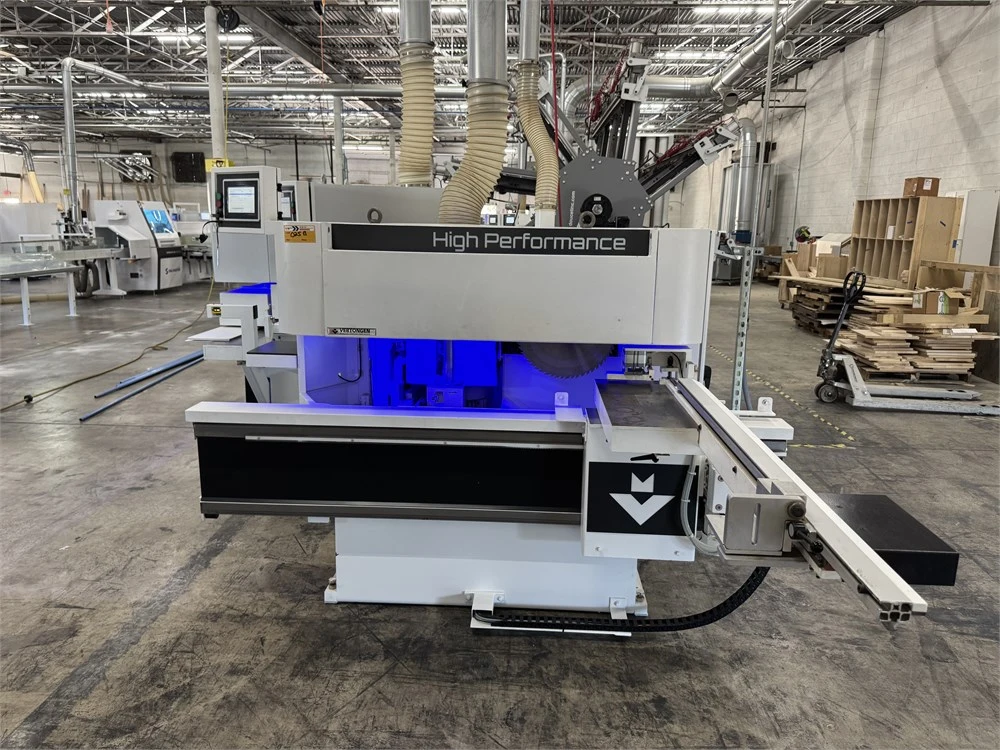

Vertongen "PENTH0C2" Tenoning Machine (2023)
The Vertongen Kitchen Cell is a fully CNC-controlled combination of the Pentho Compact Kitchen single-end tenoner and the Profil Compact Kitchen profile moulder for cope and stick joints.
Combined with both machines, this work cell makes it easy for a single operator to produce cabinet door rails and stiles simultaneously for peak production and efficiency. Pieces are accurately sized, squared, and machined in less than a minute without manual setup between different profiles.
Benefits
Process up to 800 doors a shift with a single operator
Achieve high-quality, identical pieces through efficient sizing and coping of two parts at once
Maximize floor space by combining multiple functions into two compact machines
Accommodate a variety of door styles, including 5-piece kitchen cabinet doors, pantry doors, and entry doors
The Pentho Compact Kitchen is a fully CNC-controlled single-end tenoner with a cut-off saw and one vertical

spindle. Many varieties of kitchen cabinet door profiles can be coped and sized without manual set-up between

different profiles. The vertical spindle has a length of 300 mm, uniquely engineered for stacking tools. The table

design enables the operator to work with two pieces at the same time. Combining the Pentho with the Profil

Kitchen allows for the complete production of kitchen cabinet door frames.

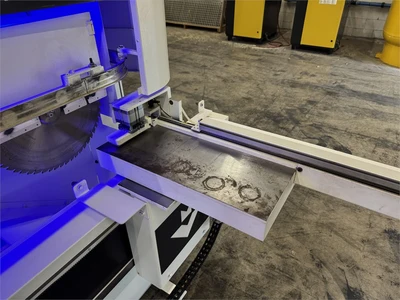

The automatic length fence allows the operator to size workpieces to length, and the large swiveling backstop allows for the sizing of two pieces at the same time.
The automatic table will adapt the speed based on the selected program and will change the speed for sawing, coping and traveling.
The integrated clamp detection will ensure that the piece is well secured.

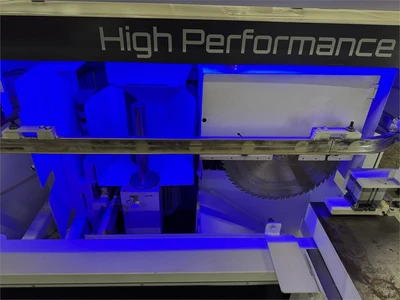

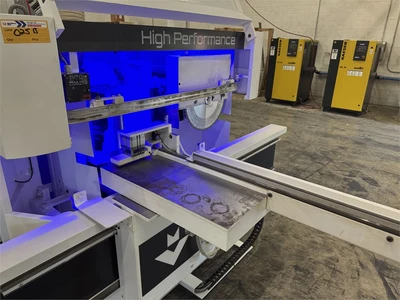

The transparent safety-screen covers the entire machining area. Loading and unloading remain efficient and operator-friendly.

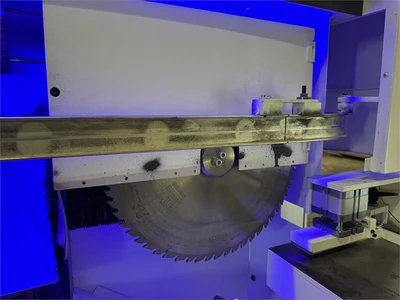

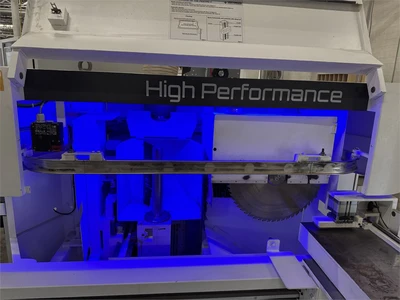

First Station: Cut-off Saw:
Motor: 2.2 kW (3HP)– 3000 RPM
Adjustment: Horizontal 10-150 mm
Tool: Noise reduced saw included – Ø 400 mm
Dust extraction: 80 mm diameter
Positioning: cnc positioned

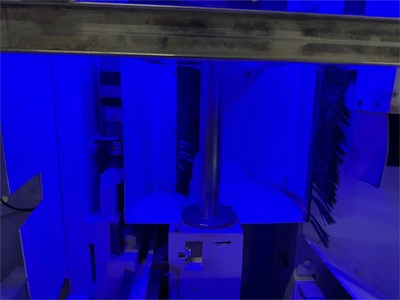

Second Station: Vertical Spindle
Motor: 7.5 kW (10HP) – 7200 RPM@60Hz
Suspension: Dove tail
Positioning: Vertical cnc-positioned; horizontal pneum. On/Off
Turning direction: Counter clockwise
Movement: Vertical: -20mm - +270mm
Spindle: 300 mm with Prolock, Ø 50 mm
Tool Ø: Min. Ø 160 mm; max. Ø 240 mm
Dust extraction: Ø 150 mm
Table:
Construction: Automatic table movement with vertical pneumatic clamp
Backing wood: Clamp for straight backing wood

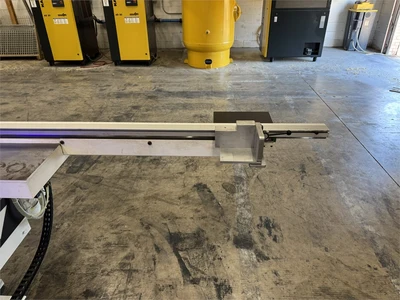

Length-fence: Automatic with one large swiveling back stop
Min. part length 4” max. 100” ( limit digital fence )
Clamping height: Min. 0.6” max. 1.25” with max. oversize: 0.004” / 0.1 mm
Clamping width: Min.1.5” max. 9”
Table dimensions: 200 mm x 600 mm ( useful )
Chassis:
Safety specification: CE
Dimensions: 1985mm x 2535mm x 1520mm ( L x W x H ) / Weight: 1200 kg (2650 lbs)
Total extraction: 1 x Ø 80 mm; 1 x Ø 150 mm

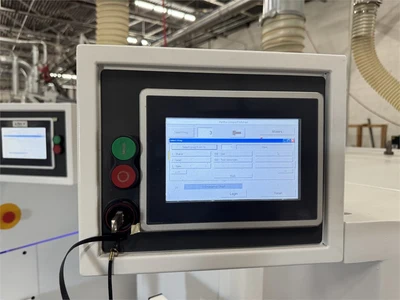

Controller
7”Touch screen at eye level
All motors are started via control panel
Memory for saving programs for easy call-up and repeatability
Programming via Teach-in command for creation of new profiles
Distributed in North America by Stiles Machinery and are regarded as premium production equipment for high-end window, door, and cabinet manufacturers
