USED 2024 HOMAG "CABTEQ S-250"

Lot Closes:: 10/22/2026 11:30:00 AM PT

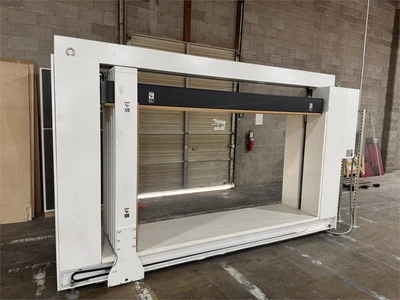

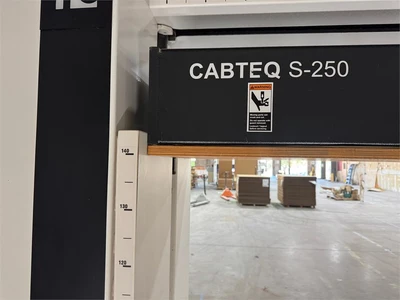

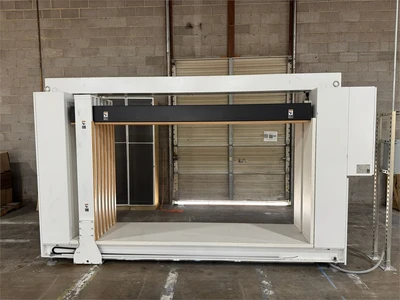

Homag "Cabteq S-250" Case Clamp - Semi Auto (2024)
The CABTEQ has two speeds: an approach speed (rapid speed) and a pressing speed.
At the touch of a button, the plates move from their starting position to the pressing position at rapid speed just before hitting the cabinet. The speed then switches to pressing speed.
Depending on the cabinet type, the pressing force can be adjusted to different requirements at the controller.
Each cabinet is pressed centrally and over the entire surface.
Built-in sensors detect the carcasses before they hit the pressing areas. This means that carcasses are pressed more gently.

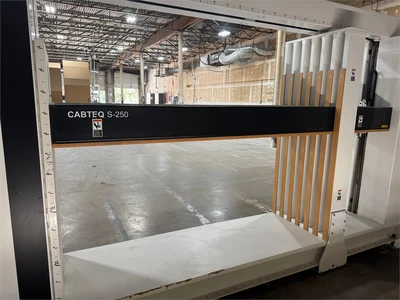

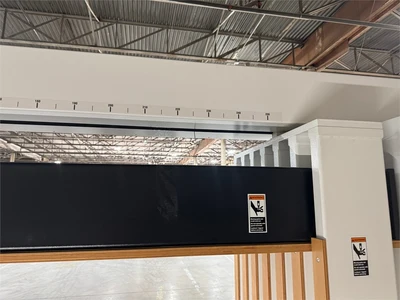

(1) Horizontal & (1) vertical interlocked pressure beam, each with electric push button control; 8-beam surface area eliminates need for pressure pads.
Working capacity: 5.85" - 97.5" (150 - 2,500 mm) Length; 9.8" - 27.5" (250 - 700 mm) depth, 5.85" - 55" (150 - 1,400 mm) height.

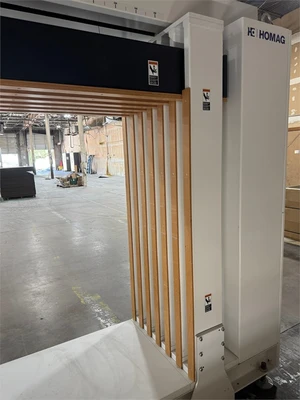

Motorized horizontal & vertical beams can position simultaneously or individually during setup, vertical & horizontal interlocking pressure walls, each with (8) individual beams move parallel & square to the clamp frame;
(2) Selectable clamping speeds of approx. 5 FPM (1.5 MPM) or 10 FPM (3 MPM) and adjustable pneumatic pressure regulator clutch system stops the beams at preset pressure resistance.

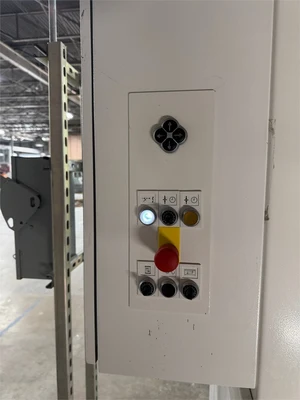

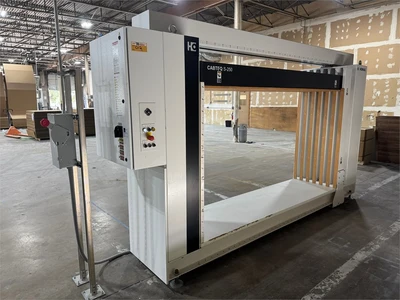

Features & Operation: Manual switch setting;adjustable dwell timer opens clamp automatically; operator control panel built into left side of clamp; virtually a "plug-in-play" machine.

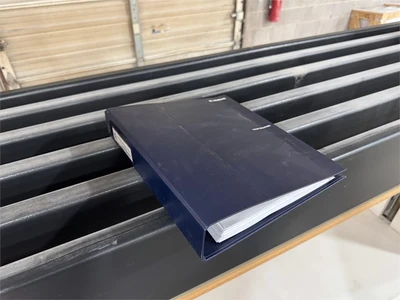

Manuals
