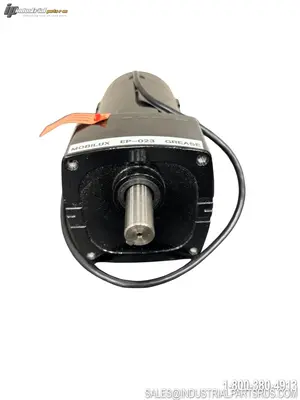

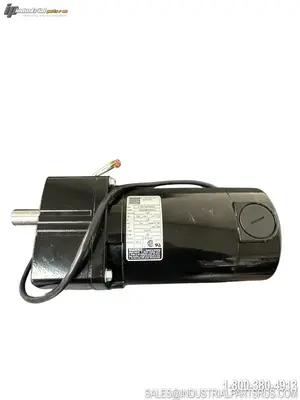

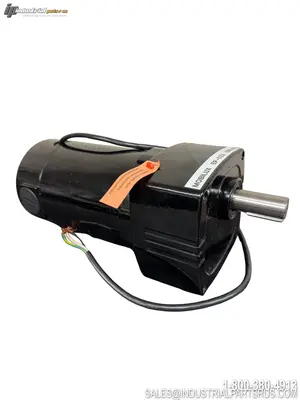

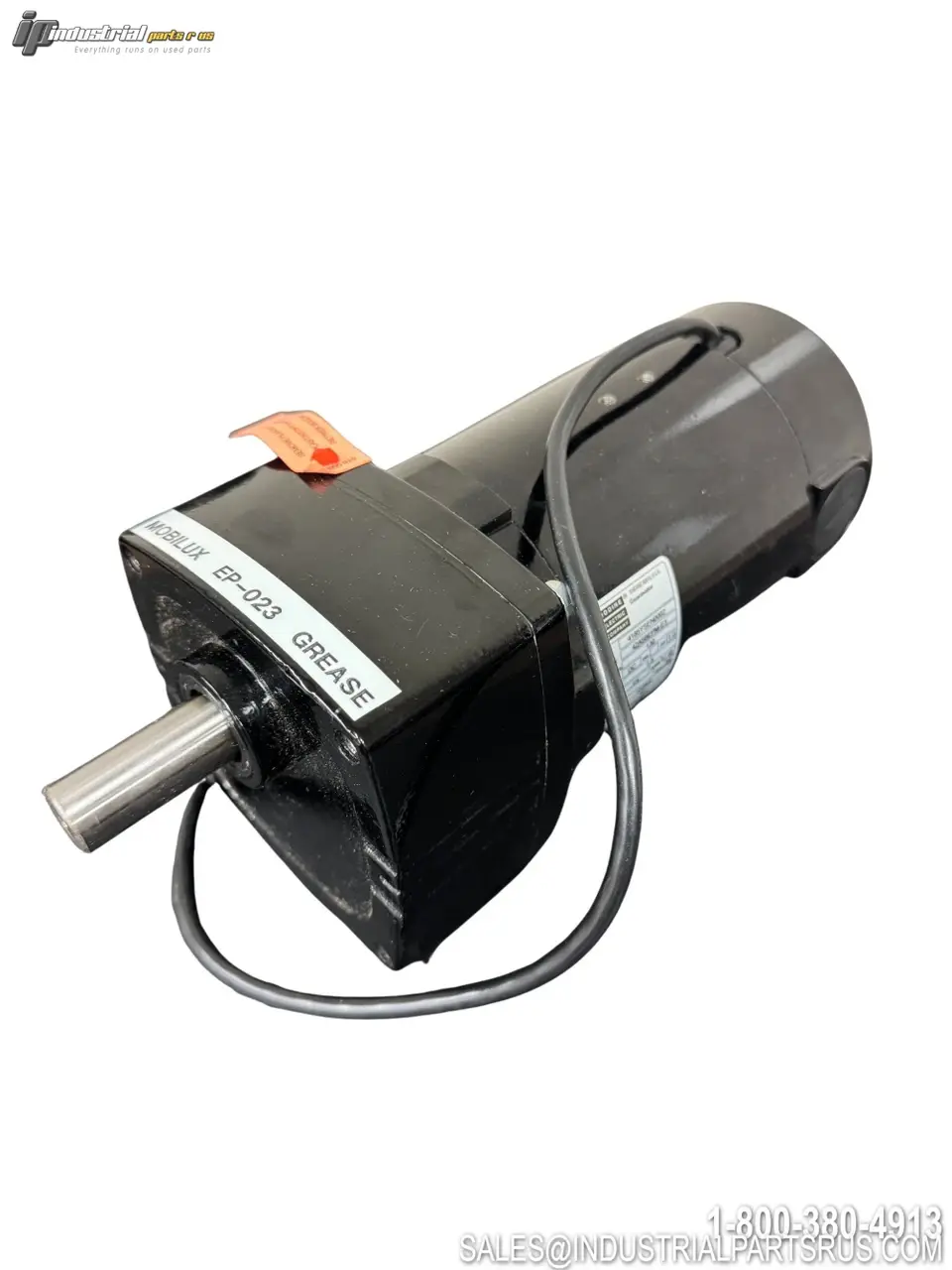

NEW BODINE 4185YSEN0002

The Bodine Electric 4185YSEN0002 is a custom-configured parallel shaft permanent magnet DC (PMDC) gearmotor based on the Bodine 4185 (type 42A5BEPM-E3) platform. The "Y" suffix designates a factory-modified version of the standard 4185 stock model, with "SEN" indicating an encoder accessory configuration and "0002" representing Bodine's internal custom order sequence. As a fractional horsepower gearmotor in Bodine's 42A frame series, it is designed for adjustable-speed DC drive applications requiring high starting torque and reliable parallel shaft output. The unit features a Totally Enclosed Non-Ventilated (TENV) enclosure with IP-40 ingress protection and reversible operation.
Specification
Value
Brand
Bodine Electric
Model / Part Number
4185YSEN0002
Base Model
4185 (42A5BEPM-E3)
Product Type
Parallel Shaft DC Gearmotor (Custom/Modified)
Motor HP
1/4 HP (0.25 HP)
Rated Voltage
130 VDC
Full Load Amps (130V)
1.8 A
Full Load Amps (24V)
8.8 A
Output Speed
42 RPM
Gear Ratio
60:1
Rated Torque
270 lb-in
Peak Torque
421 lb-in
Radial Load Capacity
200 lbs
Frame / Motor Type
42A Frame, Permanent Magnet DC (PMDC)
Shaft Orientation
Parallel Shaft
Current Type
DC
Custom Suffix
YSEN0002 — Factory custom with encoder (SEN) accessory, sequence 0002
Overall Length (XH)
9.37 in (base model; may vary on custom)
Weight (base model)
14.9 lbs
UL / CSA Listed
Yes (cURus / UL E47177 / CSA LR2797)
RoHS Compliant
Yes
Status
Obsolete / Discontinued base model (replaced by 5046); custom variant
We warranty all items for 30 days from date of purchase.
