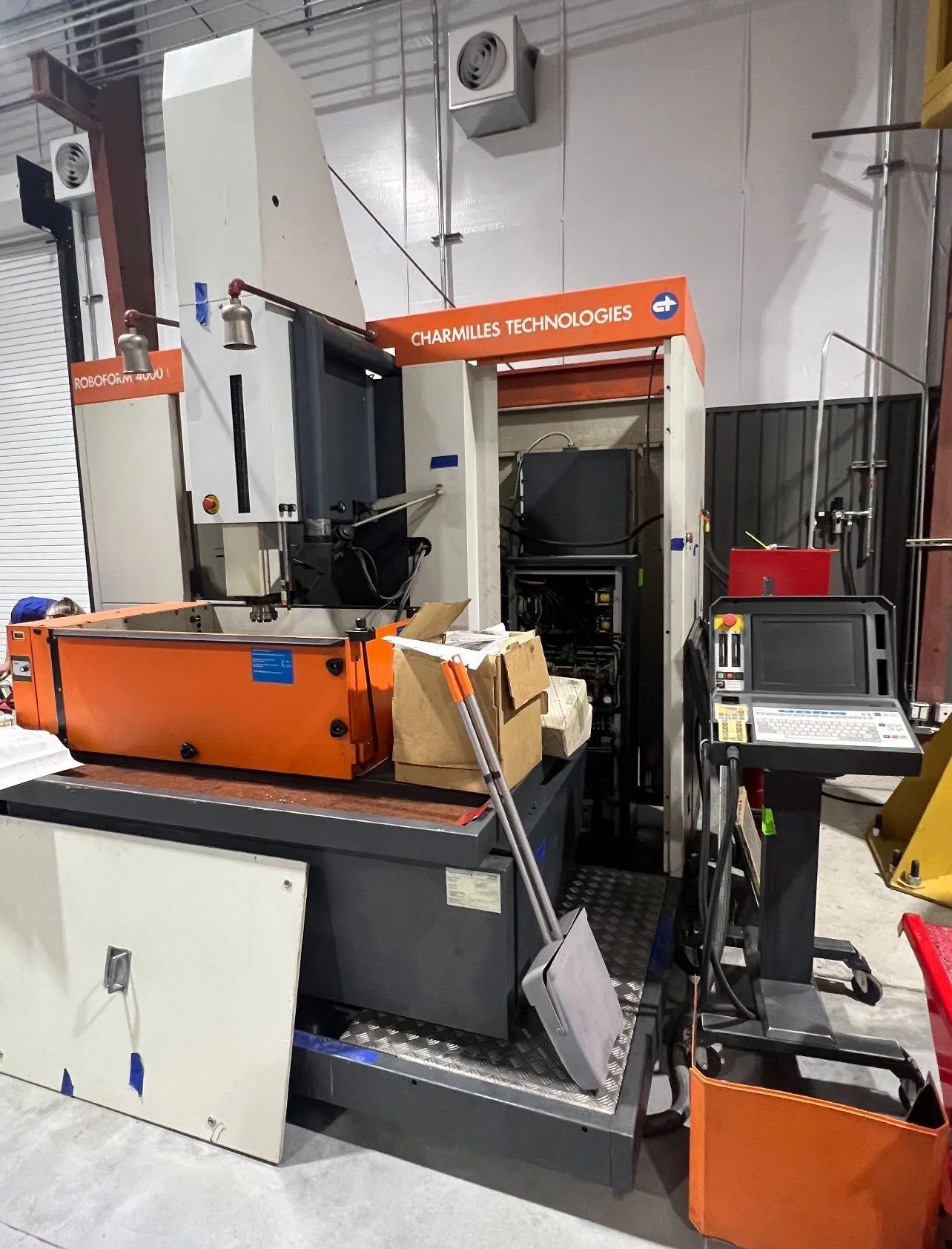

Charmilles Model Roboform 4000 Year 1998
Pre-owned Swiss-Made CHARMILLES ROBOFORM4000 1998 EDM. This EDM has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA.
| Power Pack | 128 A | 128 A |
| Table Size-W | 22.05" | 560.07 mm |
| Table Size-L | 31.5" | 800.1 mm |
| X | 17.72" | 450.09 mm |
| Y | 12.6" | 320.04 mm |
| Z | 16.14" | 409.96 mm |
| Control | CNC (Charmilles) | CNC (Charmilles) |
| Dimensions | R-L 113"X F-B 120" X Height 122" | R-L 113"X F-B 120" X Height 122" |
| Weight | 1,200 Lbs. | 1,200 Lbs. |
Specs:
Table Size....................................22" X 31"
X Axis Travel.................................17.7"
Y Axis Travel.................................12.6"
Z Axis Travel.................................16.14"
Floor Space...................................R-L 113"X F-B 120"
Height........................................122"
Weight........................................1,200 Lbs.
Power.........................................380 Volts/50 Hz/3 Phase
Amps..........................................16
Note:
They never put it under power after purchasing the machine.
