USED WITTE 42? X 12?

Manufacturer Information
Witte Company
Witte manufactures industrial fluid bed processing and vibrating equipment used for drying, cooling, heating, classifying, and conditioning bulk solids. Fluid bed systems use controlled airflow combined with vibratory conveying to promote contact between process air and free-flowing granular material.
This Witte Model 42 x 12' system was previously used for PE pellets and is configured with a natural gas heating system, shaker drive, induction blower, temperature controls, ductwork, and exhaust components.
Description

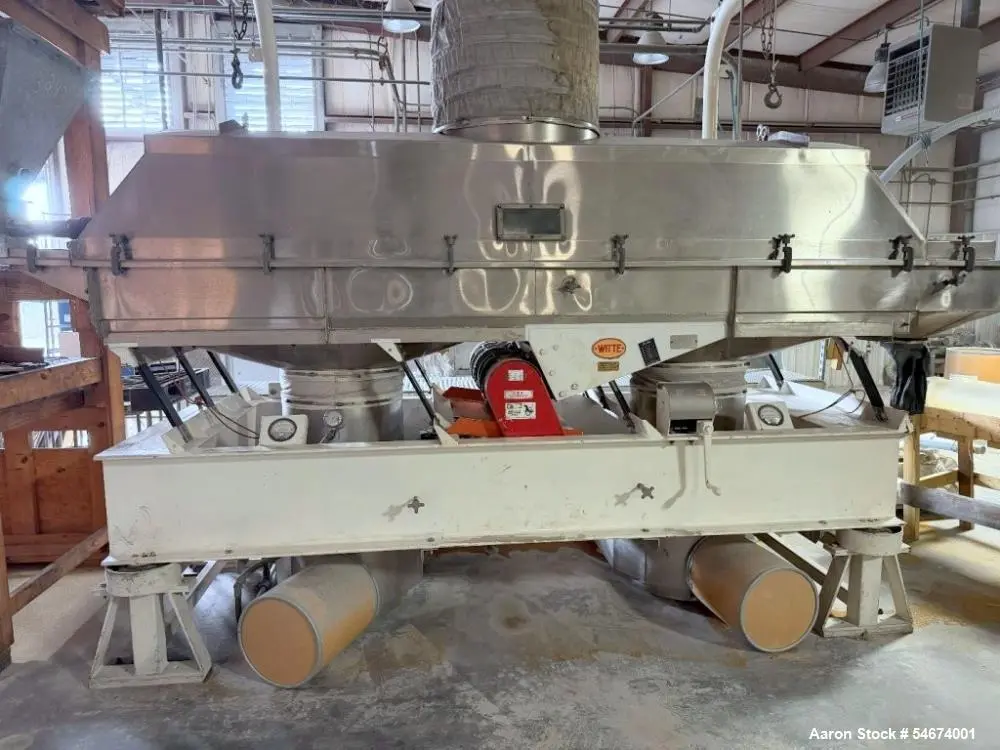

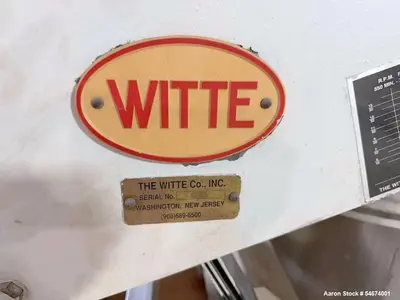

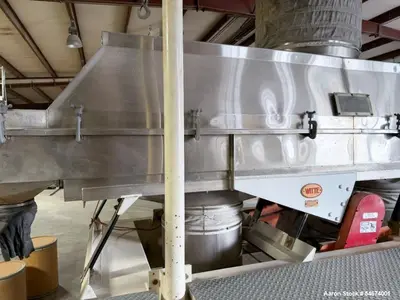

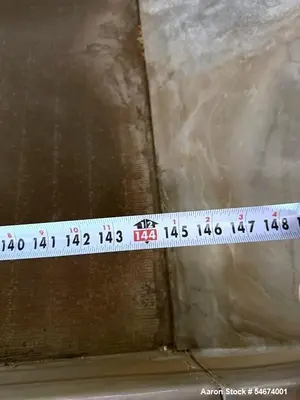

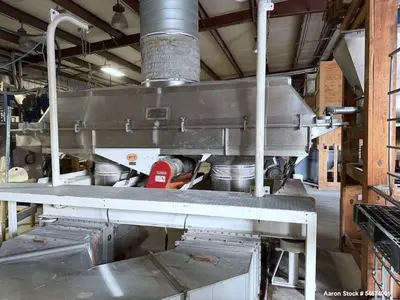

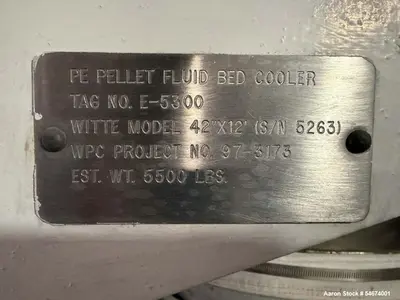

Available for sale is a used Witte Model 42 x 12' PE Pellet Fluid Bed Cooler, Serial Number 5263, measuring approximately 45" wide x 12'10" long and currently set up for heat.

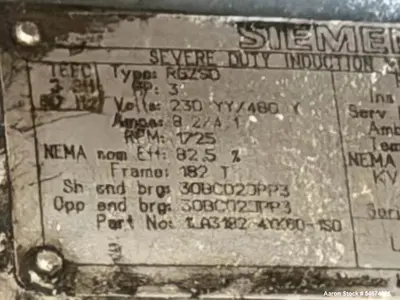

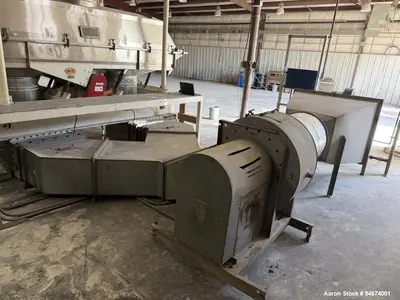

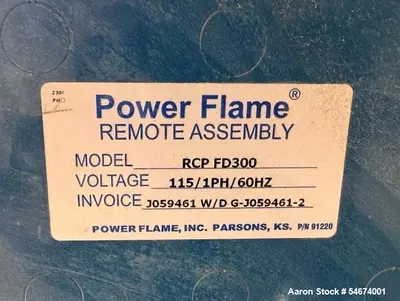

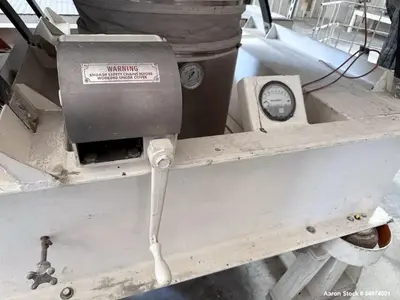

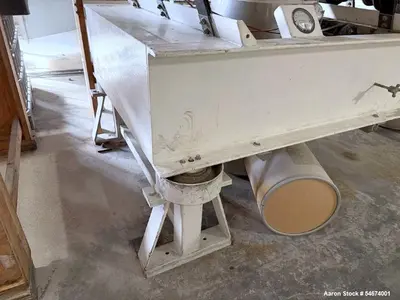

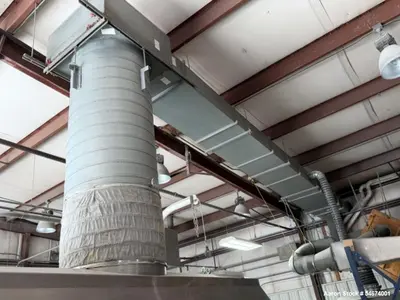

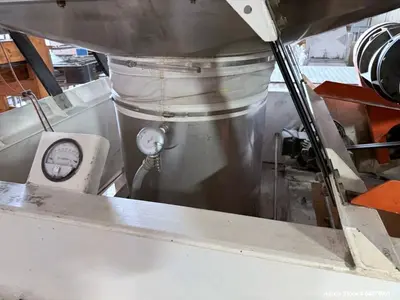

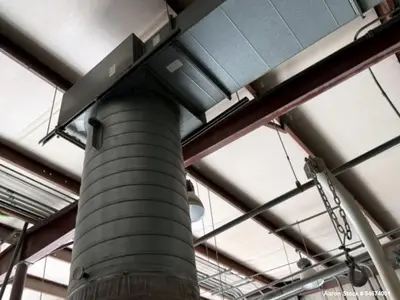

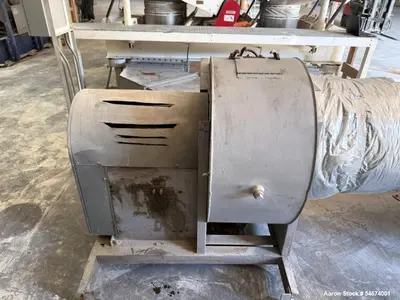

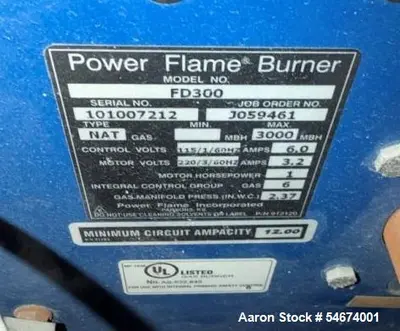

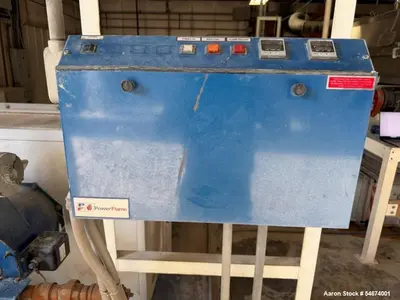

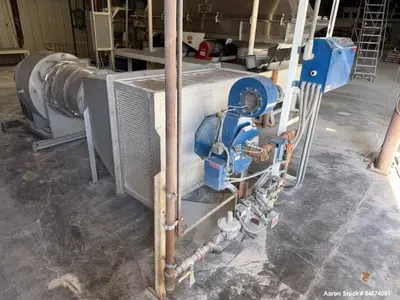

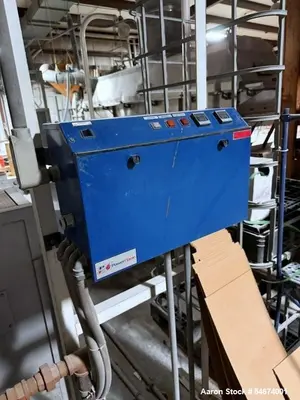

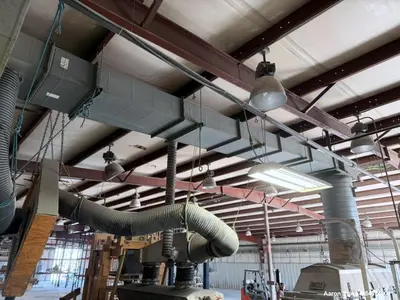

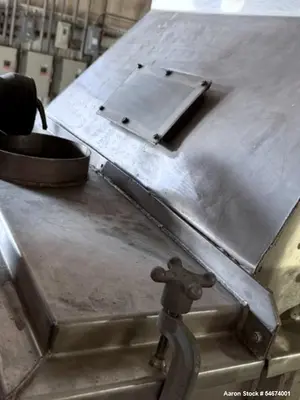

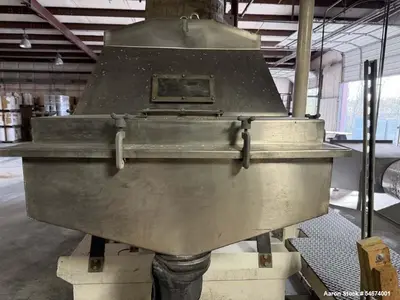

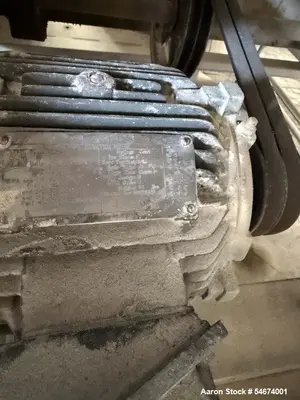

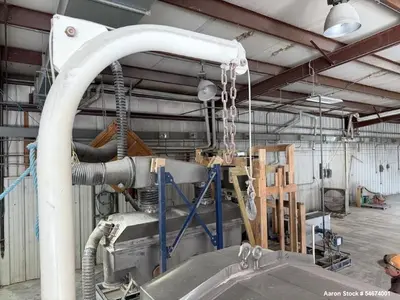

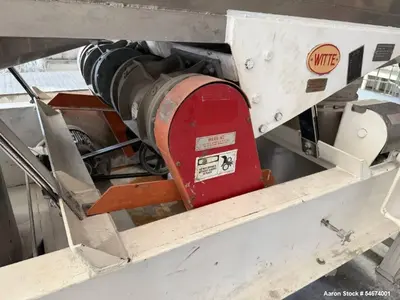

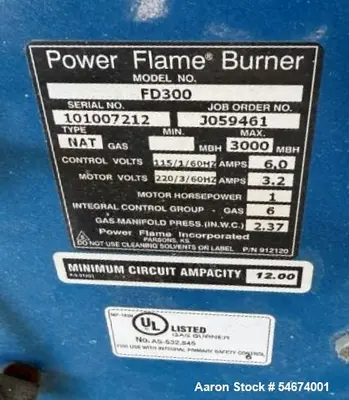

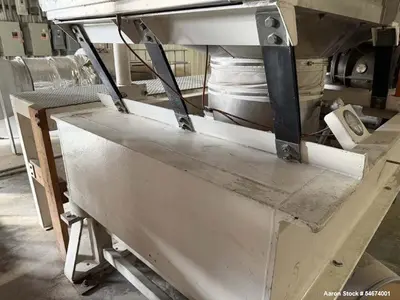

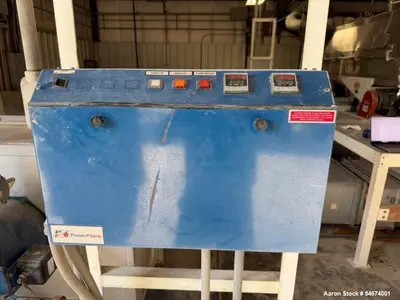

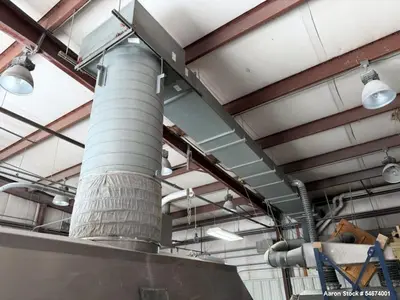

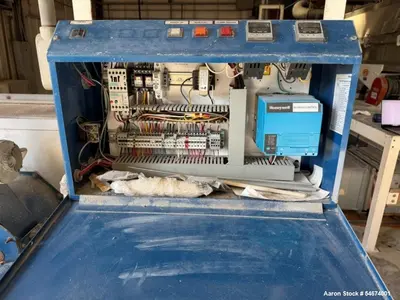

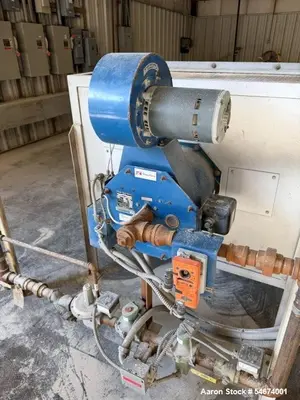

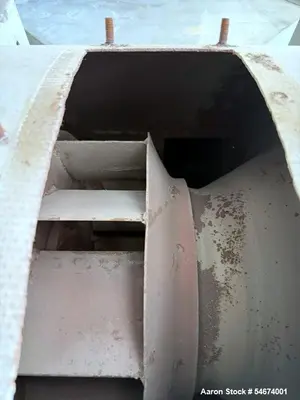

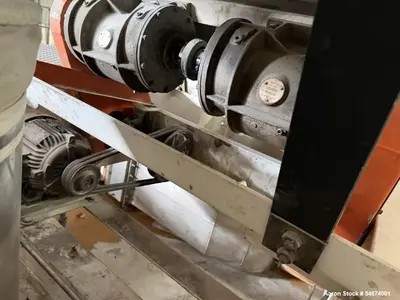

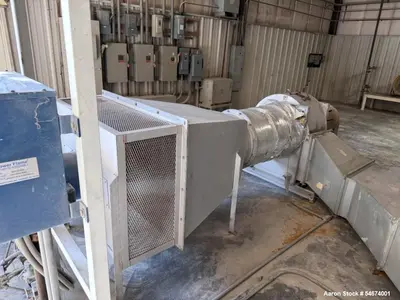

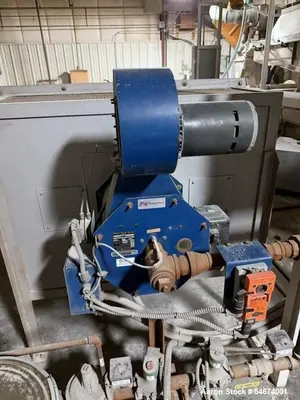

The system features a Siemens 3 HP shaker motor, Power Flame FD300 natural gas burner with RCP FD300 control box, induction blower, temperature regulators, tension-spring-supported shaker deck, and removable hood with safety chain. Fabricated induction ducting and a cylindrical exhaust hood are also included.

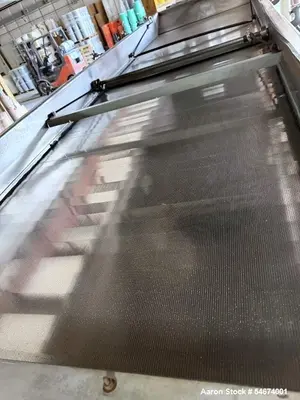

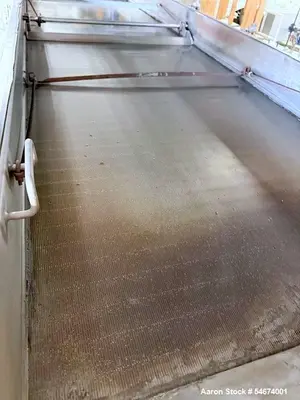

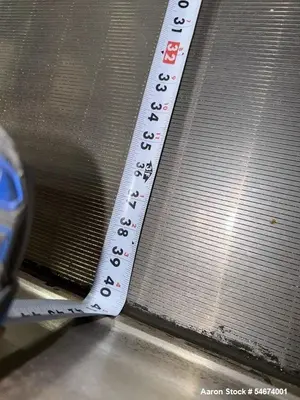

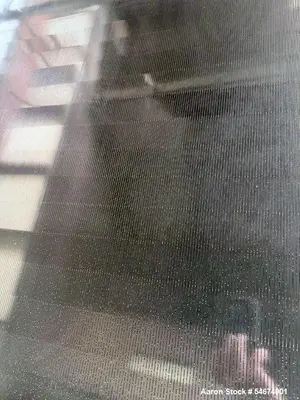

According to the supplied condition information, the screen is in great condition with no bends or clogs, and the shaker, motor, burner, blower, and temperature controls are functioning as intended. The shaker fluid was changed in January 2026.
The equipment was previously used for polyethylene (PE) pellets and may be suitable for heating, drying, conditioning, or cooling compatible plastic pellets and other free-flowing granular materials. Actual thermal performance and throughput will depend on the product, inlet condition, airflow, temperature, residence time, and system configuration.
Specifications

Specification
Details

Manufacturer
Witte

Model
42 x 12'

Serial Number
5263

Equipment Type
Fluid Bed Cooler / Dryer / Heater

Condition
Used

Previous Product
PE Pellets

Unit Size

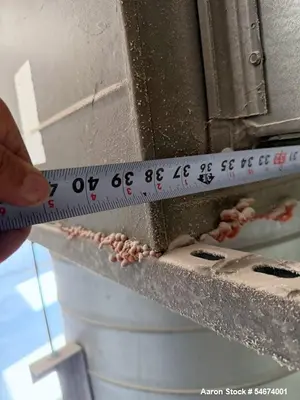

Approx. 45" W x 12'10" L

Current Configuration
Set Up for Heat

Shaker Motor
Siemens, 3 HP

Burner
Power Flame FD300

Burner Fuel
Natural Gas

Burner Control
Power Flame RCP FD300 Control Box

Air System
Induction Blower

Temperature Control
Temperature Regulators

Shaker Deck
Tension Spring Supported

Hood
Removable with Safety Chain

Screen Condition
Reported Great Condition; No Bends or Clogs

Shaker Fluid Service
Changed January 2026

Stand Dimensions
Approx. 12'2" L x 5' W x 8'4" H

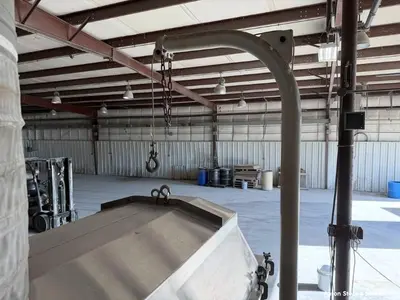

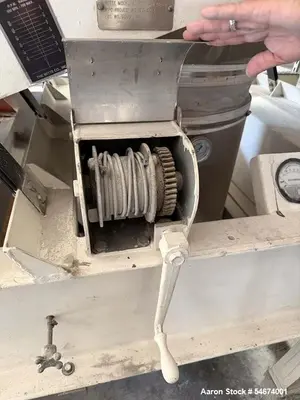

Height to Safety Hoist
Approx. 10'5"

Induction Ducting
Approx. 12' W x 14' L

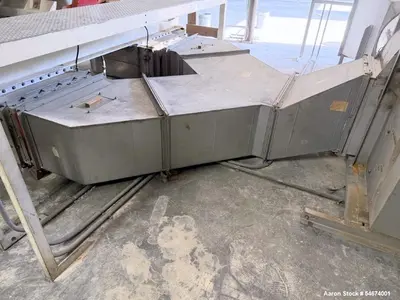

Outlet Ducting
Approx. 28' L x 12" W x 31" D

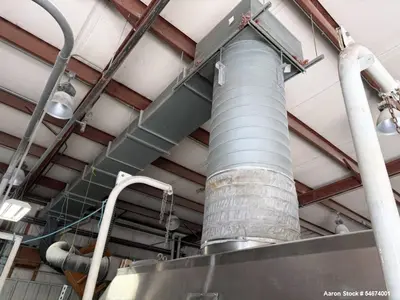

Exhaust
Cylindrical Exhaust Hood

Primary Processes
Heating / Drying / Conditioning / Cooling

Typical Applications

Plastic pellet cooling
Polymer pellet drying
Pellet heating
Bulk solids conditioning
Granular material cooling
Granular product drying
Process temperature conditioning
Moisture reduction
Post-extrusion pellet processing
Free-flowing solids processing
Thermal treatment of compatible granules
Continuous vibratory fluid bed processing

Products This Witte Fluid Bed System Could Be Used For

Polyethylene (PE) pellets
Polypropylene (PP) pellets
Compatible plastic pellets
Polymer granules
Plastic compounds
Masterbatch pellets
Resin pellets
Recycled plastic pellets
Free-flowing granular materials
Compatible dry granules
Extruded pellet products
Other flowable bulk solids

Actual product suitability, throughput, heating/cooling capacity, and drying performance depend on material characteristics, particle size, moisture, bulk density, airflow, temperature, residence time, and the installed process configuration.
Frequently Asked Questions

What was this Witte fluid bed system previously used for? It was previously used for processing PE pellets.

Can this unit provide heat? Yes. The system is currently set up for heat and includes a Power Flame FD300 natural gas burner with RCP FD300 control box.

What powers the shaker system? The unit is equipped with a Siemens 3 HP shaker motor and a shaker deck supported by tension springs.

What is the reported condition of the equipment? The screen is reported to be in great condition with no bends or clogs, and the shaker, motor, burner, blower, and temperature controls are reported to function as intended. The shaker fluid was changed in January 2026.

Can this system be used for both heating and cooling? Fluid bed equipment can be configured for heating, drying, conditioning, or cooling. This particular unit is currently described as set up for heat; cooling service would depend on the available process air and final system configuration.

Can Aaron Equipment assist with shipping and logistics? Yes. Due to the size of the fluid bed, stand, and extensive ductwork, transportation may require multiple pieces or loads. Aaron Equipment can assist with dismantling/rigging and loading coordination, domestic and international freight, customs documentation, and logistics planning.
