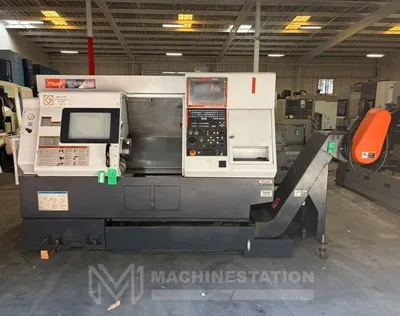

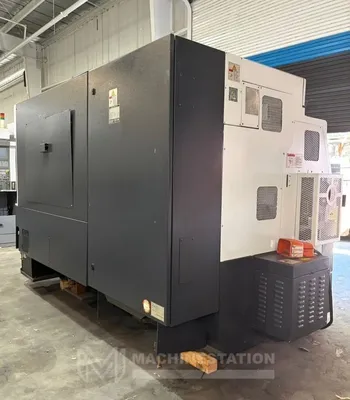

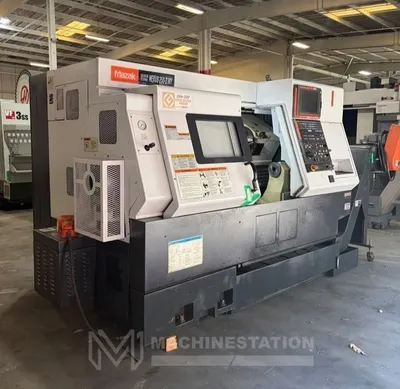

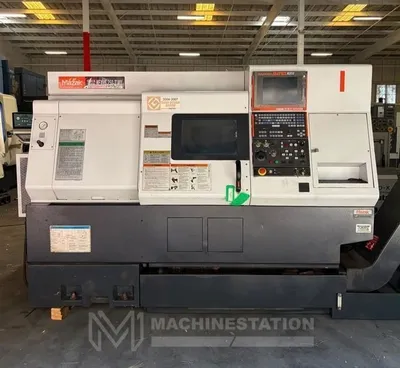

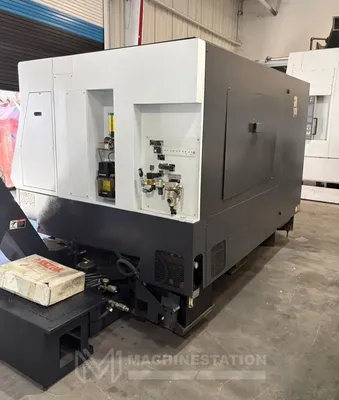

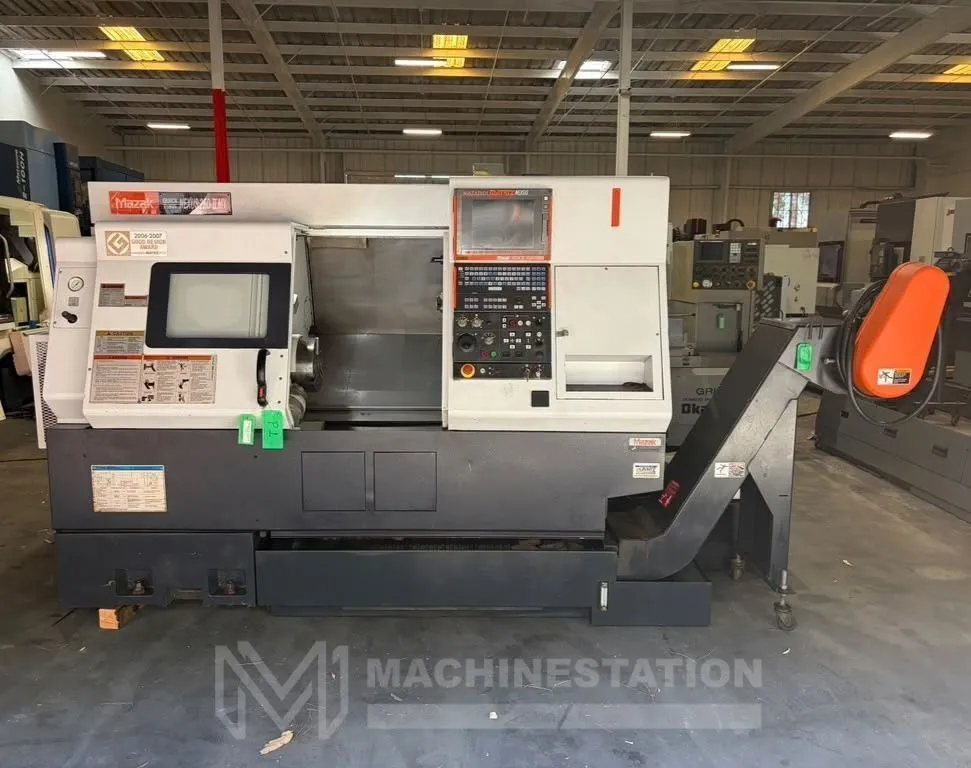

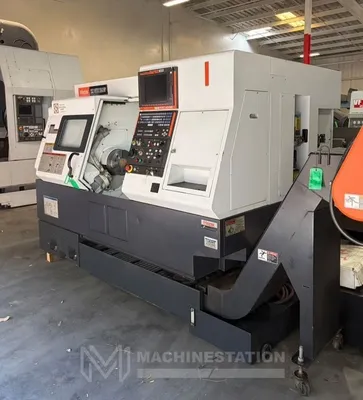

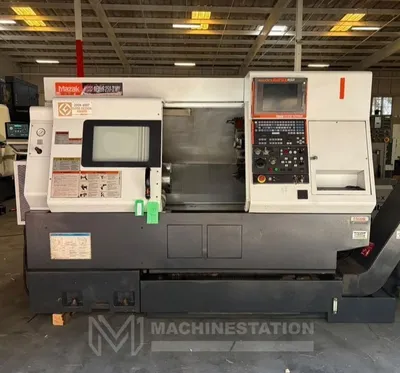

USED 2008 MAZAK QUICK TURN NEXUS 250-II MY

All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

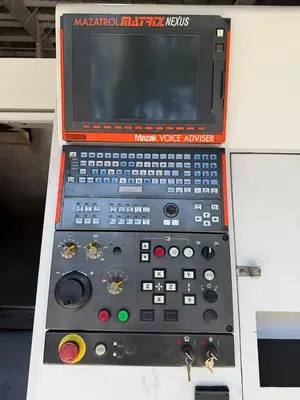

Mazatrol Matrix Nexus CNC Control
Rigid Tapping

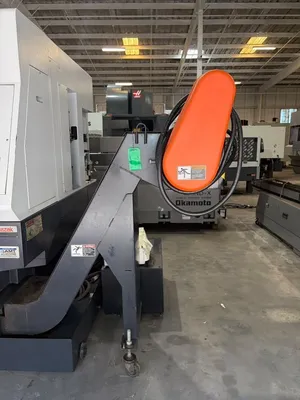

Coolant Tank

Capacity:
Max Turning Diameter: 14.96″
Max Turning Length: 19.84″
Max Swing Over Bed: 26.57″
Max Bar Capacity: 3.03″

Travels:
X Axis Travel: 9.05″
Y Axis Travel: 4.00″ ( ±2.0″ )
Z Axis Travel: 22.63″
C Axis: 360° (0.001°)

Feedrate:
Rapid Traverse X Axis: 1,181 IPM
Rapid Traverse Y Axis: 827 IPM
Rapid Traverse Z Axis: 1,299 IPM

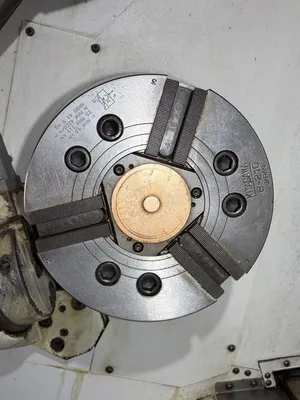

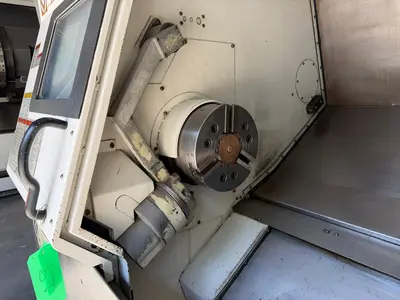

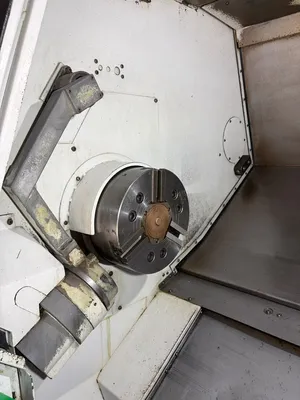

Spindle:
Spindle Bore: 3.46″
Spindle Nose: A2-8
Spindle Speed: 4,000 RPM
Spindle Power: 35 HP

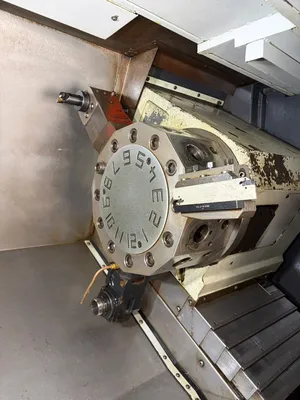

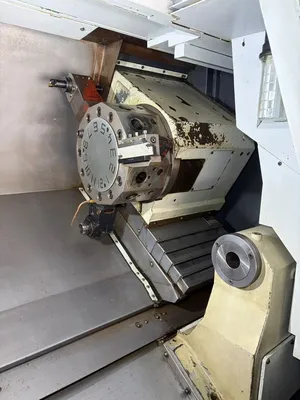

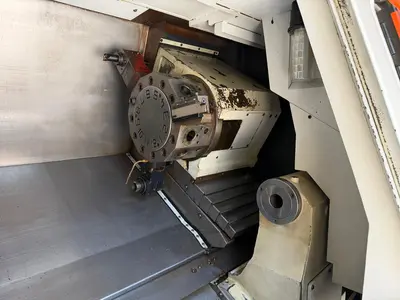

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.2 Seconds
Milling Spindle Speed: 4,500 RPM
Milling Spindle Power: 7.5 HP
Boring Bar Max Shank Diameter: 1.57″
Turning Tool Shank Size: 1.00″

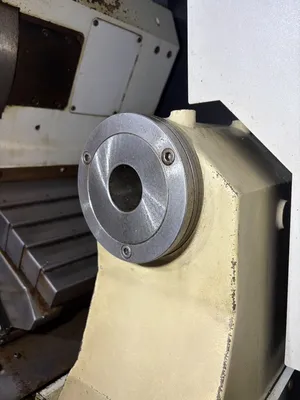

Tailstock:
Tailstock Type: Programmable NC Servo Tailstock
Tailstock Taper: MT-4
Tailstock Travel: 21.65″

General:

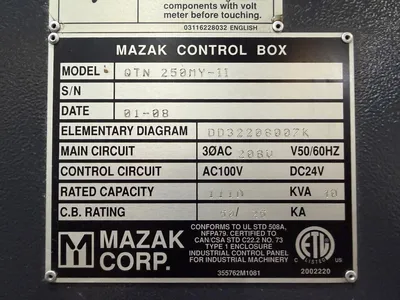

Power Source: 208V / 50–60 Hz / 3-Phase / 40 kVA
Overall Dimensions: 112″ × 73″ × 74″ High Approx.
Weight: 11,500 lbs. Approx.
