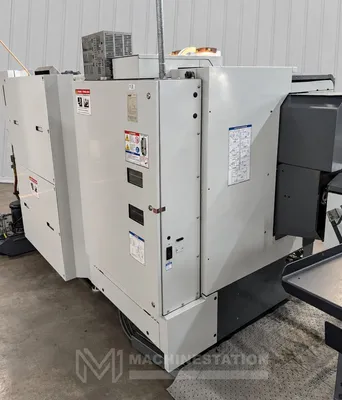

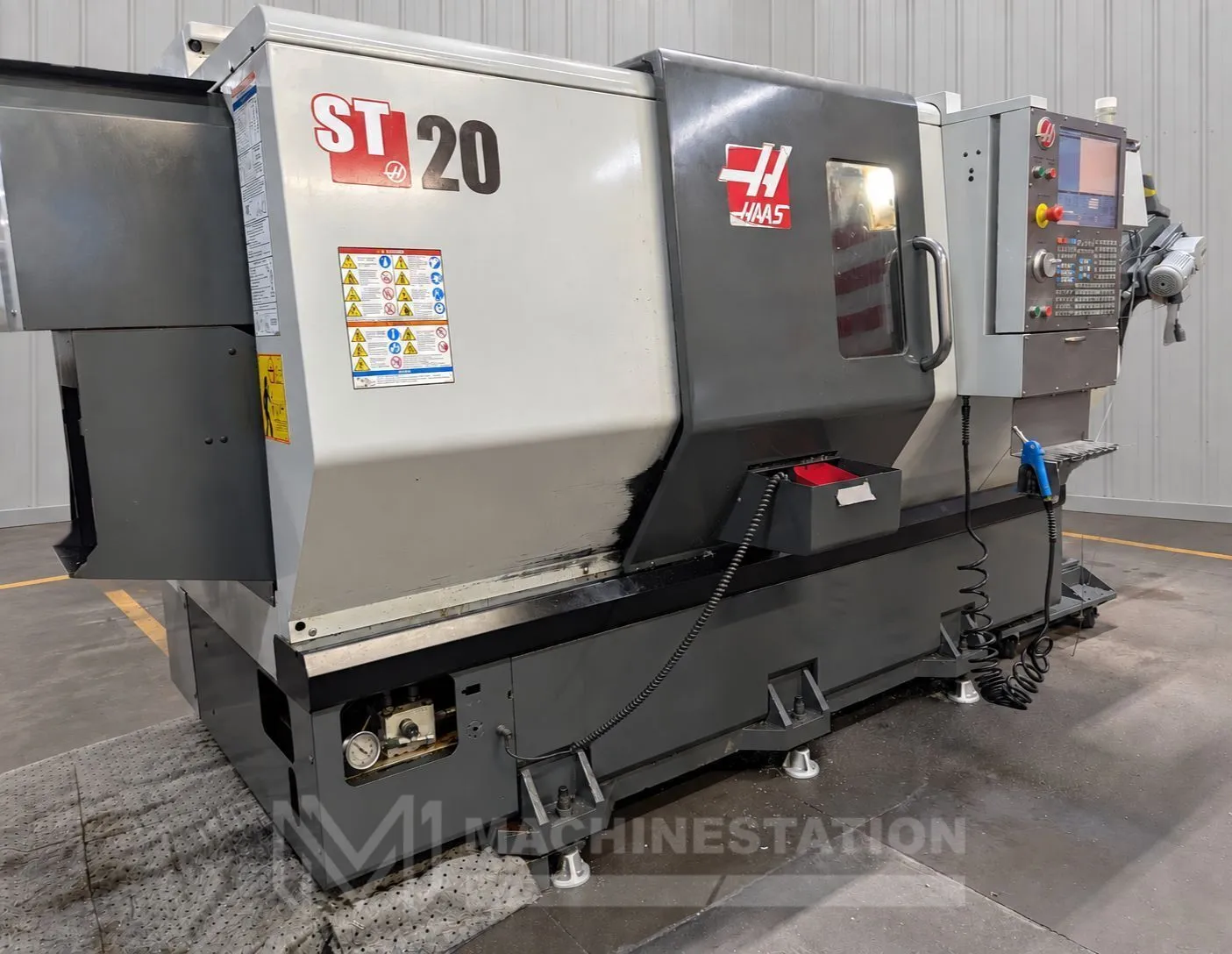

USED 2013 HAAS ST-20

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

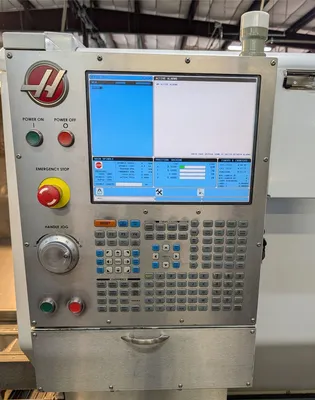

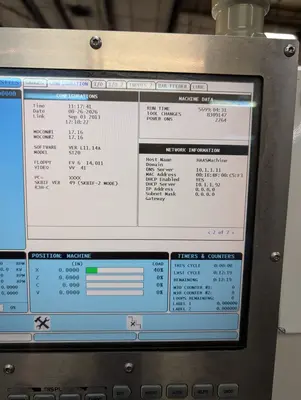

Haas CNC Control
A2-6 Spindle Nose
Rigid Tapping
Coolant Tank
Note: Tool Holders Are Not Included With The Machine

Capacity:
Maximum Turning Diameter: 11.80 inch
Maximum Swing Over Bed: 21.0 inch
Maximum Turning Length: 22.5 inch
Maximum Bar Capacity: 2.00 inch

Travels:
X-Axis Travel: 8.4 inch
Z-Axis Travel: 22.5 inch

Feedrate:
Rapid Traverse X-Axis: 945 IPM
Rapid Traverse Z-Axis: 945 IPM
Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.5 inch
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP

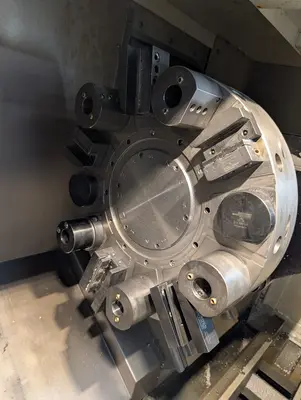

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Turret Type: VDI 40 (Live Tool)

General:
Air Requirement: 4 scfm @ 100 psi

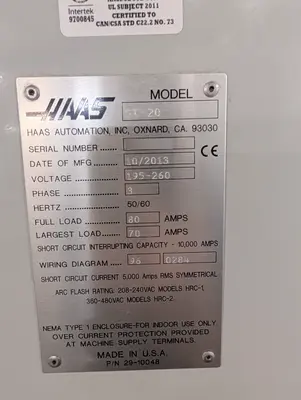

Power Source: AC 195V – 260V / 3-Phase / 50/60 Hz
Machine Dimensions: 142.5 inch × 90 inch × 92 inch High
Machine Weight: 8,820 lbs Approx.
