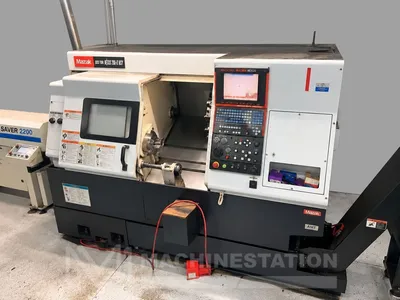

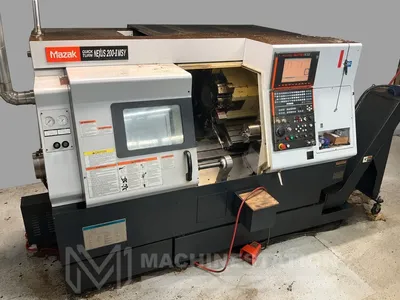

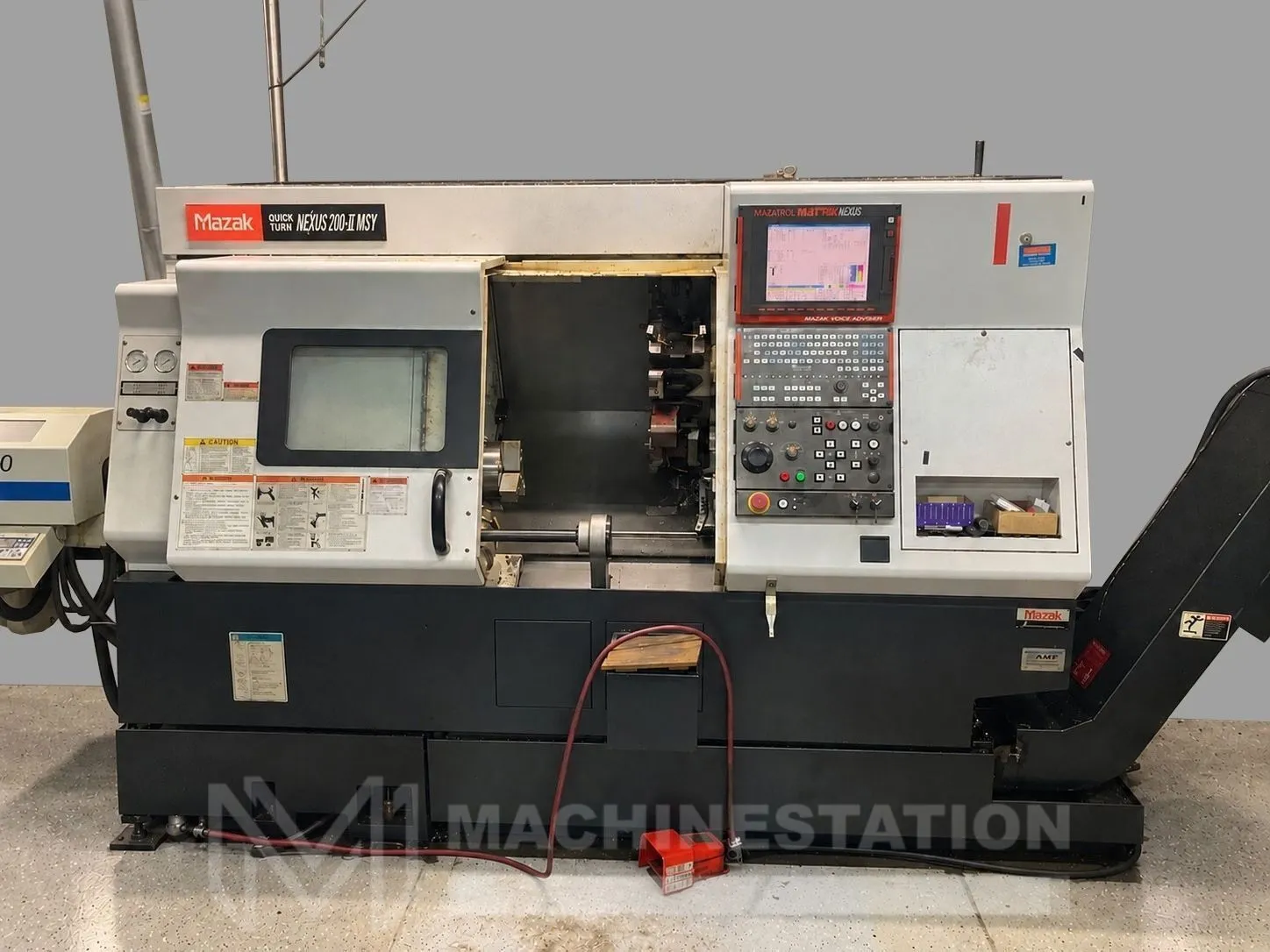

USED MAZAK QUICK TURN NEXUS 200-II MSY

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

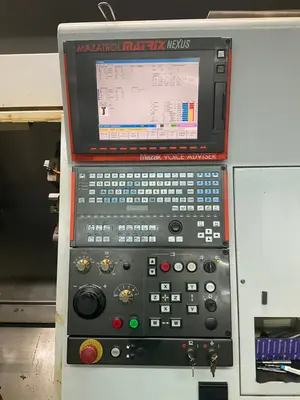

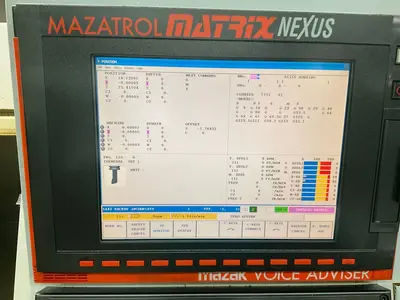

Mazatrol Matrix Nexus CNC Control
Servo Controlled C Axis On Both Spindles
Coolant Tank
Automatic Lubrication Unit
Note: Tool Holders Are Not Included With The Machine

Capacity:
Max Swing: 26.57 inch
Swing Over Carriage: 13.78 inch
Max Machining Diameter: 14.96 inch
Max Machining Length: 21.18 inch
Distance Between Spindle Faces: 22.64 inch
Max Bar Capacity: 2.56 inch

Travels:
X Axis Travel: 9.06 inch
Y Axis Travel: 3.94 inch
Z Axis Travel: 22.64 inch
W-Axis Stroke (Sub Spindle): 23.03 inch

Feedrate:
Rapid Traverse X Axis: 1,181 IPM
Rapid Traverse Y Axis: 827 IPM
Rapid Traverse Z Axis: 1,299 IPM
Rapid Traverse C Axis: 555 RPM

Main Spindle:
Chuck Size: 8 inch
Spindle Nose: A2-6
Spindle Bore: 3.0 inch
Max Spindle Speed: 5,000 RPM
Spindle Motor: 35 HP / 30 HP (30-Minute / Continuous)

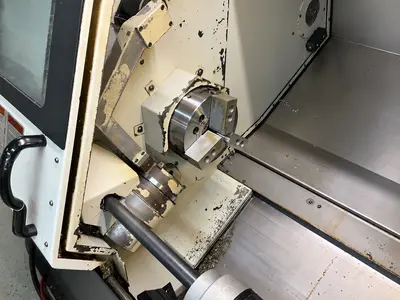

Second Spindle:
Chuck Size: 6 inch
Max Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP

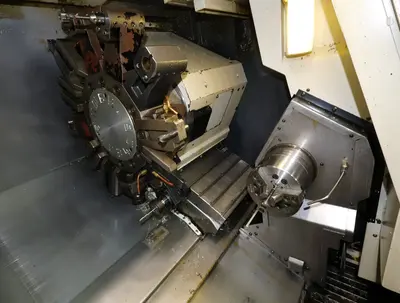

Turret:
Turret Capacity: 12 Stations
Turning Tool Shank: 1 inch
Boring Bar Shank Diameter: 1.57 inch
Turret Indexing Time: 0.2 Sec.
Maximum Rotary Tool Speed: 4,500 RPM
Rotary Tool Spindle Motor: 7.5 HP

General:
Power Source: 41.6 kva / 50/60 Hz / 3-Phase
Overall Dimensions: 112.8 inch x 70.1 inch x 72.44 inch High

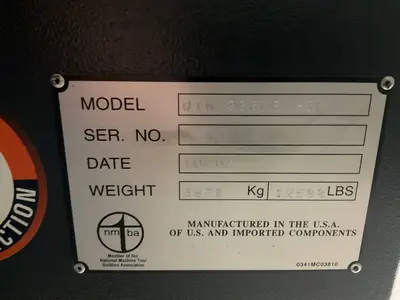

Machine Weight: 12,500 lbs.
